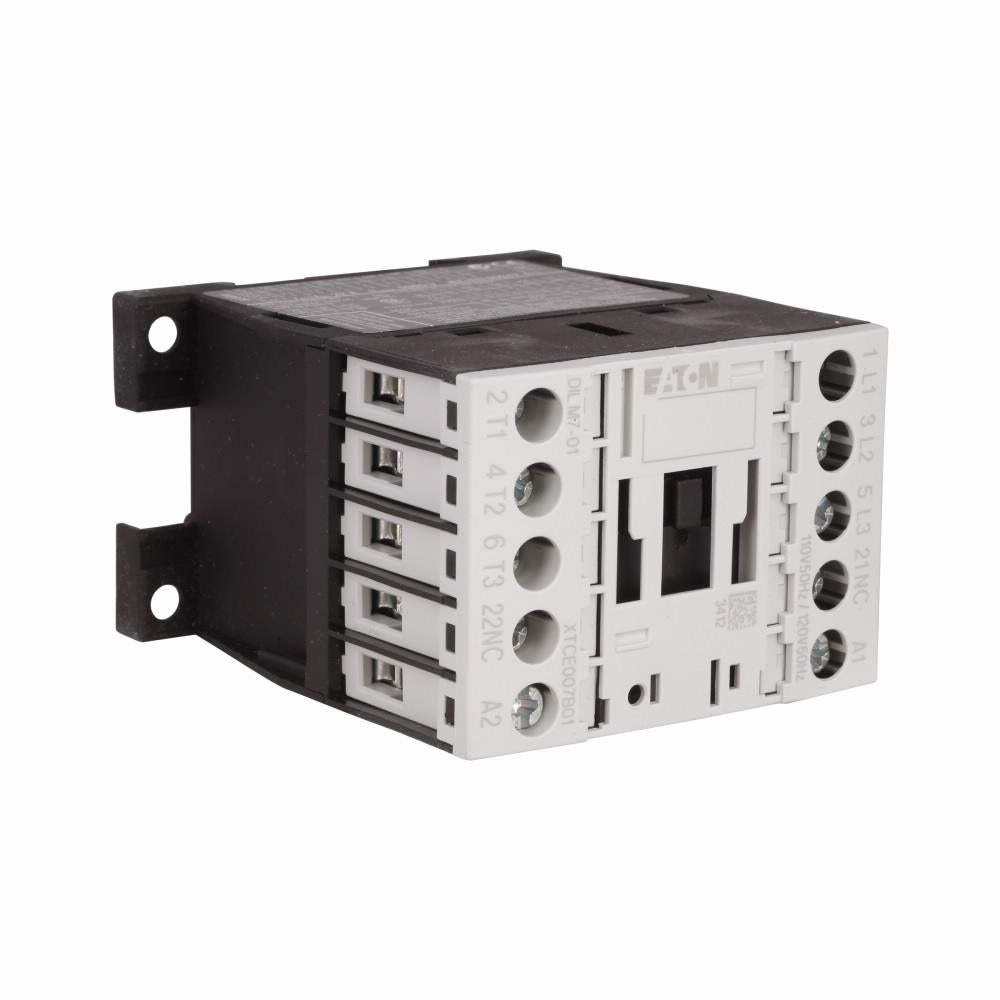

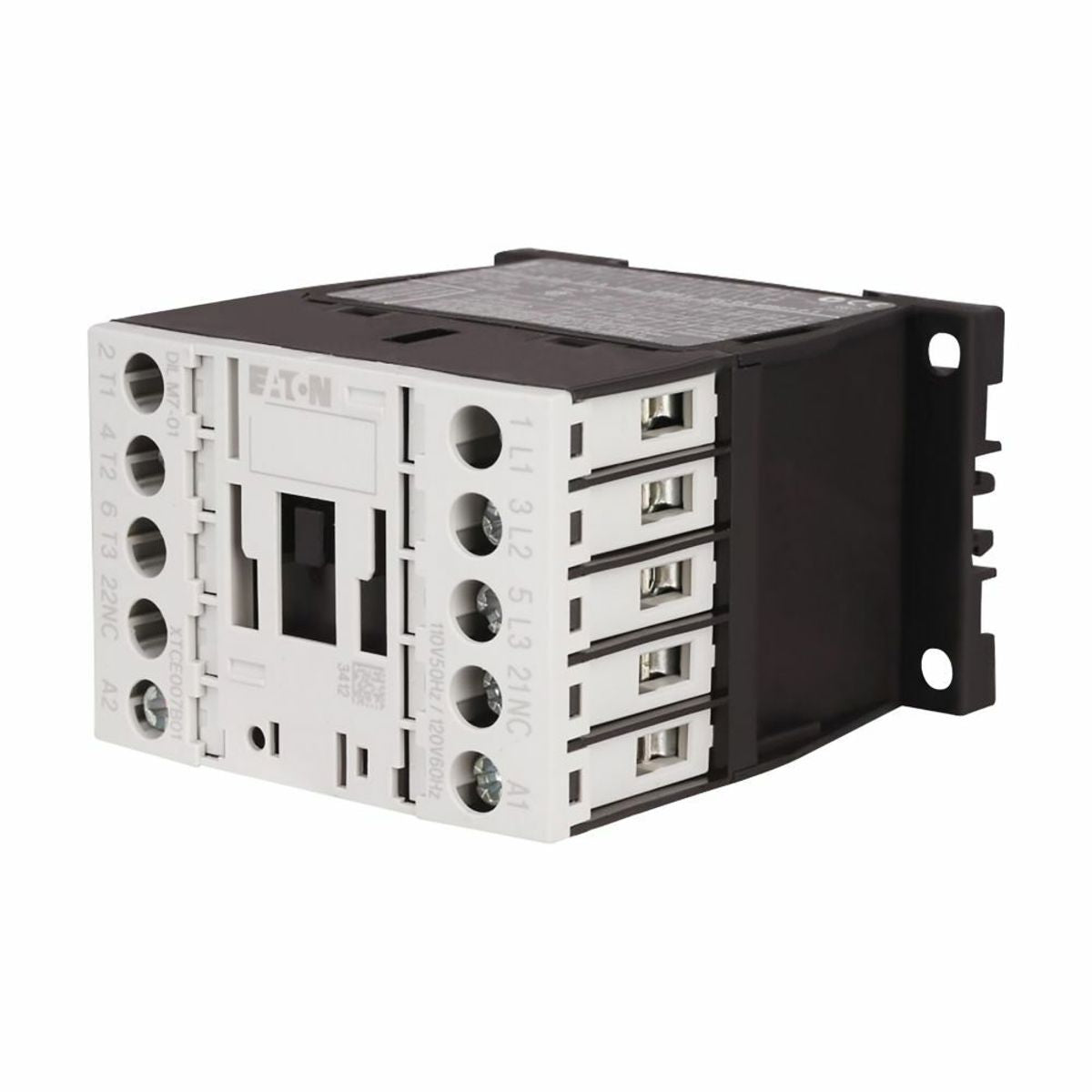

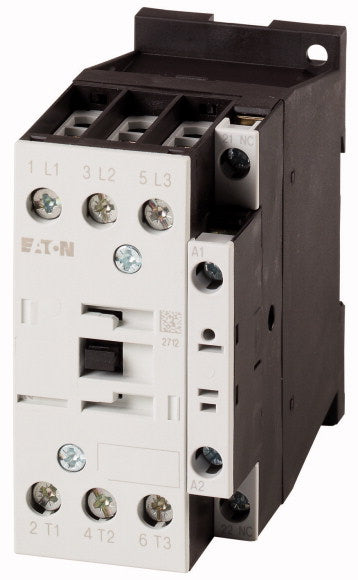

Eaton XTCE032C01TD XT IEC Contactor 32A 24-27 Vdc 1NC 45 mm

Product Description

The EATON XTCE032C01TD is a powerful and versatile XT IEC contactor. This contactor has a coil voltage of 24-27 Vdc and a maximum load current of 32A. It features a 1NC contact configuration and is suitable for global use. The compact design makes it ideal for various applications.

• Coil Voltage: 24-27 Vdc
• Contact Configuration: 1 NC
• Maximum Load Current: 32 A

Product Highlights

The XT IEC contactors are efficient and can be combined with electronic overload relays and bimetal relays.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: XTCE032C01TD
• Country of Origin: Romania

Technical Specifications

• Catalog Number: XTCE032C01TD
• Manufacturer: Eaton
• Brand: Eaton
• Country of Origin: Romania
• Made in USA: No
• Application: Elec Assemblies, Panels & EOEM - Electrical Assemblies and EOEMs - Other
• Coil Voltage: 24-27 VDC
• Contact Configuration: 1NC
• Standard: IEC 60947,UL Listed,EN 60947,CSA Certified,CE Marked,RoHS Compliant
• GTIN: 04015082773069
• Item Type: Contactors
• Mounting Type: DIN Rail/Panel
• Series: XTCE
• Size: 45 mm
• Terminal Type: Screw
• Type: C-Frame Full Voltage Non-Reversing
• Number of Poles: 3
• Coil Power Rating: 3 hp at 115 VAC 1 ph, 5 hp at 200/230 VAC 1 ph, 10 hp at 200/230 VAC 3 ph, 20 hp at 460 VAC 3 ph, 25 hp at 575 VAC 3 ph
• Product Length/Depth: 4 in
• Product Height: 1.5 in
• Product Width: 3.5 in
• Compliances: RoHS Compliant CE Marked
• Certifications: UL Listed CSA Certified IEC 60947 EN 60947
• Catalog Notes: Screw terminals (6-65A); 5 mm (80-150A); no lugs (185-2000A)
• Product Type: Contactors
• Amperage Rating: 32A
• HP rating - max: 3, 5, 5/ 10, 10, 20, 25 hp (1/3PH @115,200,230/200,230,460,575 V)
• Number of poles: Three-pole
• Terminals: Screw terminals
• Continuous Ampere Rating: 32 A
• Operation: Non-reversing
• HP ratings 230V: 10
• HP ratings 460V: 20
• NO: 0
• NC: 1
• Current Type: DC
• Features: Non-Reversing, Reversing
• Mounting Style: Panel Mount
• Number of Phases: 1
• Current Rating: 32 A
• IEC Utilization Category: AC-1
