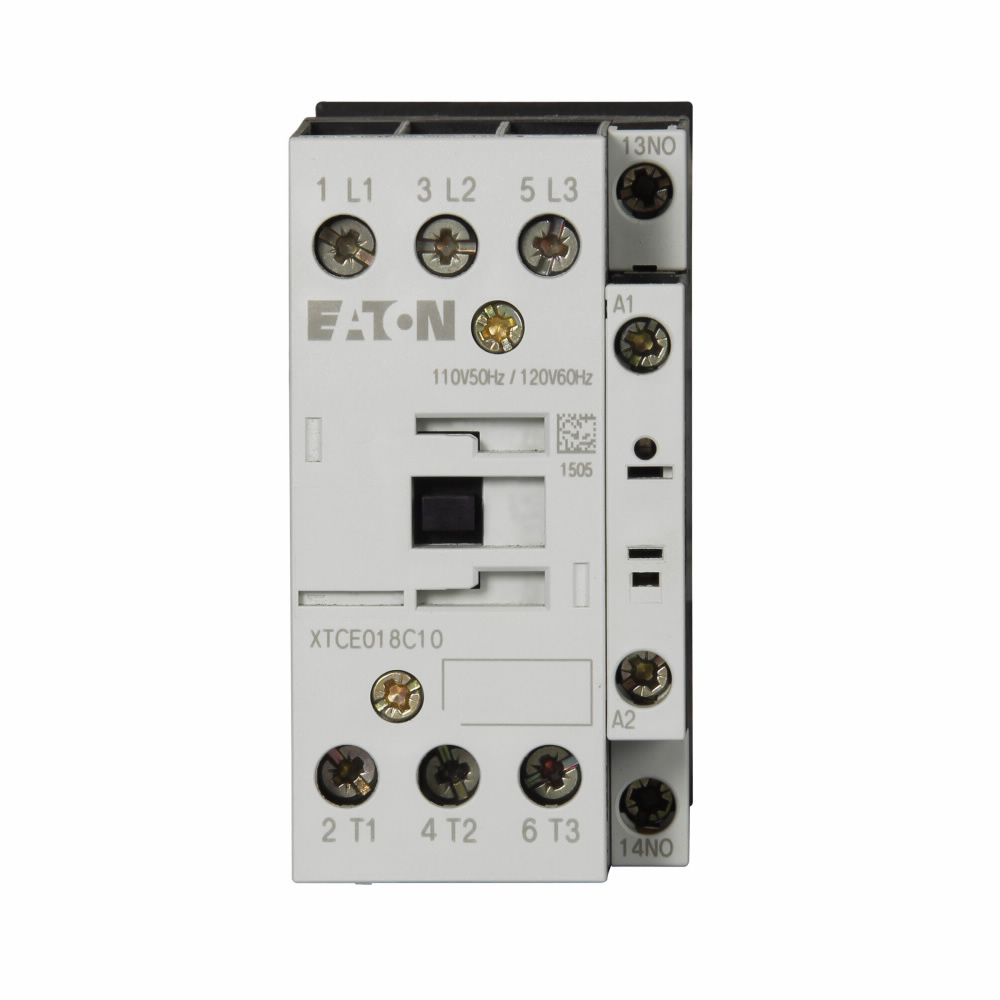

Eaton XTCE018C10TD 3-Pole 18 Amp 415/440 VAC 1NO Full Voltage Non-Reversing Contactor

Product Description

The Eaton XTCE018C10TD is a full voltage non-reversing contactor designed for electrical applications. This three-pole contactor is rated for eighteen amps and operates on a coil voltage of twenty-four to twenty-seven volts DC. It is suitable for use in electrical assemblies, panels, and various OEM projects.

• Three-pole design with one normally open contact
• Rated for eighteen amps and suitable for various voltage ratings
• Screw terminal connections for secure electrical contact

Product Highlights

This contactor is ideal for HVAC, industrial control, and motor control applications, providing reliable performance and ease of installation.

Product Information

Standard Information

• Brand: Eaton
• Manufacturer Part Number: XTCE018C10TD

Technical Specifications

• Catalog Number: XTCE018C10TD
• Amperage: 18 Amp
• Coil Voltage: 24 - 27 VDC
• Power Rating: 5 kW at 220/230 V, 7.5 kW at 380/400 V, 10 kW at 415 V
• Contact Configuration: 1 NO
• Number of Poles: 3
• Dimensions: 2 inches H x 4 inches L
• Temperature Rating: -25 to 60 degrees C
