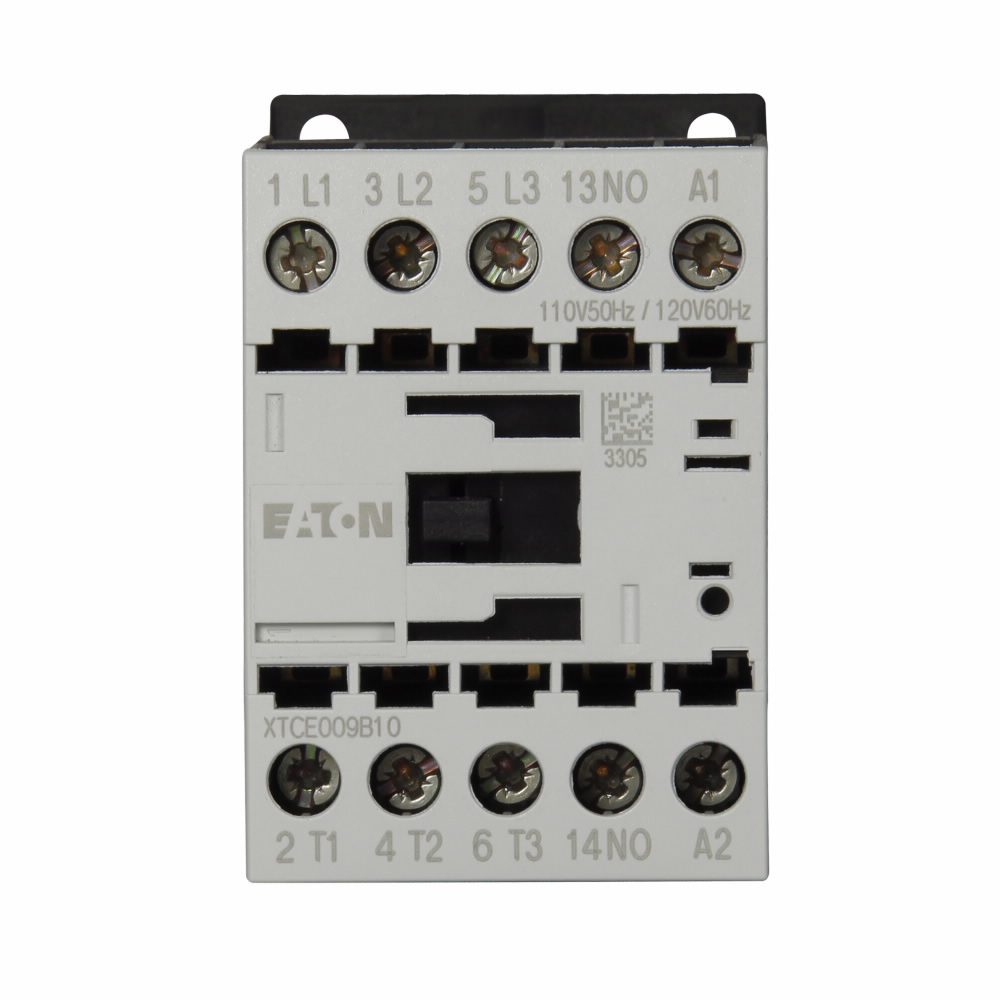

Eaton XTCE009B10TD 3-Pole 9 Amp 415/440 VAC Full Voltage Non-Reversing Contactor

Product Description

The Eaton XTCE009B10TD is a three-pole, full voltage non-reversing contactor rated for nine amps at 415 to 440 VAC. This device is primarily used in commercial and industrial applications for controlling motors and other loads. It features screw terminals for easy wiring and a compact design that fits on standard DIN rails.

• Three-pole design for versatility in control applications
• Coil voltage of 24 VDC for compatibility with various control circuits
• Compact frame size of 45 mm for space-efficient installation

Product Highlights

This contactor is suitable for global use and supports a wide range of applications, making it an essential component for control systems.

Product Information

Standard Information

• Brand: Eaton
• Manufacturer: Cutler-Hammer / Eaton

Technical Specifications

• Catalog Number: XTCE009B10TD
• Coil Voltage: 24 VDC
• Maximum Load Current: 9 Amp
• Number of Poles: 3
• Contact Configuration: 1 NO
• Frame Size: 45 mm
• Dimensions: 1.77 in W x 2.95 in D x 2.68 in H
• Temperature Rating: -13 to 122 degrees F
• Mounting Type: DIN Rail/Panel
• Standards/Approvals: CE Marking, CSA Certified, IEC 60947, UL Listed
