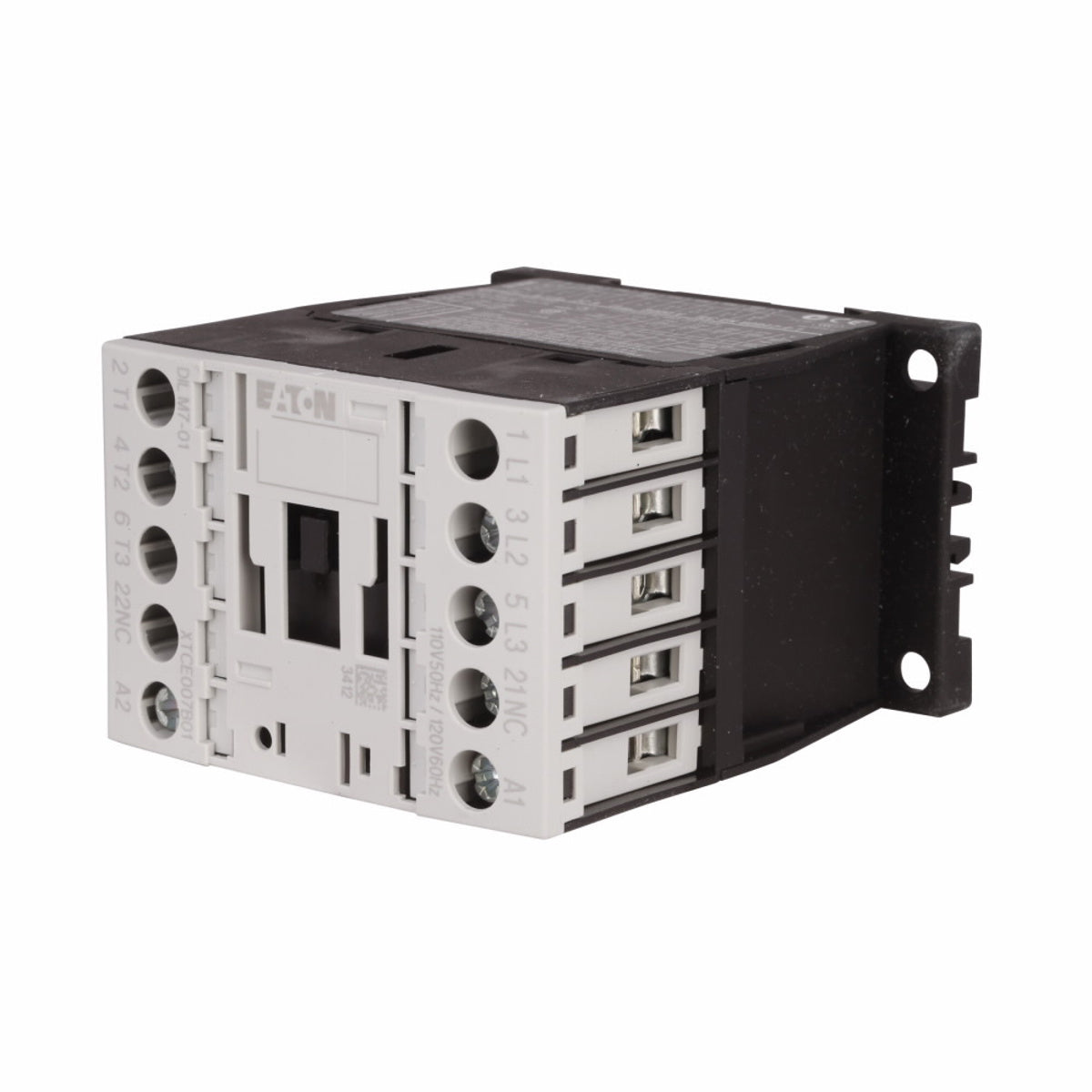

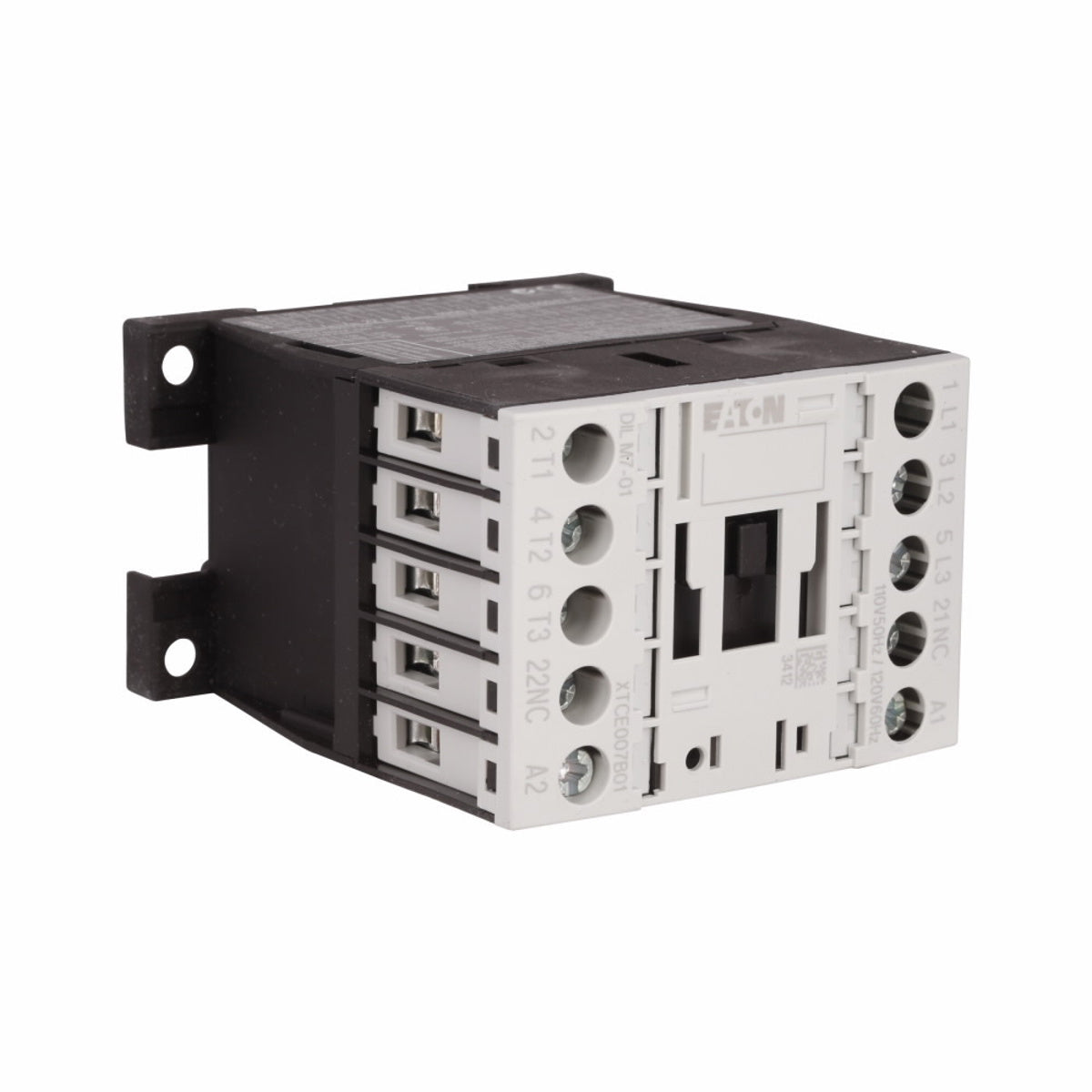

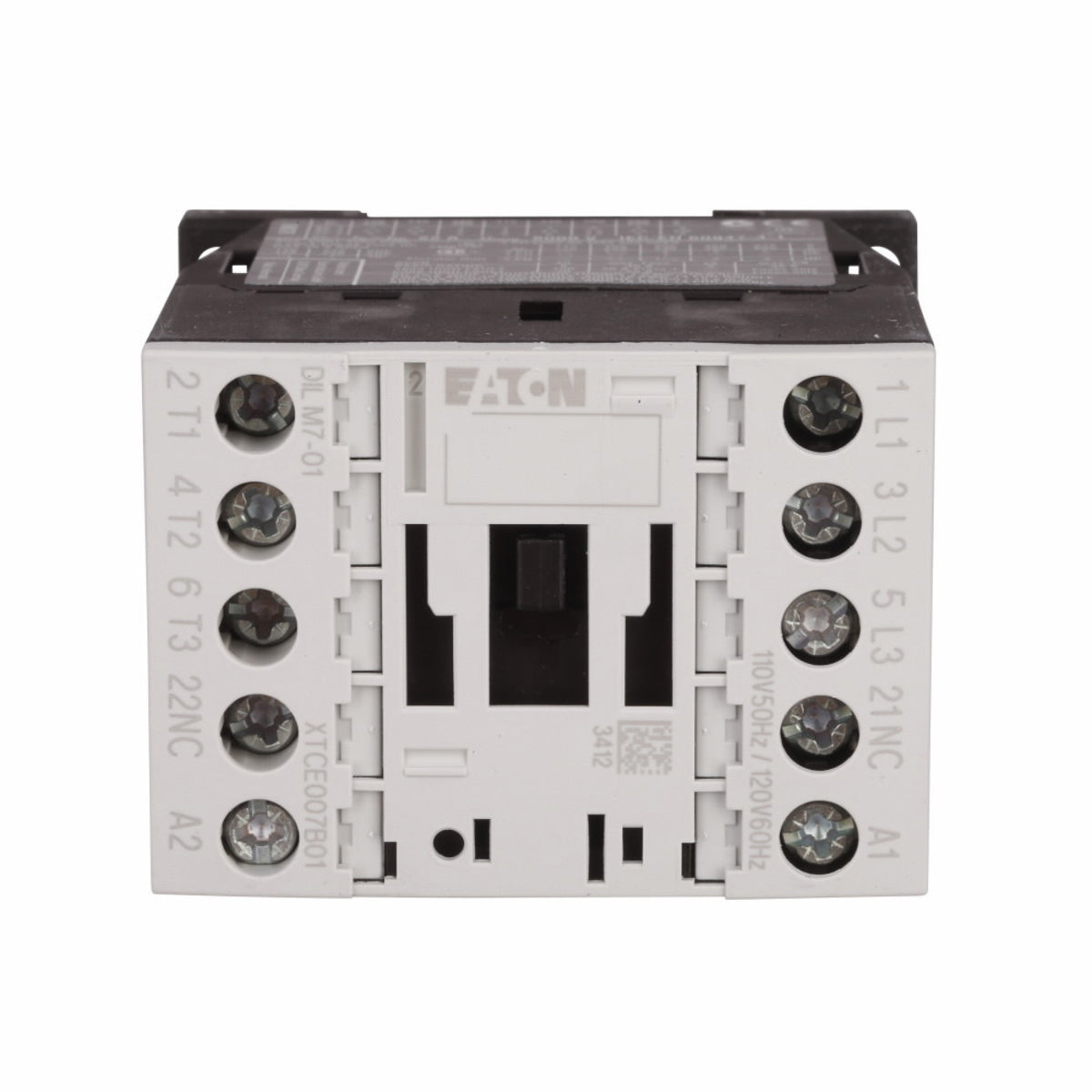

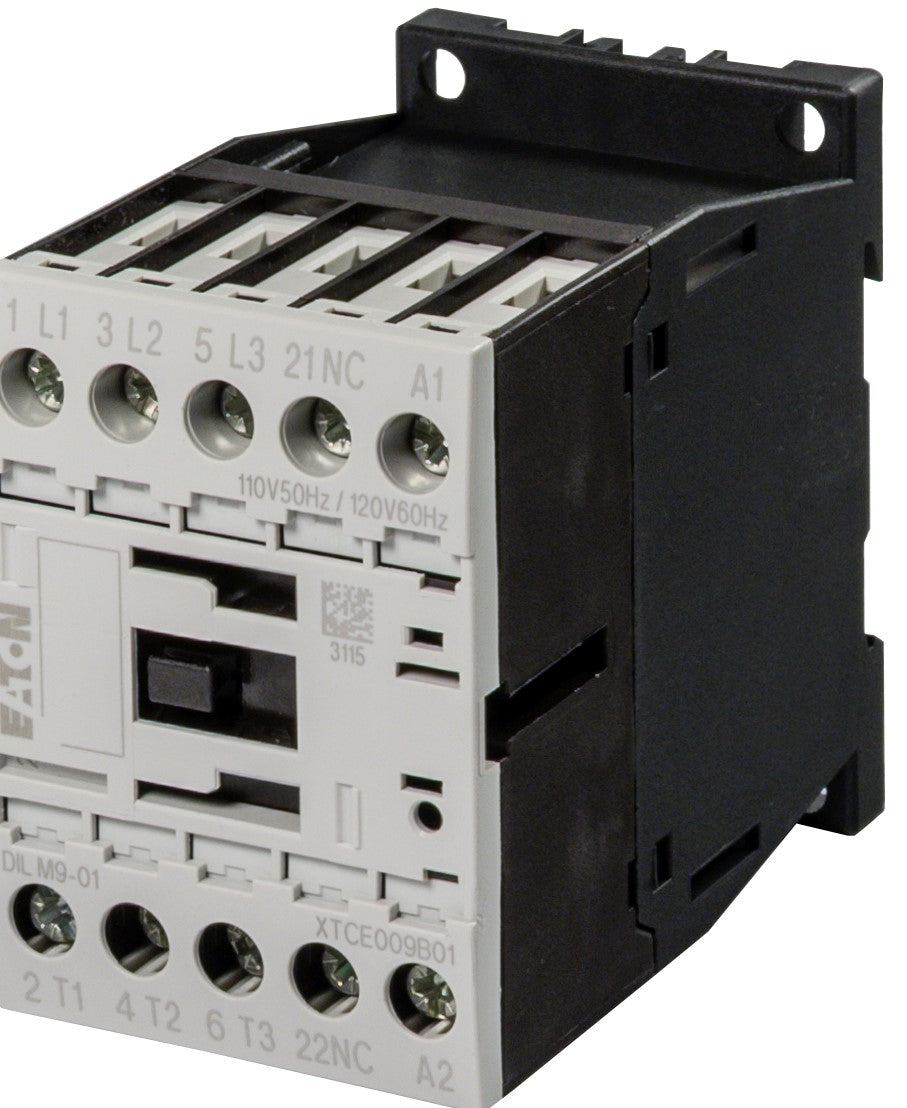

Eaton XTCE009B01A XT IEC contactor 9 A 110-120 Vac (45 mm)

Product Description

Eaton XTCE009B01A is an XT series B-frame full-voltage non-reversing IEC contactor with a 110-120 Vac coil and a 9 A maximum load current. The three-pole device includes one normally closed auxiliary contact (1NC), screw terminals, and a 45 mm frame for DIN-rail or panel mounting. It meets UL, CSA, IEC 60947 and EN 60947 standards and supports motor ratings up to 7.5 hp depending on voltage and phase.

• Coil voltage: 110-120 Vac, 50/60 Hz; maximum load current: 9 A; three-pole configuration with 1 NC auxiliary contact
• 45 mm B-frame size with screw terminals; DIN rail or panel mount; full-voltage non-reversing operation
• Certifications and standards: UL Listed, CSA Certified, IEC 60947, EN 60947, CE marked, RoHS compliant

Product Highlights

B-frame 3-pole IEC contactor, 110-120 Vac coil, 9 A rating, 45 mm frame

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: XTCE009B01A
• Country of Origin: Romania

Technical Specifications

• Manufacturer: Eaton
• Manufacturer Part Number: XTCE009B01A
• Series: XTCE
• Type: B-frame full-voltage non-reversing IEC contactor
• Coil Voltage: 110-120 Vac, 50/60 Hz
• Frequency Rating: 50/60 Hz
• Number of Poles: 3
• Contact Configuration: 1 NC (one normally closed auxiliary contact)
• Maximum Load Current: 9 A
• Frame Size: 45 mm
• Terminal Type: Screw terminals
• Mounting Type: DIN rail or panel
• Horsepower Ratings: 0.5 hp @115 Vac (1 ph); 1 hp @200 Vac (1 ph); 1.25 hp @230 Vac (1 ph); 3 hp @200/230 Vac (3 ph); 5 hp @460 Vac (3 ph); 7.5 hp @575 Vac (3 ph)
• Standards/Certifications: UL Listed; CSA Certified; IEC 60947; EN 60947; CE marked; RoHS compliant
• Surge Suppression: Embedded surge suppressor
• Electrical Operating Durability: ~1000 operations (AC-3 400V Ie); ~300 operations (AC-4 400V Ie); ~800 operations (AC-1 400V Ie)
• Mechanical Operating Durability: Up to 10,000,000 cycles (standard test conditions)
• Operating Temperature Range: -13 �F to +122 �F
• Country of Origin: Romania
• GTIN: 04015082767228
• Dimensions (H x W x D): Approximately 1.77 x 1.77 x 2.95 inches
