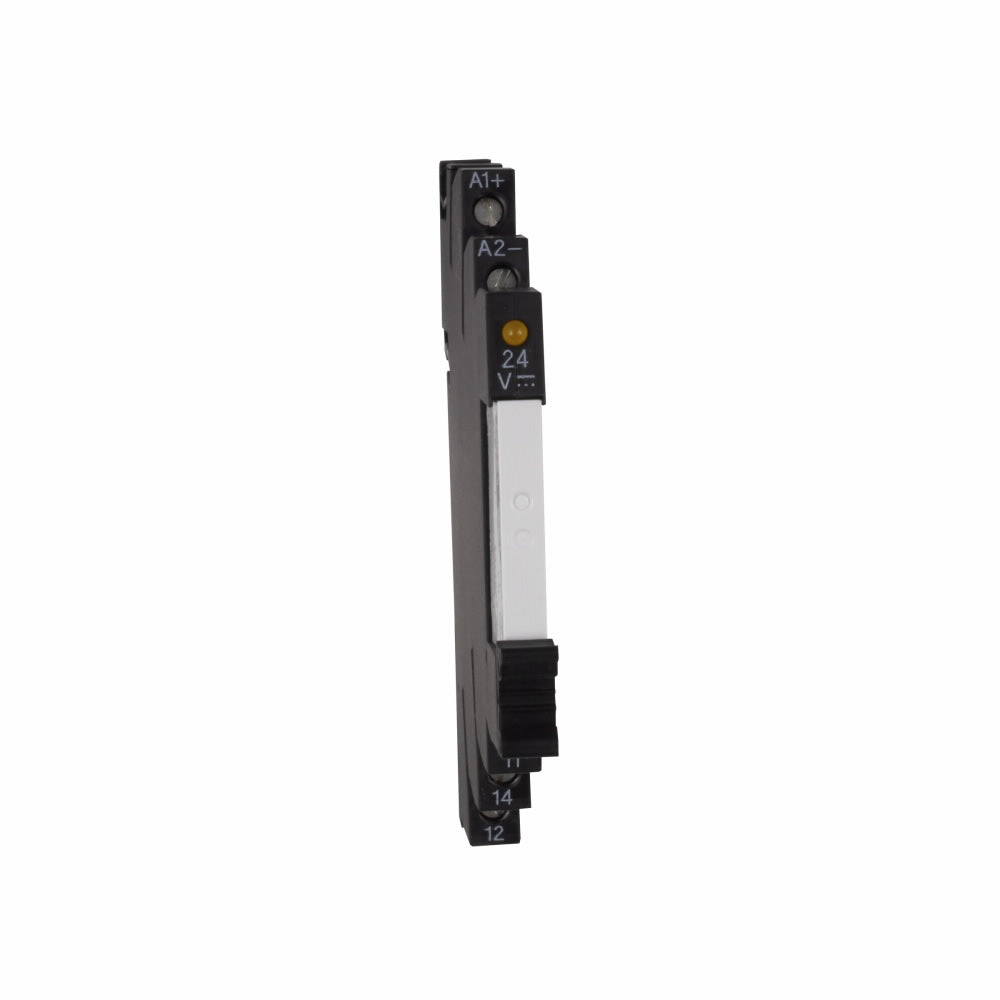

EATON XRU1D24 RELAY BLK TERM 6A SPDT 24VDC DIN RAIL

Product Description

The EATON XRU1D24 is a relay block terminal rated for six amps and operates at twenty-four volts direct current. This model is designed for DIN rail mounting and is part of the XR series of relays.

• Screw terminal technology for easy wiring
• Compact size ideal for space-limited applications
• IP67 rated for environmental protection

Product Highlights

The EATON XRU1D24 provides reliable switching for applications requiring higher continuous load current than typical miniature relays can handle. It is suitable for automation and control projects where robust performance and durability are essential.

Product Information

Standard Information

• Manufacturer: EATON
• MPN: XRU1D24

Technical Specifications

• Coil Voltage: 24 VDC
• Contact Form: SPDT
• Amperage Rating: 6 A
• Mounting Type: DIN Rail
• Enclosure Type: IP67
• Dimensions: 3.15 in L x 0.24 W x 3.7 in H
• Temperature Rating: -4 to 140 deg F
• Standards/Approvals: CSA Certified, UL Listed
