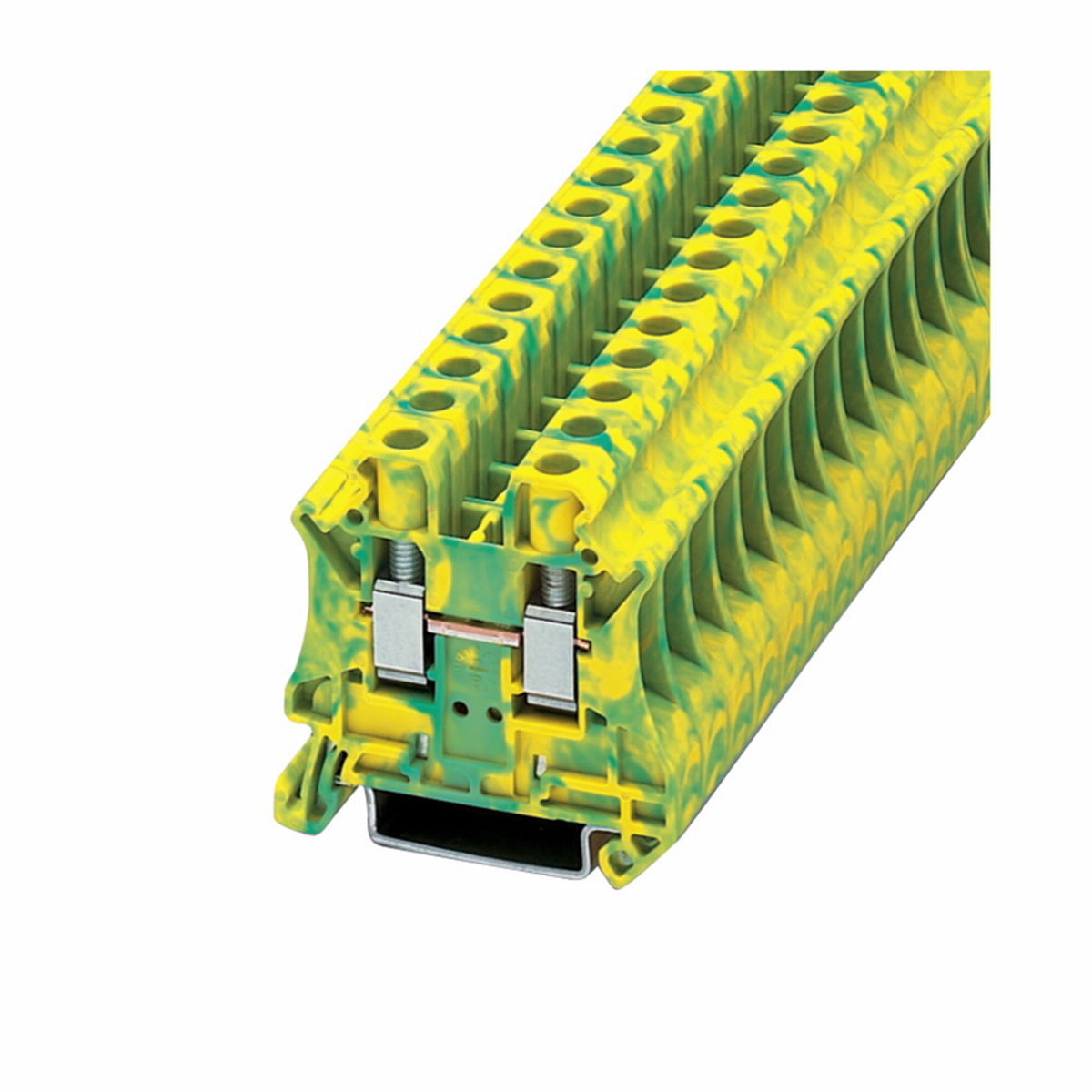

Eaton XBUT6PE XB IEC Terminal Block 24 to 8 AWG

Product Description

The Eaton XBUT6PE is an XB IEC terminal block with a screw connection, single-level ground block. Designed for prolonged life under harsh conditions, it features universal accessories and provides maximum flexibility with easy installation. It has the same shape and pitch as a standard terminal block and easily snaps onto the DIN-rail.

• Screw connection single level ground block
• Designed to withstand harsh conditions
• Snaps onto DIN-rail for reliable mechanical and electrical contact

Product Highlights

The Eaton XBUT6PE terminal block is a reliable solution for wiring management, offering easy installation and secure connections in demanding environments.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: XBUT6PE
• Country of Origin: Germany

Technical Specifications

• Type: Ground
• Brand: Eaton
• Color: Green/Yellow
• Height: 2.17 Inch
• Length: 1.85 Inch
• Spacing: 8.2 mm
• Wire Size: 14-0 AWG
• Applications: Wiring Management and Devices
• Mounting Type: 35 mm DIN Rail
• Connection Type: Screw
• Catalog Number: XBUT6PE
• Manufacturer: Eaton
• Country of Origin: Germany
• Made in USA: No
• Application: Elec Assemblies, Panels & EOEM - Electrical Assemblies, Panels and EOEMs
• Standard: CSA Certified,UL Listed
• UPC: 782116904969
• GTIN: 00782116904969
• Item Type: Terminal block
• Series: IEC-XB
• Temperature Rating: -40 to 257 deg F
• Torque Rating: 1.5 to 1.8 N-m
• Wire Strip Length: 25/64 in
• Material: Polyamide 6.6
• Standards/Approvals: ATEX Compliant|CSA Certified|CE Marked|IEC 60947-7-1|EN 50 019|UL Recognized|cUL Listed|UL File No. E67464
• Product Length/Depth: 1.85 in
• Product Height: 2.17 in
• Product Width: 0.32 in
• Product Weight: 0.05 lb
• Certifications: UL Listed CSA Certified
• Product Type: Terminal block
