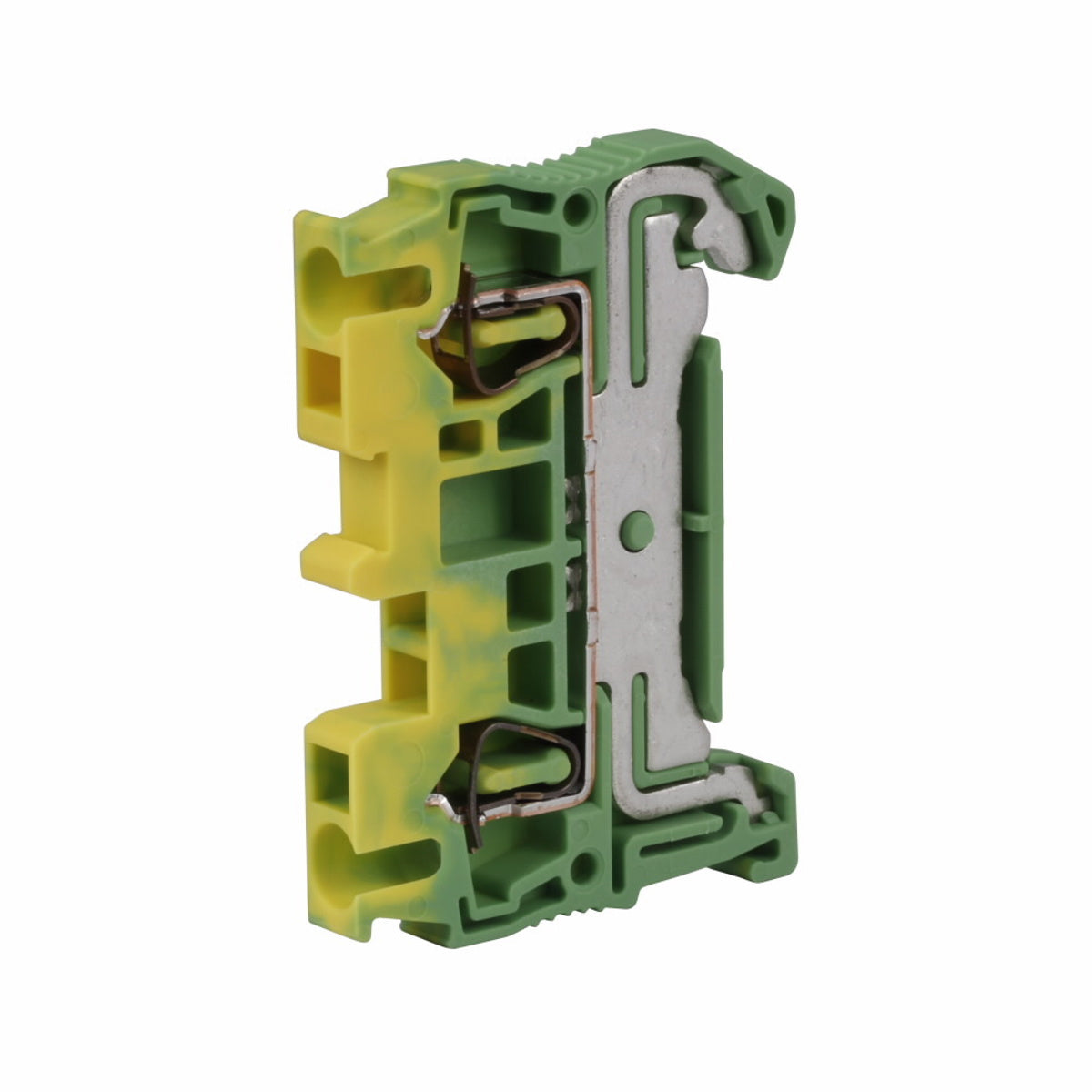

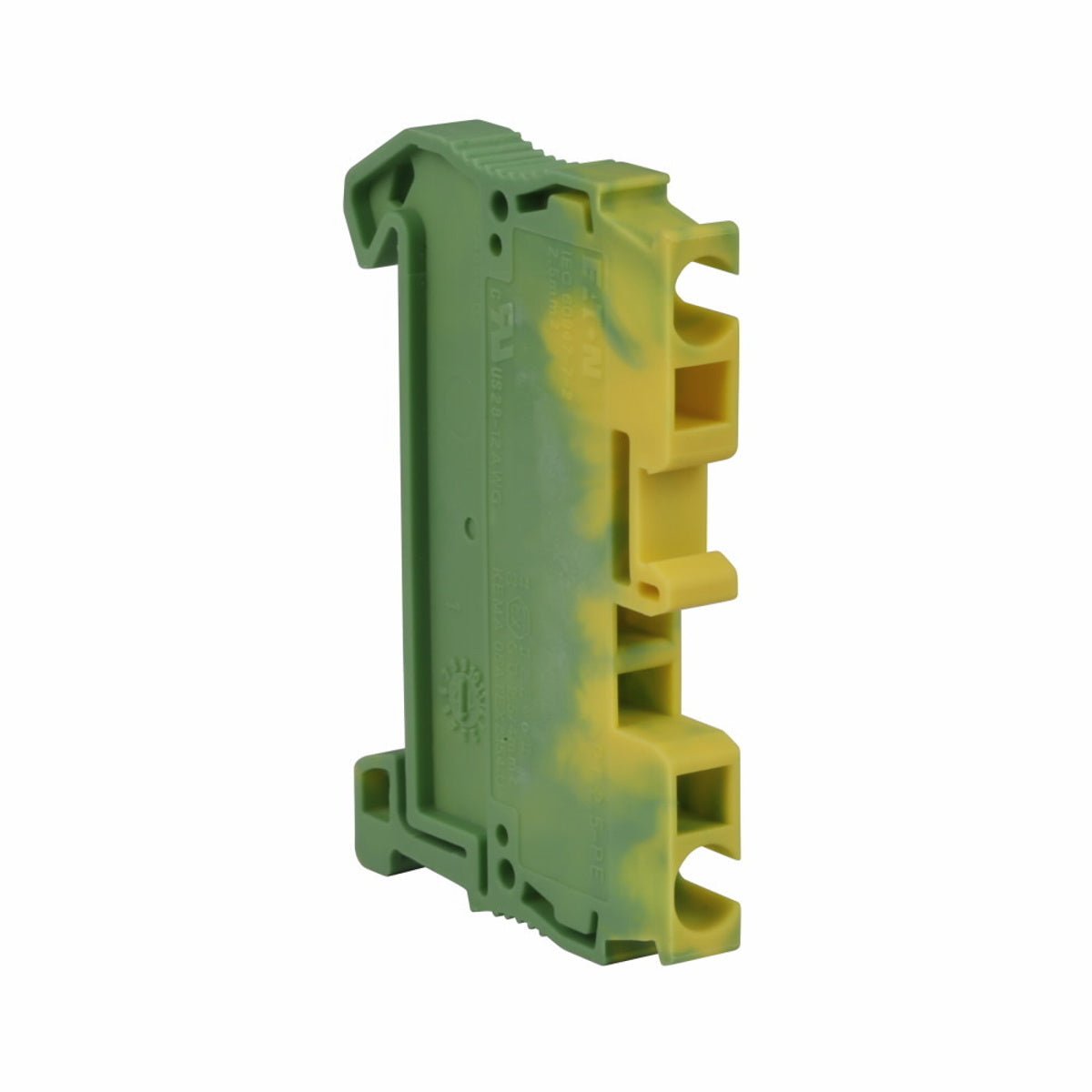

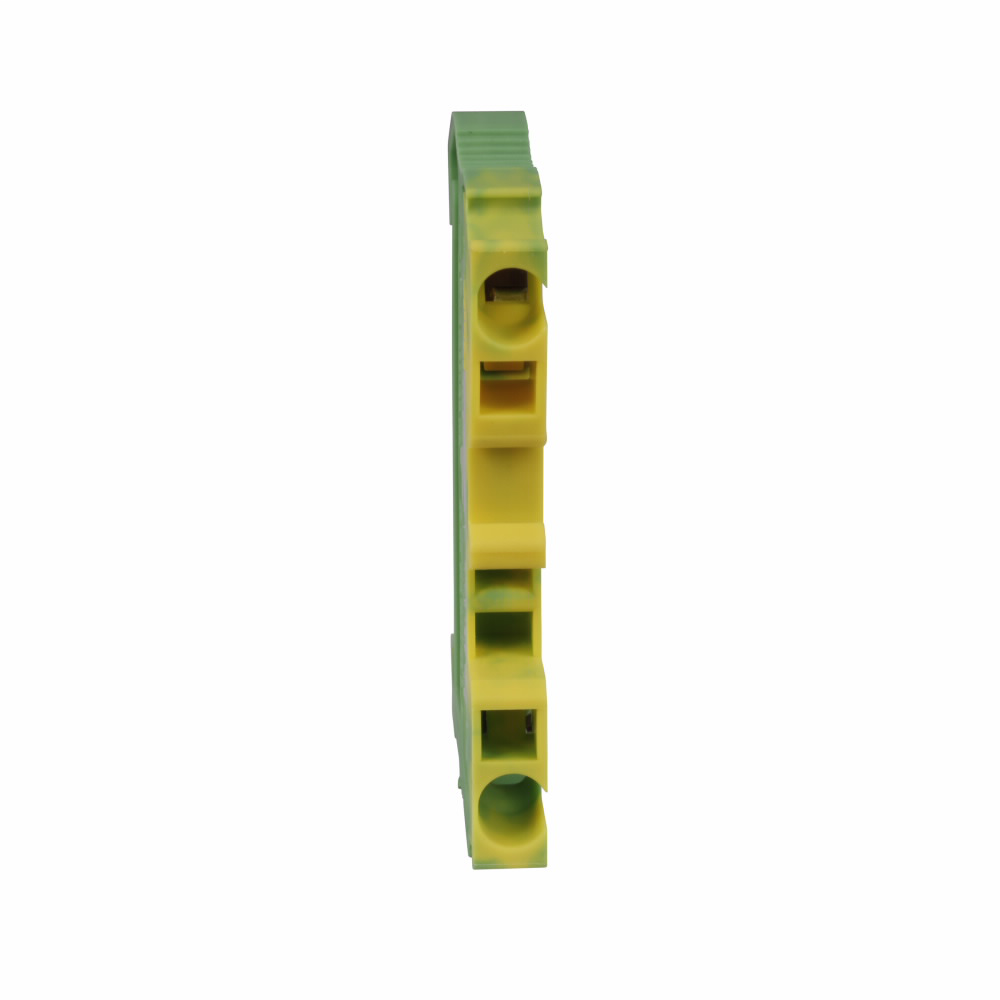

Eaton XBPT25PE ETN XBPT25PE 5.2MM SPRING CLIP GRO

Product Description

The Eaton XBPT25PE is an IEC terminal block designed for reliability in electrical connections. This terminal block offers a spring cage connection, suitable for wire sizes from 28 to 12 AWG. The blocks are ideal for use in electrical assemblies, panels, and original equipment manufacturers.

• Wire size compatibility: 24-12 AWG, UL 26-12 AWG
• Country of Origin: Germany
• Temperature rating: -40 to 257 degrees Fahrenheit

Product Highlights

This terminal block meets CSA and UL standards. The small dimensions allow for flexible installation on DIN Rails, making it efficient for space management in control systems.

Product Information

Standard Information

• Manufacturer: Eaton
• Catalog Number: XBPT25PE

Technical Specifications

• Type: IEC-XB Series
• Length: 1.91 inches
• Width: 0.2 inches
• Weight: 0.02 lb
• Conductor Size: 12 AWG
• Material: Polyamide 6.6
• Connection Type: Spring Cage
• Spacing: 5.2 mm
