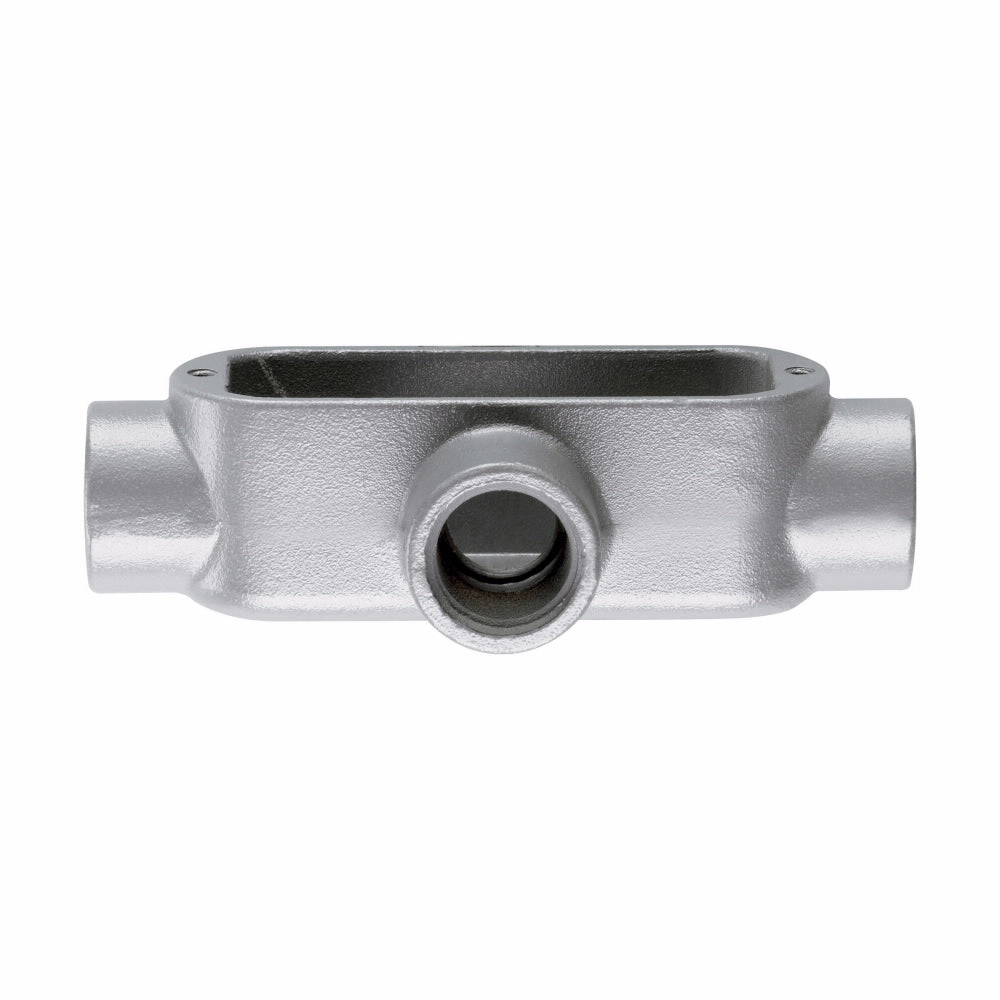

Eaton X125M Crouse-Hinds Condulet Type X Outlet Body 1-1/4 in Hub 5 Form

Product Description

The Eaton Crouse-Hinds X125M is a Type X conduit outlet body designed for rigid or IMC conduit systems. It features a 1-1/4 inch hub and four hubs. With a capacity of thirty-three cubic inches, it provides effective wire management in commercial and industrial applications.

• Constructed from durable malleable iron for impact resistance
• Hot dipped galvanized finish for corrosion resistance
• Integral bushings to protect wire insulation

Product Highlights

This unit is ideal for installations requiring pull outlets for conductors and splicing points. It is compatible with other manufacturer's conduit bodies, ensuring flexibility in electrical installations.

Product Information

Standard Information

• Manufacturer: Eaton
• Product Name: Crouse-Hinds X125M

Technical Specifications

• Application: For rigid/IMC conduit, serves as pull outlets for installing conductors, allows splices, applicable in commercial and institutional settings
• Connection Type: Threaded/Set Screw
• Dimensions: 9.1 in L x 4.43 in W x 2.55 in H
• Finish: Hot Dipped Galvanized
• Hub Size: 1-1/4 in
• Material: Malleable Iron
• Number of Hubs: 4
• Standards/Approvals: UL 514B, cUL Listed, CSA C22.2 No. 18, NEC Compliant, CEC Certified
• Type: Type X
