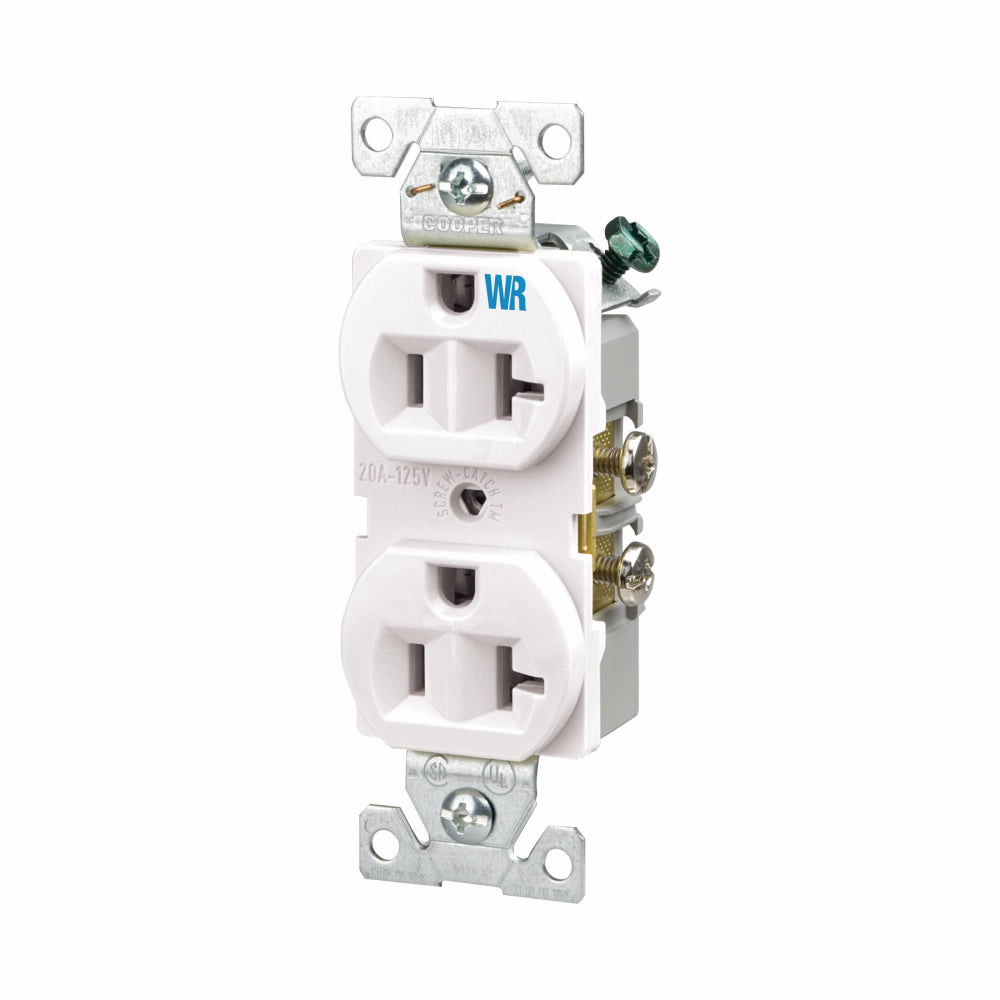

EATON WRBR20W CWD RECP WR DUPLEX 20A 125V

Product Description

EATON WRBR20W is a duplex weather-resistant straight blade receptacle for commercial and specification-grade applications. This receptacle operates at 125 VAC with a capacity of 20 A and includes two poles and three wires, featuring a NEMA 5-20R rating. It is suitable for indoor and non-residential settings. The receptacle complies with the 2014 NEC Article 406.9 requirements for installations in wet or damp locations, ensuring reliable performance in various environments.

• Compatible with 14 to 10 AWG wire terminals
• Constructed with nylon and PVC for durability
• Temperature rated from -4 to 158 degrees Fahrenheit

Product Highlights

This receptacle is designed to resist moisture and withstand harsh conditions. Its design includes side wire terminals that accept up to 10 AWG solid wire for easy installation, along with a patented built-in wire stripper for efficient setup.

Product Information

Standard Information

• Manufacturer: Eaton
• UPC: 03266466629

Technical Specifications

• Amperage Rating: 20 A
• Application: Indoor and Non-Residential Applications
• Color: White
• Dimensions: 4.19 inches H x 1.09 inches D
• Grade: Commercial/Specification
• Material: Nylon/PVC
• NEMA Rating: NEMA 5-20R
• Number of Poles: 2
• Number of Wires: 3
• Temperature Rating: -4 to 158 degrees Fahrenheit
• Voltage Rating: 125 VAC
