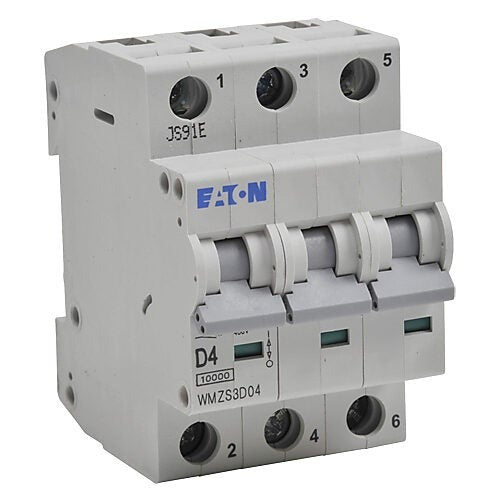

Eaton WMZS3D04 Supplementary protector 4 A (3 pole) FAZ-D4-3

Product Description

The Eaton WMZS3D04 is a 3-pole, 4 A DIN-rail supplementary protector providing thermal-magnetic D-curve overcurrent protection for control panels and industrial circuits. It is rated for 277/480 VAC (480Y/277 VAC) and 96 VDC with a 10 kA interrupting rating, standard box terminal connections accepting 18 to 4 AWG, IP20 enclosure and DIN rail mounting. Dimensions are 3.15 in H x 2.07 in W x 2.36 in D.

• Thermal-magnetic D-curve trip, 4 A current rating, 3-pole configuration, 10 kA interrupting rating at 277/480 VAC
• DIN rail mounting with standard box terminals; accepts 18 to 4 AWG wiring; IP20 enclosure
• Compact module width (17.7 mm per pole), nylon construction, operating temperature 23 to 104 deg F

Product Highlights

3-pole 4 A supplementary protector, D-curve thermal-magnetic trip, 277/480 VAC and 96 VDC rated, 10 kA interrupting rating, DIN rail mount

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: WMZS3D04
• Country of Origin: Spain
