Eaton WMZS3C03 DIN rail circuit breaker 277/480 VAC 3 A (3 pole) FAZ-C3-3

Product Description

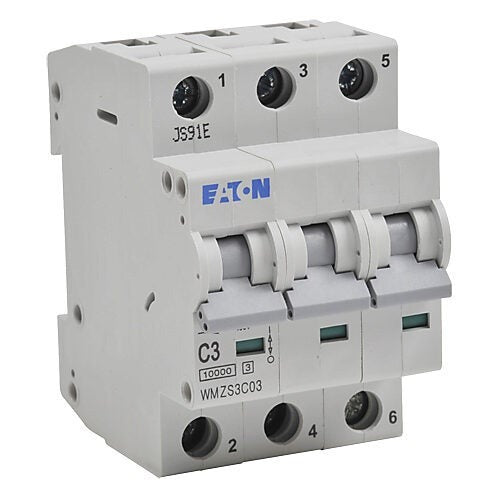

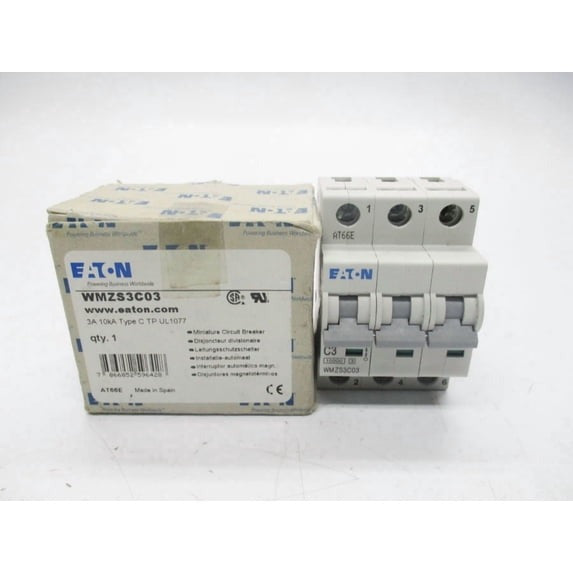

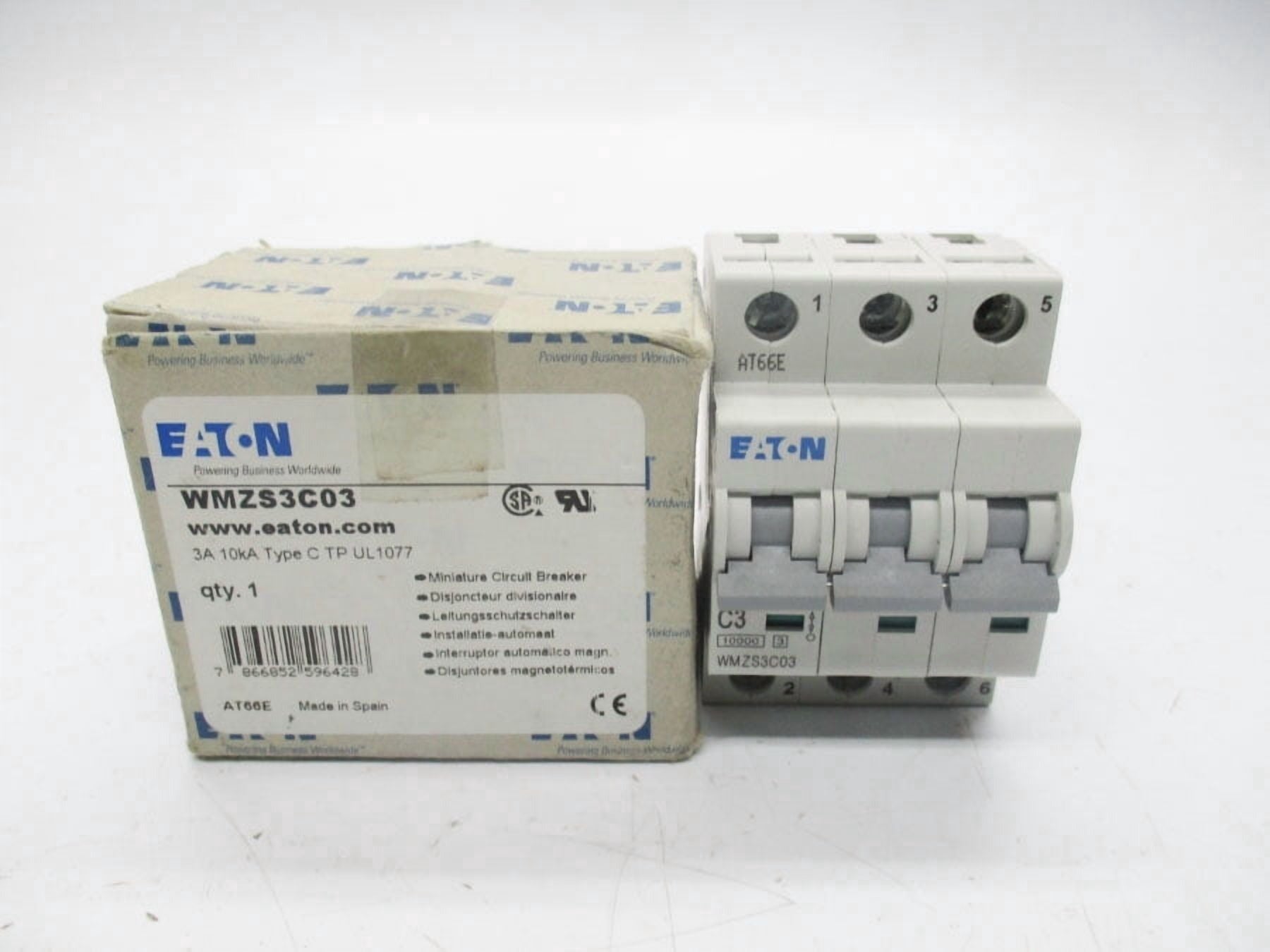

Eaton WMZS3C03 is a DIN-rail mounted three-pole thermal-magnetic circuit breaker (MPN WMZS3C03) providing supplementary overcurrent protection with a C trip curve. It is rated 277/480 VAC and 3 A with a 10 kA interrupting rating, accepts 18 to 4 AWG conductors via standard box terminals, and mounts on 35 mm DIN rail. The device features IP20 enclosure, captive screws, trip-free operation and a contact position indicator.

• Three-pole thermal-magnetic protection, C-curve trip, rated 3 A and 277/480 VAC with 10 kA interrupting rating
• DIN rail mounting with standard box terminals accepting 18 to 4 AWG; IP20 enclosure and nylon construction
• Trip-free design with captive screws, contact position indicator, and field-installable shunt trip, auxiliary switch, and undervoltage release options

Product Highlights

3-pole DIN-rail supplementary protector, 3 A, 10 kA SCCR, C-curve thermal-magnetic trip

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: WMZS3C03
