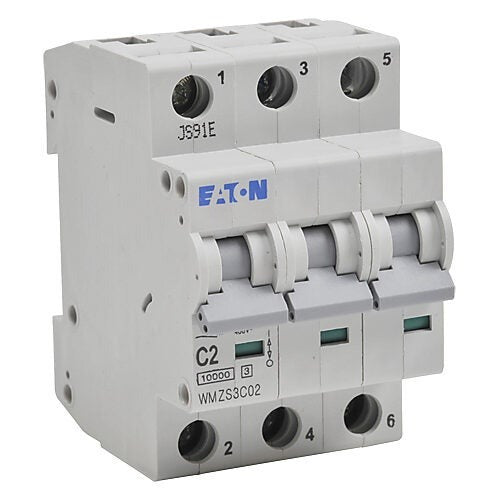

Eaton WMZS3C02 supplementary protector 2 A (3 pole) FAZ-C2-3

Product Description

Eaton WMZS3C02 is a three-pole, current-limiting supplementary protector rated 2 A for 277/480 VAC systems. The device provides thermal/magnetic trip protection with a 10 kA interrupting rating and a C-curve characteristic for inductive loads. It mounts on a 35 mm DIN rail, uses a toggle actuator with standard box terminals, accepts 18 to 8 AWG conductors, and is constructed of nylon with operating temperature -40 to 75 °C.

• Current-limiting design with 10 kA interrupting rating and C-curve thermal/magnetic trip
• Three-pole configuration rated 2 A for 277/480 VAC (96 VDC also documented) with toggle actuator
• DIN-rail mounting (35 mm), standard box terminals, accepts 18–8 AWG conductors; nylon enclosure

Product Highlights

Supplementary protector, 2 A, 3-pole, 277/480 VAC, 10 kA IR, DIN-rail mount, thermal/magnetic trip

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: WMZS3C02
