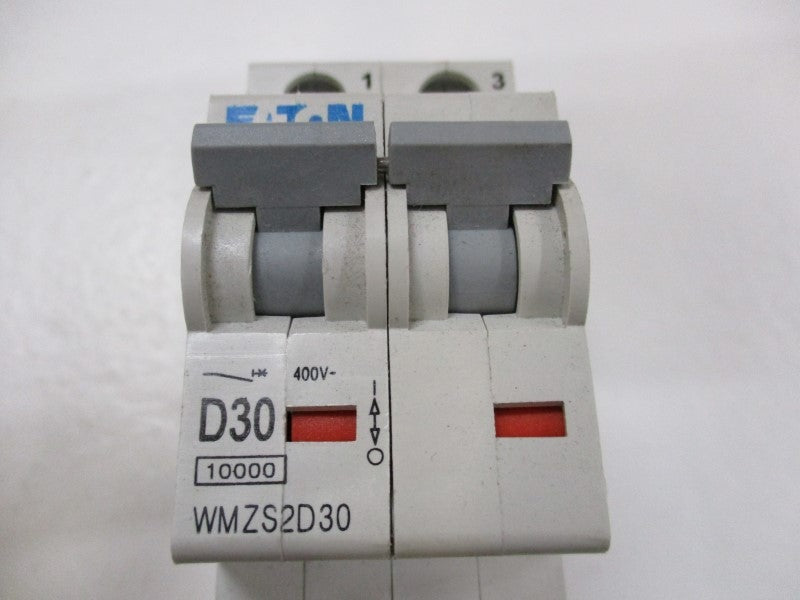

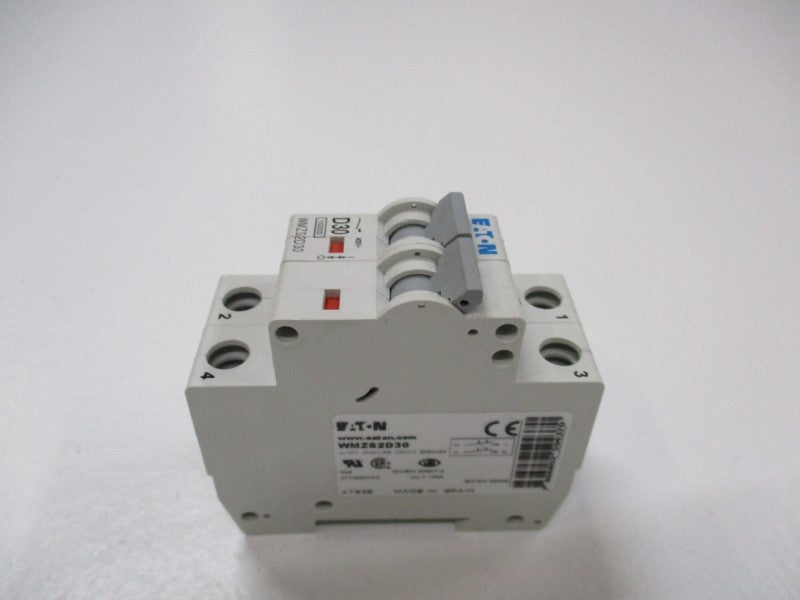

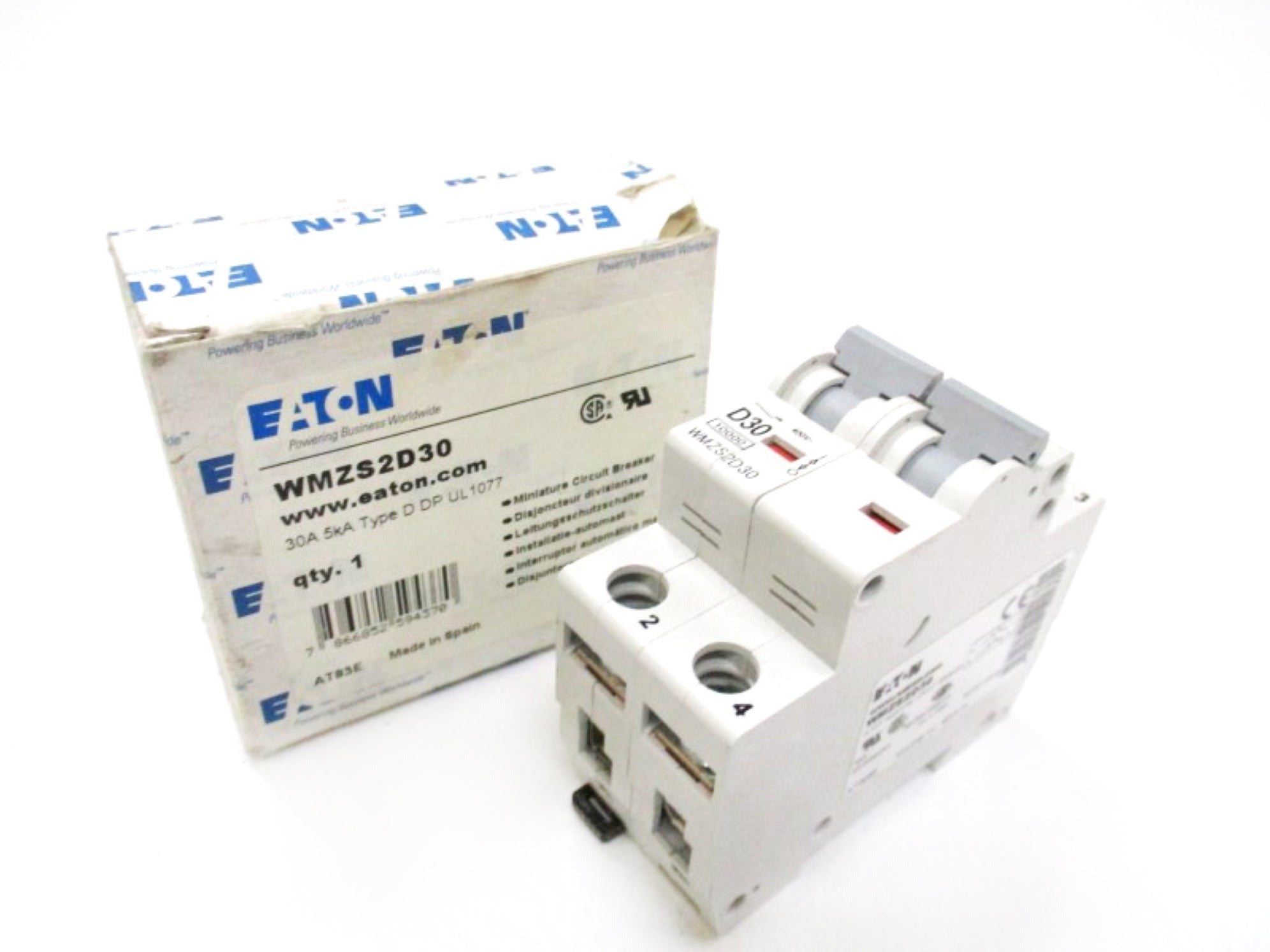

Eaton WMZS2D30 UL 1077 WMZS Din Rail 30 A (2 Pole) FAZ-D30-2

EATON
Brand: EATON
SKU: WMZS2D30
Availability: In Stock

Ships same day if ordered by 12 pm
$156.93
$156.93
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Eaton WMZS2D30 is a UL 1077 WMZS DIN-rail supplementary protector (MPN WMZS2D30) rated 30 A for 277/480 VAC systems. It is a two-pole, current-limiting device with D-curve thermal-magnetic trip characteristics and a 10 kAIC interrupting rating. The unit mounts to 35 mm DIN rail, uses standard box terminals, and is intended for circuit protection and branch-circuit supplementary applications in commercial and industrial panels.

  • 30 A, 2-pole supplementary protector with current-limiting design and D-curve trip
  • Rated 10 kAIC interrupting capacity at 277/480 VAC; thermal-magnetic (LI) trip functions
  • DIN-rail mountable with standard box terminals; accepts 18 to 8 AWG wiring

Product Highlights

UL 1077 supplementary protector, 30 A, 2-pole, 10 kAIC, DIN-rail mount; replacement part FAZ-D30-2

Product Information

Standard Information

  • Brand: EATON
  • Manufacturer Part Number: WMZS2D30
  • Country of Origin: Spain
Technical Specifications
Brand
Eaton
Manufacturer
Cutler-Hammer / Eaton
Part Number
WMZS2D30
Series
WMZS
Type
Supplementary protector (current limiting)
Number of Poles
2
Amperage Rating
30 A
Voltage Rating (AC)
277/480 VAC
Voltage Rating (DC)
96 VDC
Interrupt Rating
10 kAIC @ 277/480 VAC
Trip Type
Thermal/magnetic
Trip Curve
D curve
Standards
IEC 60947-2; CSA C22.2 No. 235; UL 1077; CE marked; RoHS compliant
Mounting Type
35 mm DIN rail (clip-on)
Terminal / Connection Type
Standard box terminals
Wire Size
18 to 8 AWG
Dimensions
1.38 in L x 3.01 in W x 3.15 in H
Material
Nylon
Operating Temperature
-40 to 75 deg C
Phase
1
Functions
Long-time and instantaneous (LI)
Country of Manufacture
Spain
Replacement Part
FAZ-D30-2
Status
Discontinued / Retired 04/2018
