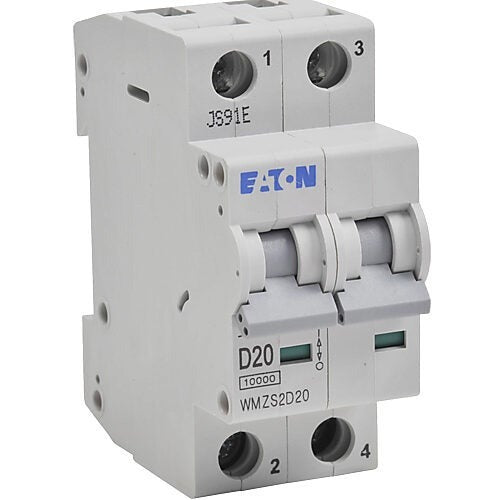

Eaton WMZS2D20 Miniature Circuit Breaker 20 Amp (2 Pole) FAZ-D20-2

Product Description

Eaton WMZS2D20 is a miniature DIN-rail mountable circuit breaker providing two-pole, 20 A protection for 277/480 VAC systems. It uses a thermal-magnetic trip with a D trip curve for high inrush applications and has a 10 kA interrupting rating at 277/480 VAC. The device accepts 18 to 8 AWG conductors, mounts on standard DIN rails, and meets UL 1077, CSA C22.2 No. 235, and IEC 60947-2 standards.

• 20 A, 2-pole thermal-magnetic protection with D trip curve for high inrush conditions
• Rated 277/480 VAC with 10 kA interrupting rating at 277/480 VAC; UL 1077, CSA C22.2 No. 235, IEC 60947-2 compliant
• DIN-rail mountable with toggle actuator; accepts 18 to 8 AWG conductors; temperature rating -40 to 75 deg C

Product Highlights

20 A, 2-pole DIN-rail breaker for 277/480 VAC systems; 10 kAIC interrupting rating; thermal-magnetic D trip curve; UL 1077/CSA/IEC certified; replacement FAZ-D20-2

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: WMZS2D20
• Country of Origin: Spain
