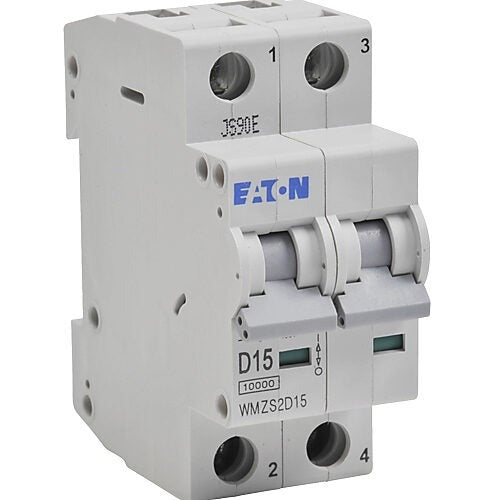

Eaton WMZS2D15 Miniature Circuit Breaker 15 Amp (2 Pole) FAZ-D15-2

Product Description

Eaton WMZS2D15 is a 2-pole miniature circuit breaker rated 15 Amp for 277/480 VAC service with a 10 kAIC interrupting rating. It provides thermal/magnetic overcurrent protection in a current-limiting supplementary protector form factor, mounts on a DIN rail, accepts 18 to 8 AWG conductors, and has a compact nylon housing measuring approximately 1.38 in L x 3.01 in W x 3.15 in H for commercial and industrial power distribution.

• 2-pole, 15 Amp rating with 10 kAIC interrupting capacity at 277/480 VAC
• Thermal/magnetic trip, toggle actuator; current-limiting supplementary protector
• DIN rail mounting, accepts 18 to 8 AWG, nylon housing; operating temperature -40 to 75 °C

Product Highlights

Supplementary, current-limiting 2-pole breaker for 277/480 VAC systems; UL 1077 recognition and direct replacement FAZ-D15-2.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: WMZS2D15
• Country of Origin: Germany
