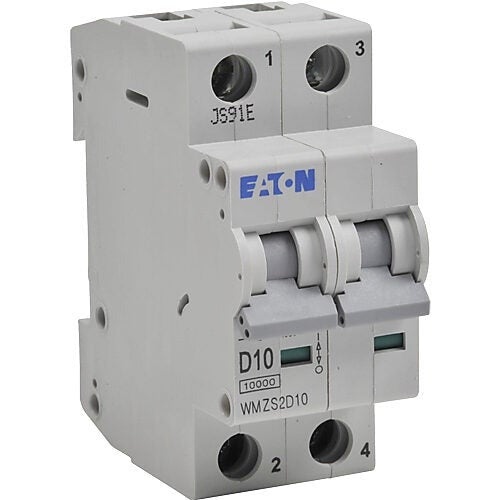

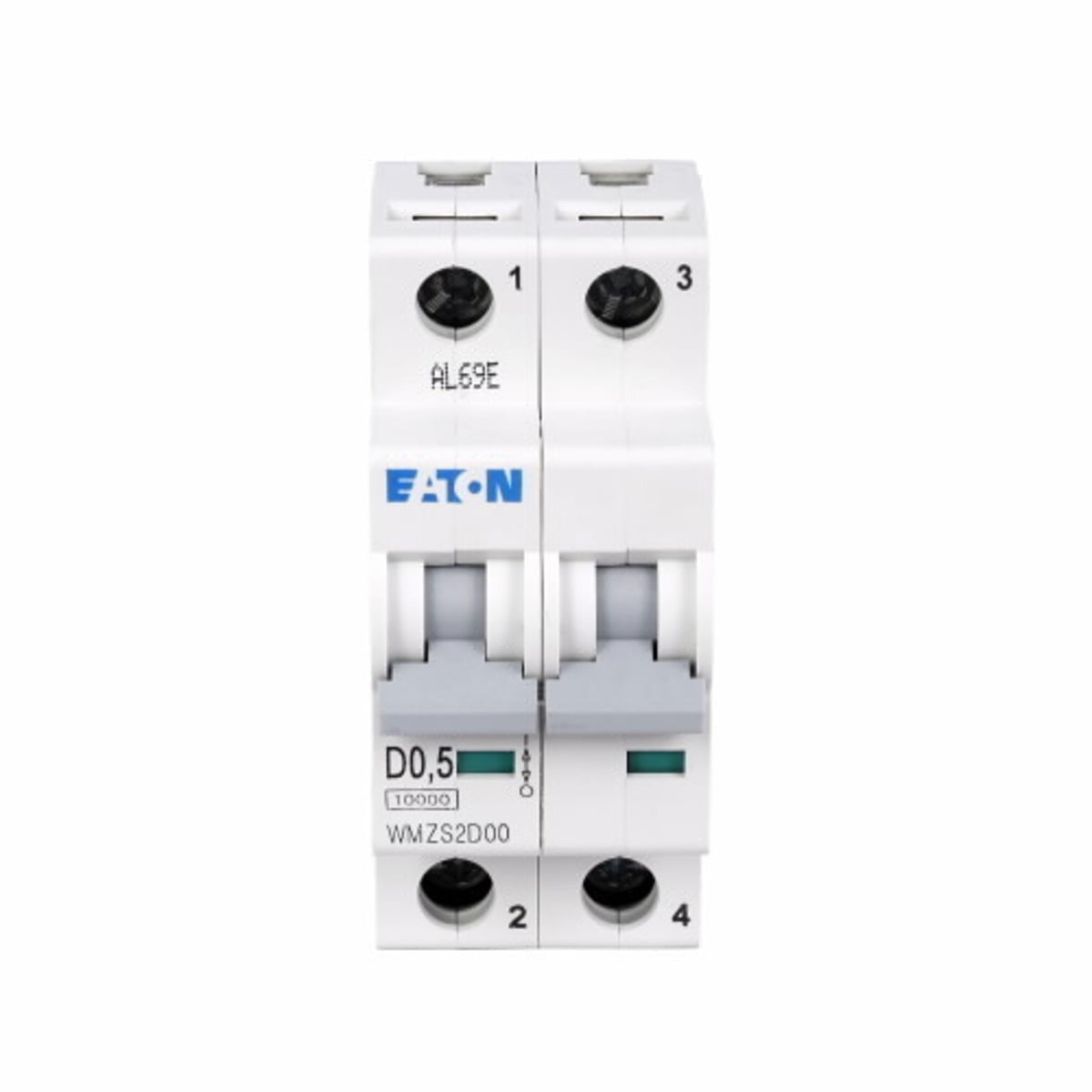

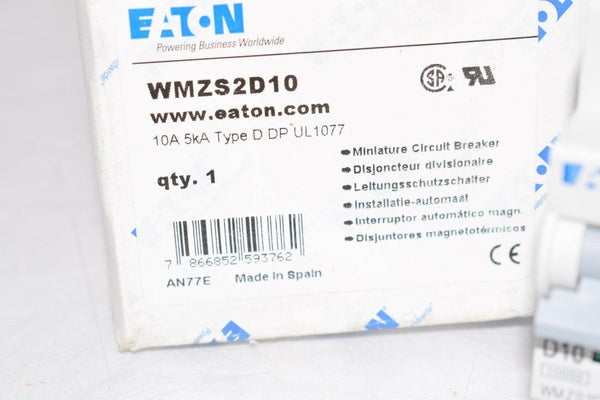

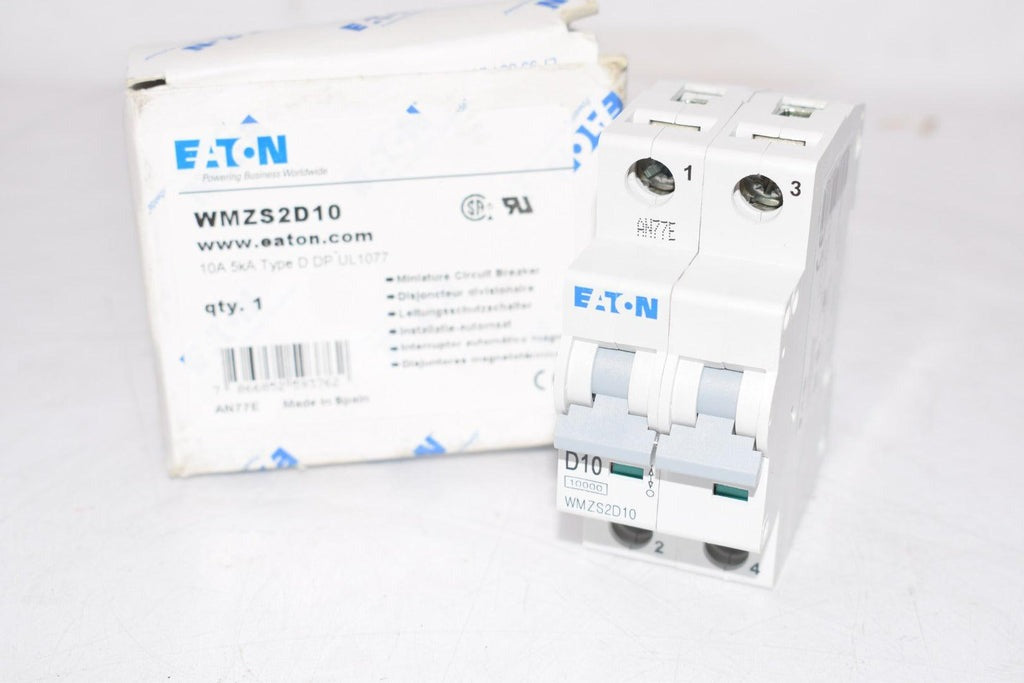

Eaton WMZS2D10 Miniature circuit breaker 10 A (2 Pole) FAZ-D10-2

Product Description

Eaton WMZS2D10 is a 10 A, 2-pole miniature circuit breaker designed for 277/480 VAC power distribution and equipment protection. It provides a 10 kA interrupting capacity and thermal/magnetic trip functionality in a compact modular housing for panel or DIN-rail installations. Terminations use screw or standard box connections; wire capacity supports 18 to 8 AWG and operating temperature ranges from -40 to 75 °C.

• 10 A, 2-pole thermal/magnetic breaker rated 277/480 VAC with 10 kAIC interrupting capacity
• Compact DIN-rail mountable module, dimensions 1.38 in L x 3.01 in W x 3.15 in H; screw and standard box terminations
• Wire capacity 18 to 8 AWG; nylon housing; recognized to UL 1077 and compliant with CSA and IEC standards

Product Highlights

Supplementary protector with D trip curve for panel and equipment overcurrent protection; replacement part FAZ-D10-2.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: WMZS2D10
• Country of Origin: United States
