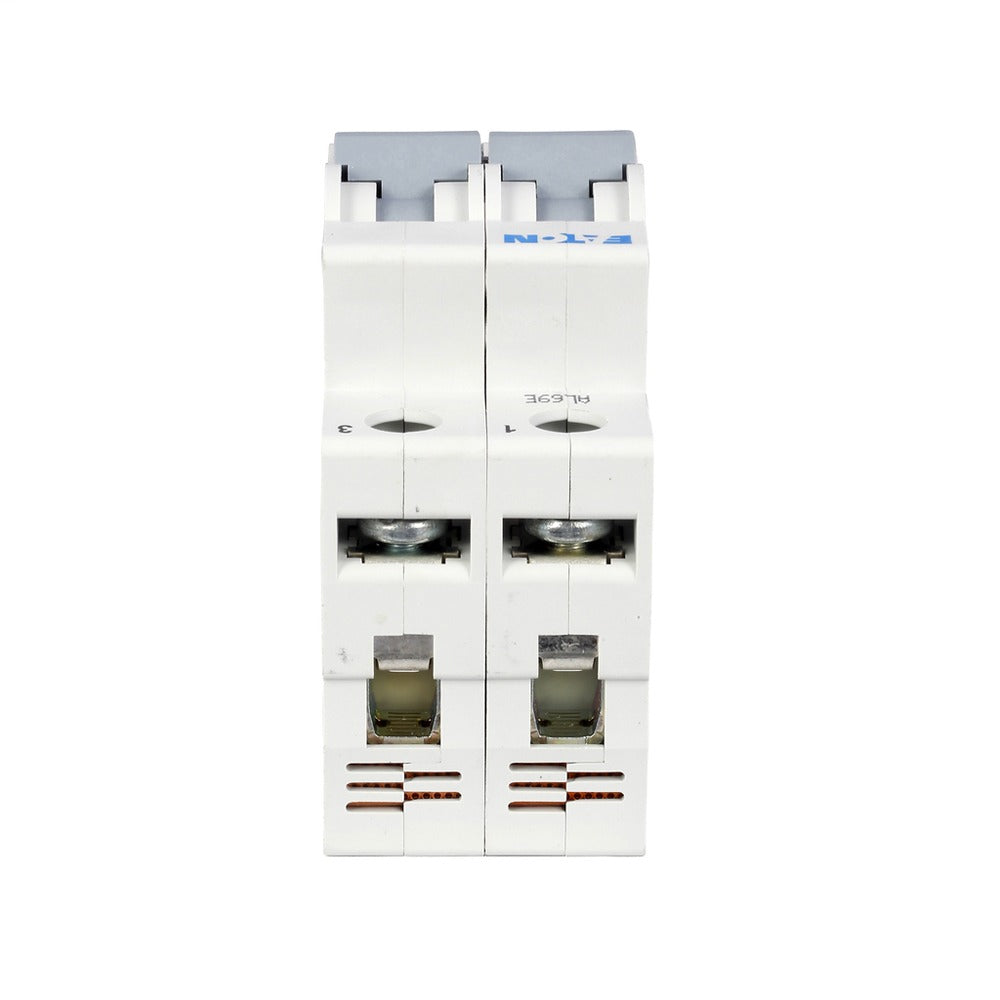

Eaton WMZS2D07 Miniature Circuit Breaker 7 Amp 2 Pole (277/480V, 1.38 in L x 3.15 in H)

EATON
Brand: EATON
SKU: WMZS2D07
Availability: In Stock

Ships same day if ordered by 12 pm
$156.93
$156.93
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

Eaton WMZS2D07 is a 2-pole miniature circuit breaker rated 7 A for 277/480 VAC systems that provides overcurrent protection with a 10 kAIC interrupt rating. The device meets UL 1077, CSA C22.2 No. 235 and IEC 60947-2 standards, features a compact form factor for panel and distribution applications, and uses a D-curve thermal-magnetic trip mechanism for short-circuit and overload protection.

  • Two-pole, 7 A D-curve thermal-magnetic protection for simultaneous conductor protection
  • 10 kAIC interrupt rating at 277/480 VAC; compliant with UL 1077, CSA C22.2 No. 235 and IEC 60947-2
  • Compact DIN-rail compatible form factor with standard box terminal connections and captive screws

Product Highlights

2-pole 7 A DIN-rail miniature circuit breaker with D-curve thermal-magnetic trip and 10 kAIC interrupt rating; UL/CSA/IEC compliant; compact panel/distribution design.

Product Information

Standard Information

  • Brand: EATON
  • Manufacturer Part Number: WMZS2D07
Technical Specifications
Manufacturer
Eaton
Brand
Eaton
Manufacturer Part Number
WMZS2D07
Catalog Number
WMZS2D07
Series
WMZS
Number of Poles
2
Amperage Rating
7 A
Voltage Rating
277/480 VAC
Interrupt Rating
10 kAIC at 277/480 VAC
Trip Type
D-curve thermal-magnetic
Overload Protection
Thermal/magnetic
Trip Free Design
Yes
Mounting Type
DIN Rail
Connection Type
Standard box terminal
Termination
Screw terminals (captive screws)
Wire Size
18 to 4 AWG
Enclosure Rating
IP20
Material
Nylon (thermoplastic housing)
Dimensions
2.36 in L x 1.38 in W x 3.15 in H
Module Width per Pole
17.7 mm (0.697 in) per pole
Contact Position Indicator
Red/green
Field Installable Accessories
Shunt trip, auxiliary switch, undervoltage release (field installable)
Standards
UL 1077; CSA C22.2 No. 235; IEC 60947-2; RoHS compliant; CE marked
Temperature Rating
23 to 104 °F
UPC
786685259352
GTIN
00786685259352
