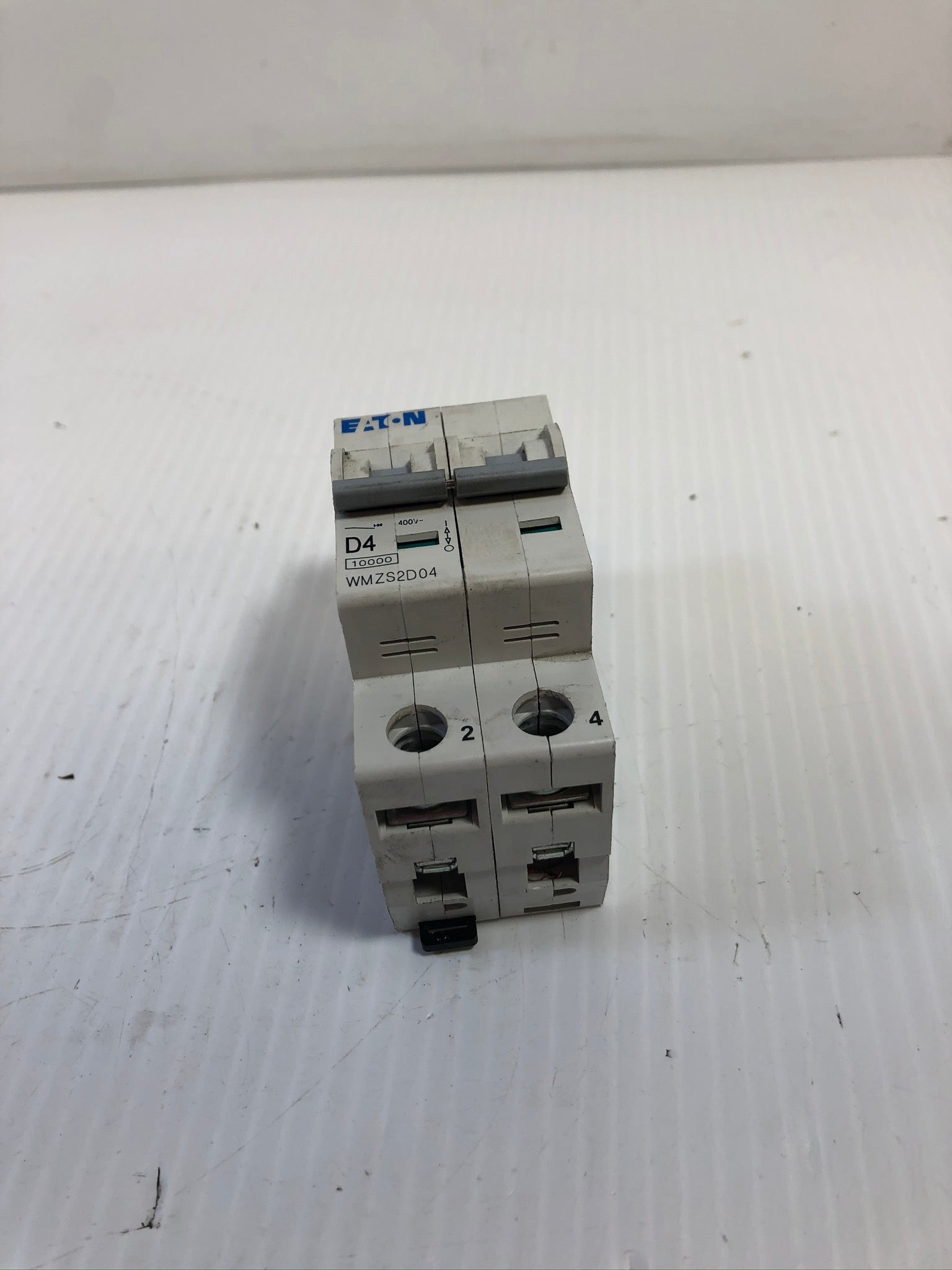

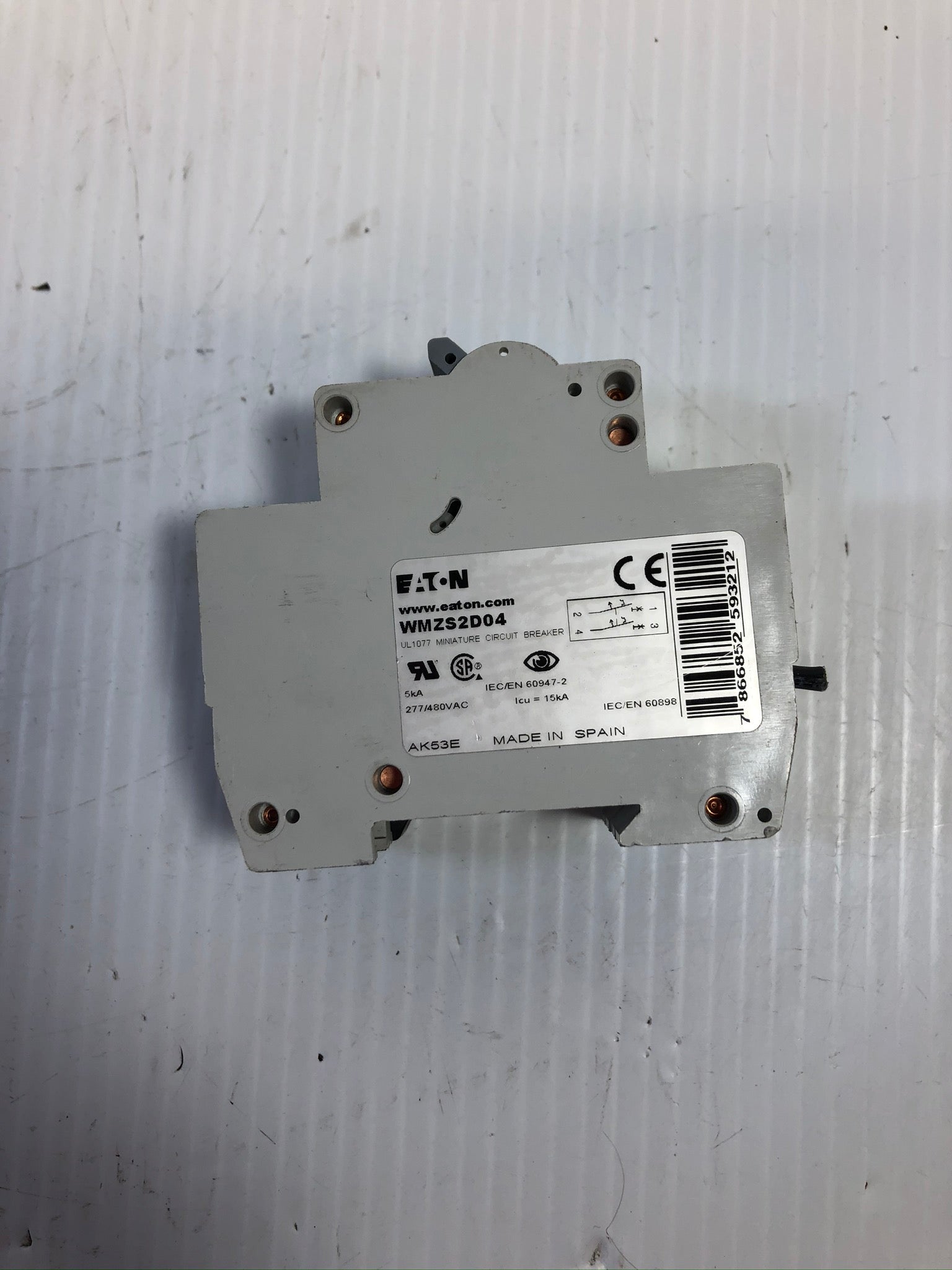

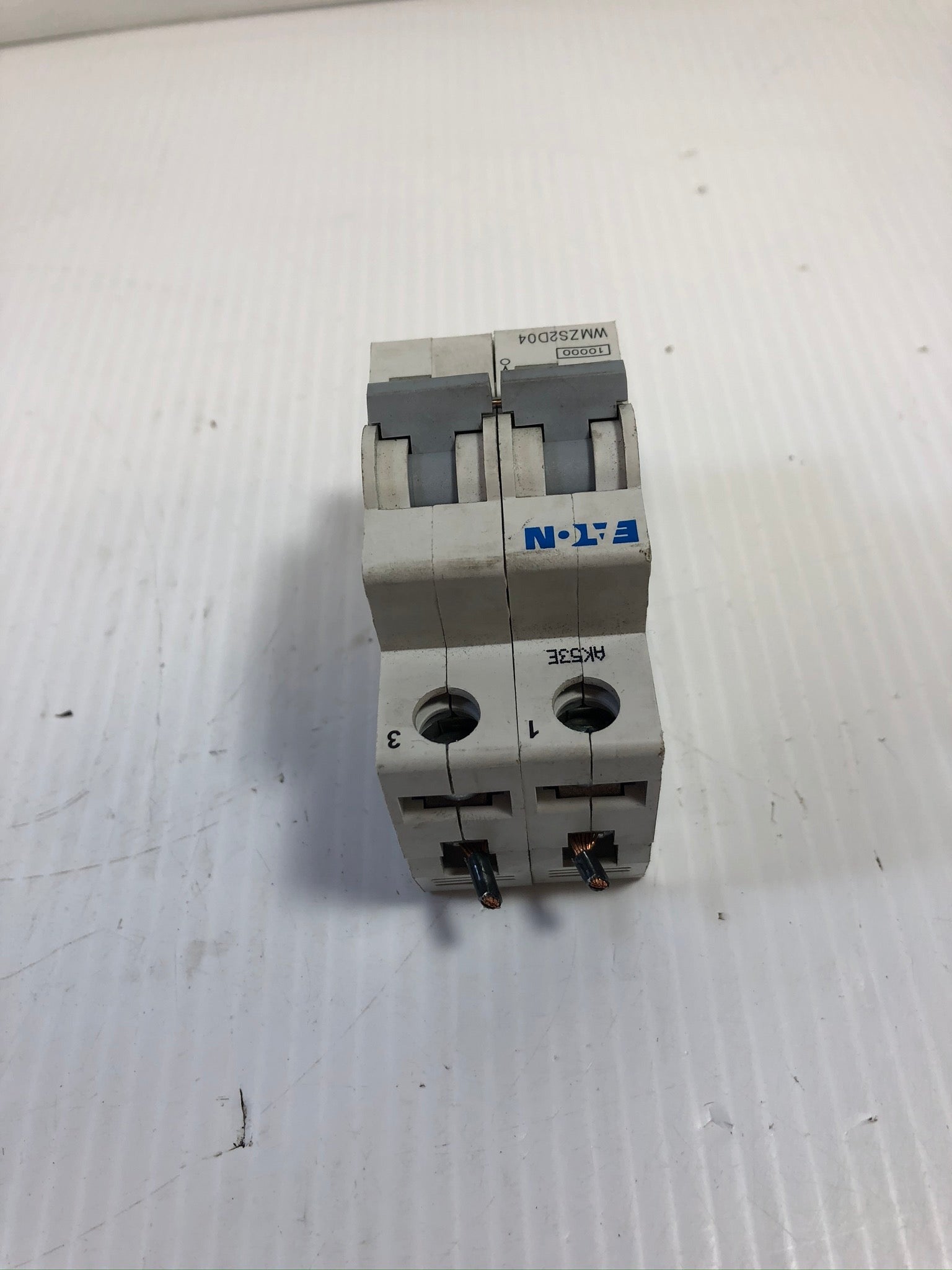

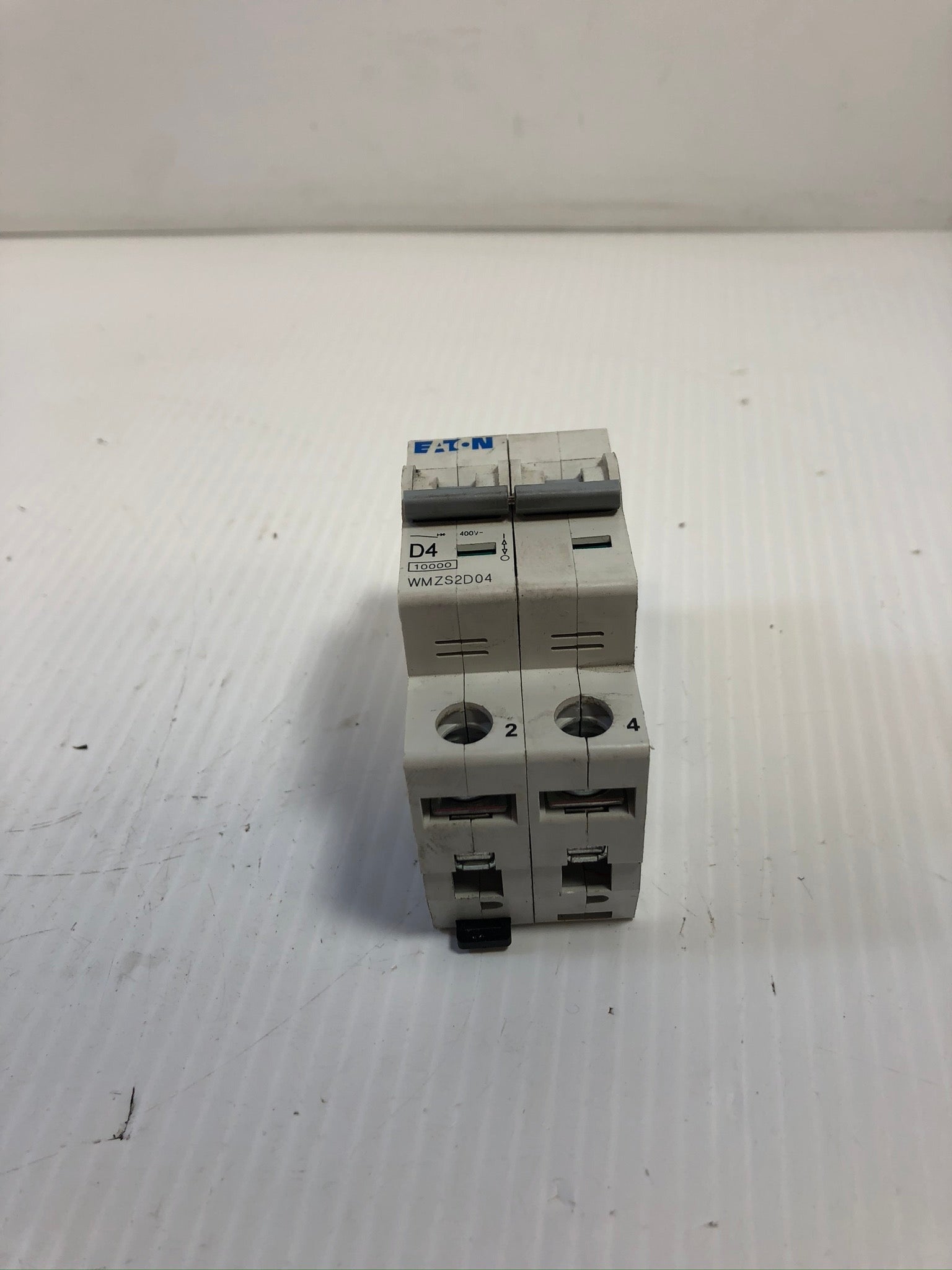

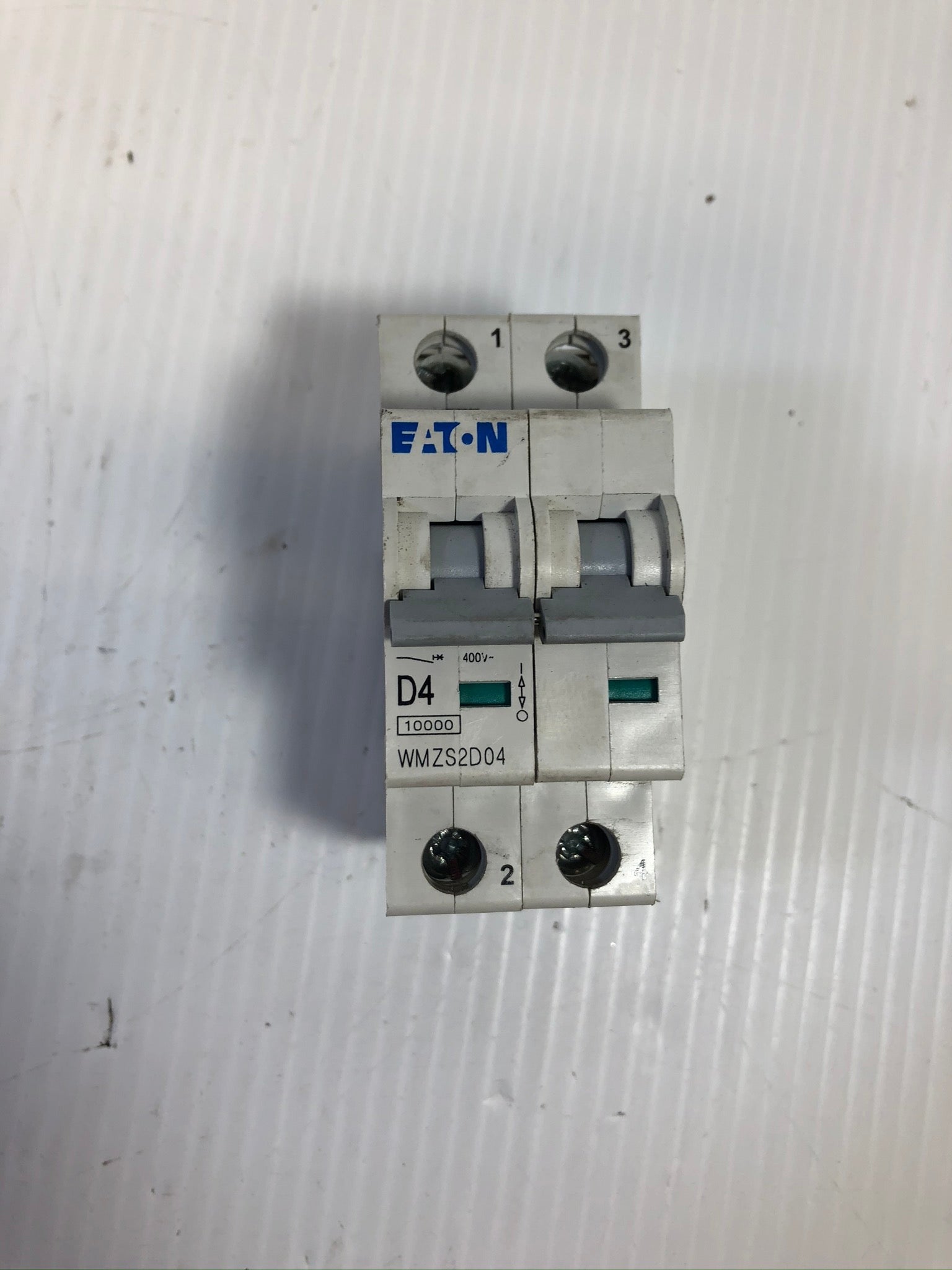

Eaton WMZS2D04 Miniature Circuit Breaker 4 Amp (2 Pole) FAZ-D4-2

Product Description

Eaton WMZS2D04 is a 2-pole, 4 A miniature circuit breaker rated for 277/480 VAC systems with a 10 kAIC interrupt rating. The device uses a D-curve thermal magnetic trip for high inrush capability and is designed for DIN rail mounting with standard box terminal connections and 18 to 4 AWG wiring. It meets UL 1077, CSA C22.2 No. 235 and IEC 60947-2 standards and is RoHS compliant.

• Rated 4 A, 2-pole supplementary protector for 277/480 VAC with 10 kAIC interrupt rating
• D-curve thermal magnetic trip characteristic; suitable for high inrush loads
• DIN rail mountable, IP20 nylon enclosure, standard box terminals, 18 to 4 AWG

Product Highlights

2-pole, 4 A supplementary protector; D-curve thermal-magnetic trip; 10 kAIC at 277/480 VAC; DIN rail mount; UL 1077/CSA/IEC certified

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: WMZS2D04
