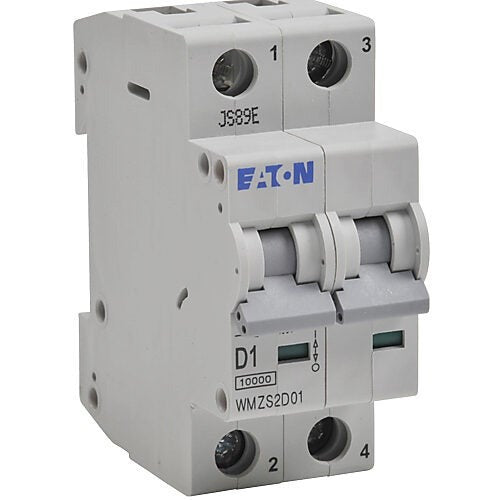

Eaton WMZS2D01 Supplementary Protector 1 A (2-Pole DIN Rail) FAZ-D1-2

Product Description

Eaton WMZS2D01 is a DIN-rail supplementary protector (thermal-magnetic circuit breaker) rated 1 A for 277/480 VAC systems. It provides D-curve trip characteristics and a 10 kA interrupting capacity across two poles, with standard box terminal connections accepting 18 to 4 AWG conductors. The unit mounts on a DIN rail in an IP20 nylon housing and is sized for control panel and industrial supplemental circuit protection.

• Thermal-magnetic D-curve trip; 1 A rating; 2-pole configuration
• 277/480 VAC voltage rating with 10 kA interrupting capacity; accepts 18 to 4 AWG via standard box terminals
• DIN rail mounting, IP20 nylon enclosure, operating temperature 23 to 104 deg F; dimensions 3.15 in H x 1.38 in W x 2.36 in D

Product Highlights

DIN-rail supplementary protector, D-curve thermal-magnetic trip, 1 A, 10 kA interrupting capacity, 2 poles, IP20.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: WMZS2D01
• Country of Origin: Spain
