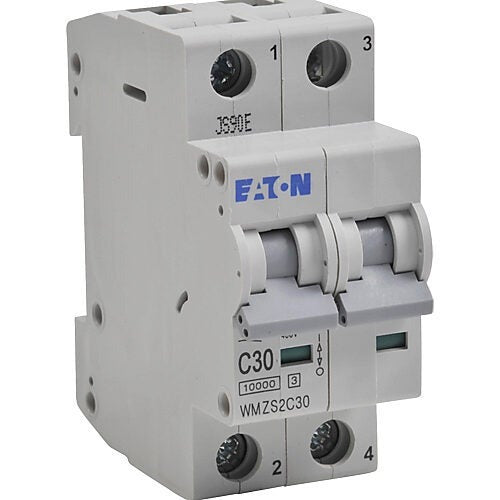

Eaton WMZS2C30 WMZS Din Rail Supplementary Protector 30A (2-Pole) FAZ-C30-2

EATON
Brand: EATON
SKU: WMZS2C30
Availability: In Stock

Ships same day if ordered by 12 pm
$156.93
$156.93
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

Eaton WMZS2C30 is a DIN-rail mount supplementary protector (MPN WMZS2C30) that provides two-pole, 30 A thermal-magnetic overcurrent protection for 277/480 VAC systems. The current-limiting device features a C-curve trip characteristic with a 10 kA interrupting rating, standard box terminals for 18–4 AWG conductors, and an IP20 nylon enclosure suitable for control panels and equipment protection.

  • Two-pole, 30 A thermal-magnetic (C-curve) supplementary protector with 10 kAIC interrupting rating at 277/480 VAC
  • DIN-rail mounting with standard box terminals (18 to 4 AWG), trip-free design, captive screws, and contact position indicator
  • Meets UL 1077 and IEC 60947-2; compact dimensions for panel installation (3.15 in H x 3.01 in W x 1.38 in L)

Product Highlights

Current-limiting DIN-rail supplementary protector, 2-pole 30A, 10 kAIC, C-curve, UL 1077/IEC 60947-2 compliant

Product Information

Standard Information

  • Brand: EATON
  • Manufacturer Part Number: WMZS2C30
  • Country of Origin: United States
Technical Specifications
Brand
Eaton
Manufacturer
Cutler-Hammer / Eaton
Manufacturer Part Number
WMZS2C30
Catalog Number
WMZS2C30
Series
WMZS
Type
Supplementary protector, current limiting
Poles
2
Amperage Rating
30 A
Voltage Rating (AC)
277/480 VAC
Voltage Rating (DC)
48 VDC
Interrupting Rating
10 kAIC at 277/480 VAC
Trip Curve
C curve (thermal-magnetic)
Standards / Certifications
UL 1077; IEC 60947-2; CSA C22.2 No. 235; RoHS compliant; CE marked
Mounting Type
DIN Rail
Terminal Type
Standard box terminals
Wire Size
18 to 4 AWG
Enclosure Rating
IP20
Material
Nylon
Dimensions
3.15 in H x 3.01 in W x 1.38 in L
Weight
0.5 lb
Operating Temperature
23 to 104 deg F
Features
Current limiting, trip-free design, captive screws, contact position indicator, module width 17.7 mm per pole, field-installable shunt trip/auxiliary switch/undervoltage release
Replacement Part
FAZ-C30-2
Status
Retired (05/2015)
UL Recognized File Number
E162396
CSA File Number
245545
UPC
786685259239
GTIN
00786685259239
