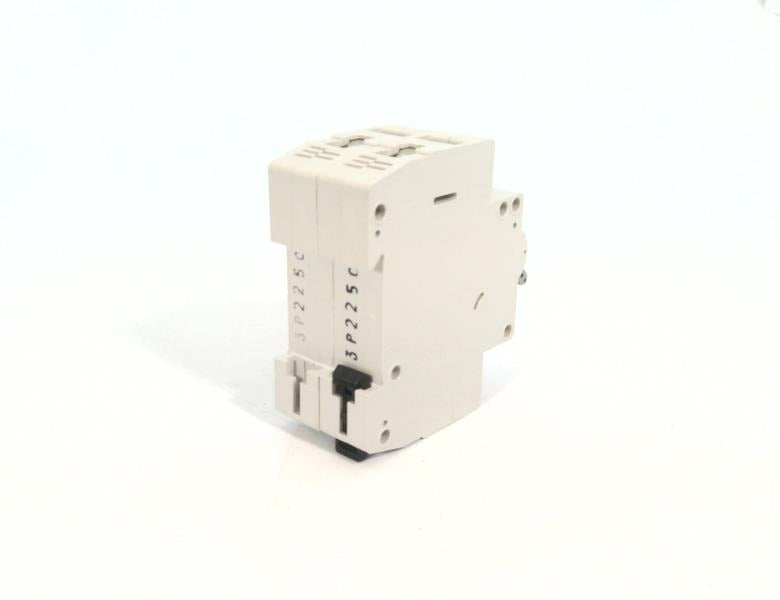

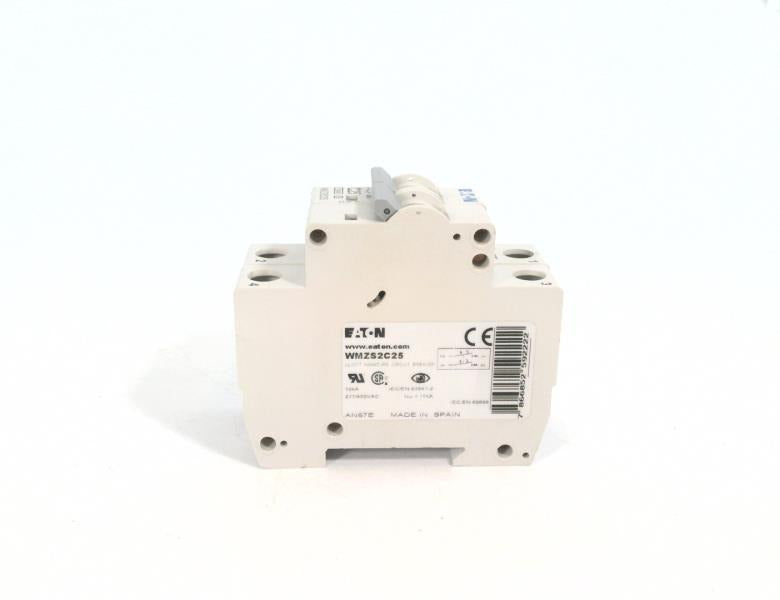

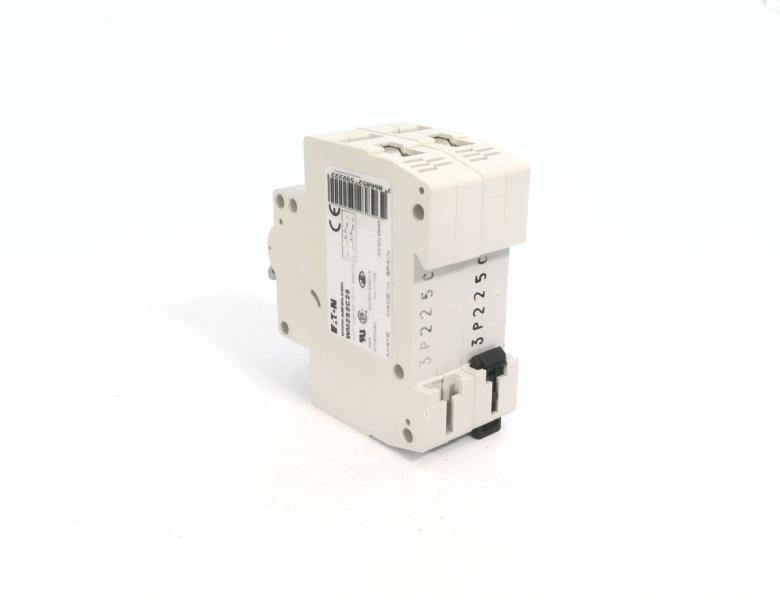

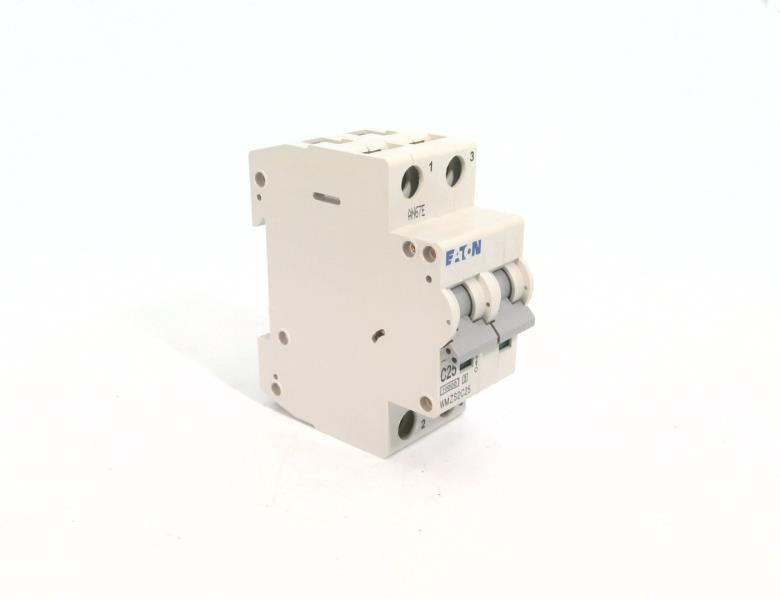

Eaton WMZS2C25 Wmzs Din rail supplementary protector 25 A (2 Pole)

Product Description

Eaton WMZS2C25 is a two-pole UL 1077 supplementary protector providing thermal-magnetic C-curve overcurrent protection rated 25 A with a 10 kA interrupting capacity at 277/480 VAC. Designed for Din rail mounting, it uses standard box terminal screw termination and supports 18 to 4 AWG conductors. The unit features an IP20 nylon enclosure, trip-free mechanism and contact position indicator for control panel circuit protection.

• 25 A rating, 2-pole C-curve (thermal-magnetic) trip with 10 kAIC interrupting rating at 277/480 VAC
• Din rail mountable with standard box terminal screw termination; supports 18 to 4 AWG conductors
• IP20 nylon enclosure, trip-free design, contact position indicator and module width 17.7 mm per pole

Product Highlights

UL 1077 supplementary protector for control panels; 25 A, 2-pole, 10 kAIC, Din rail mount

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: WMZS2C25
• Country of Origin: ESP
