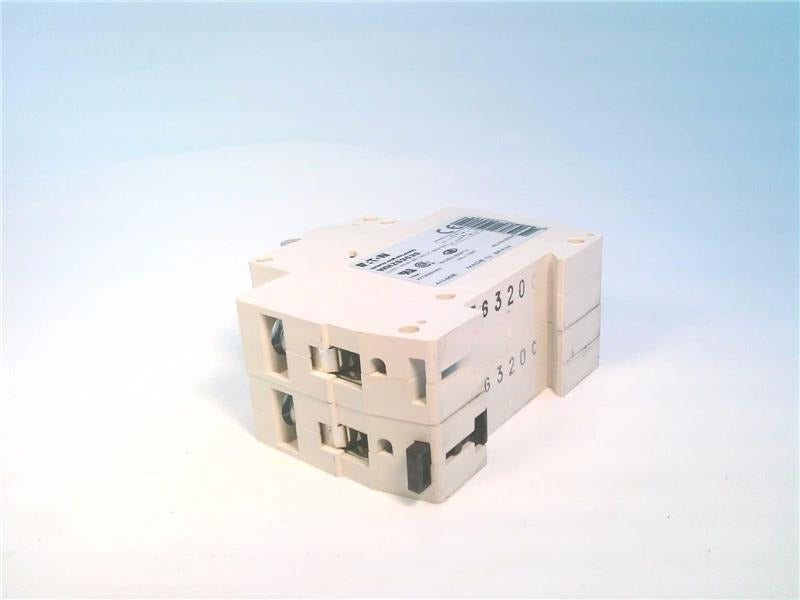

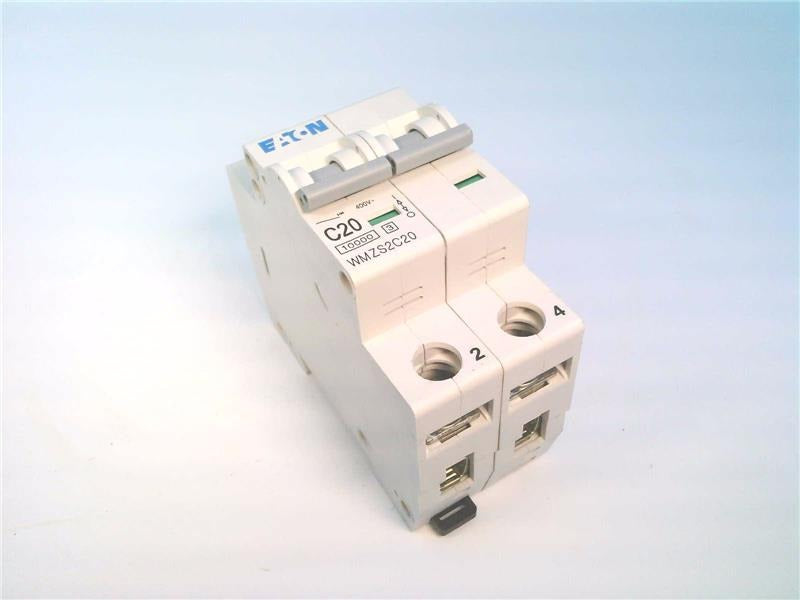

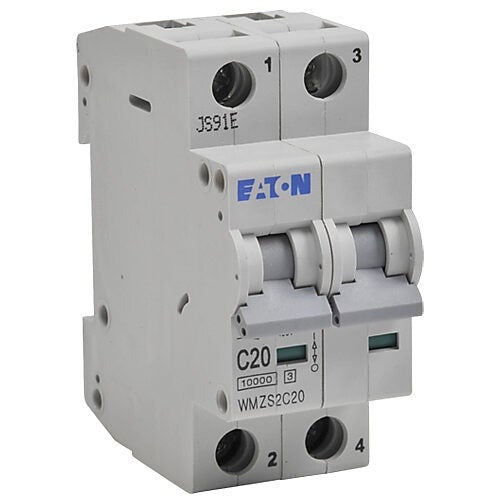

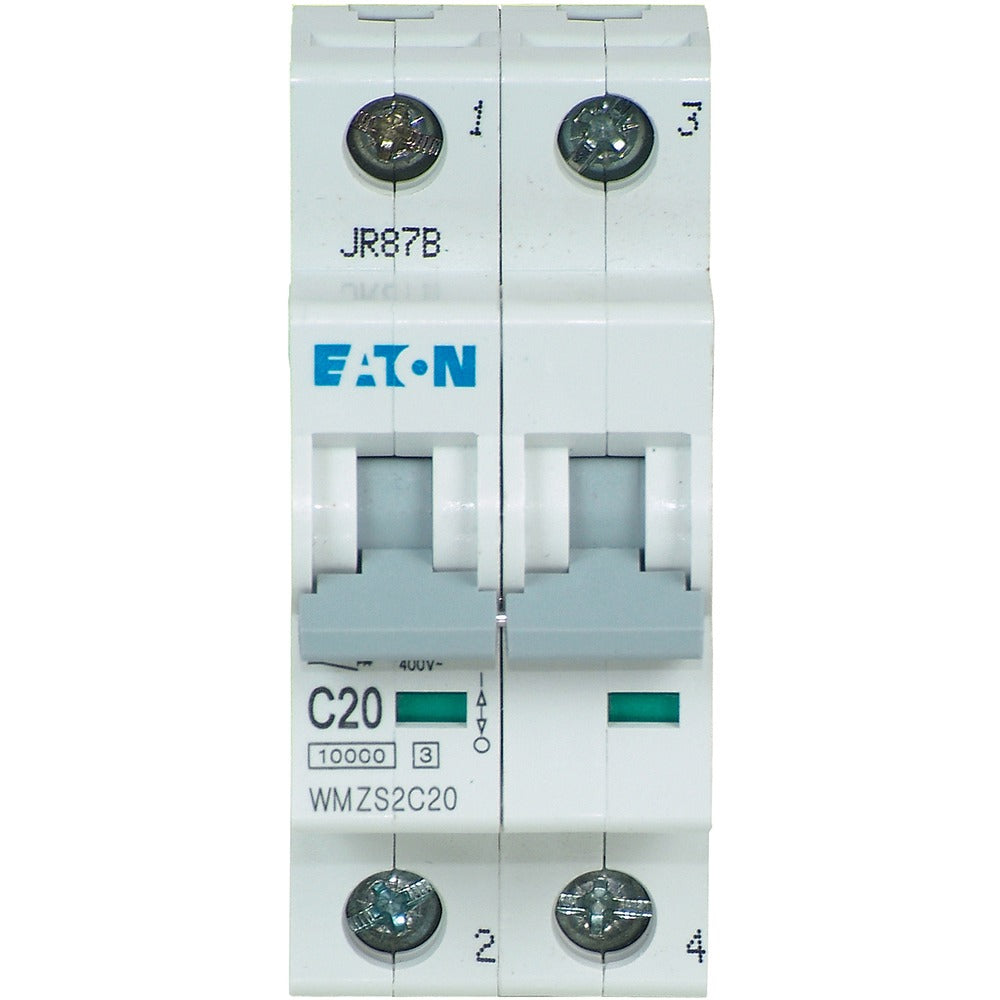

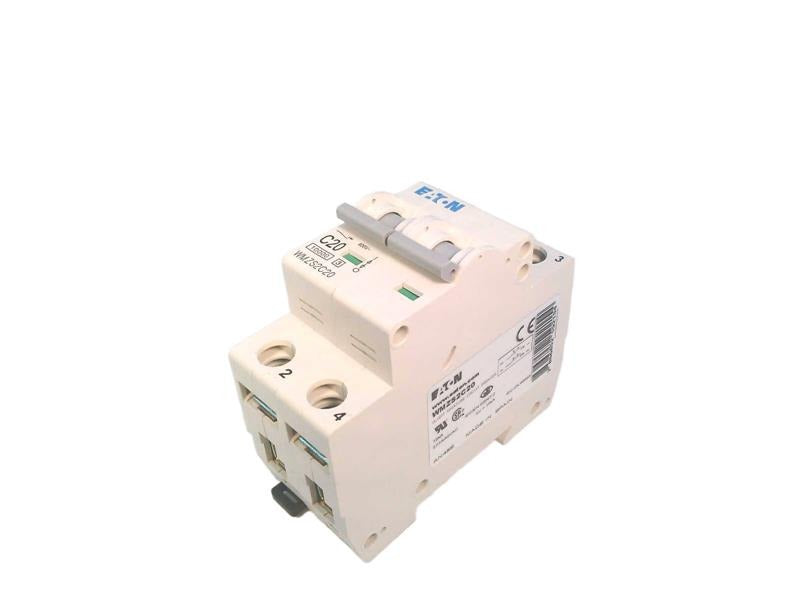

Eaton WMZS2C20 WMZS Din Rail Supplementary Protector 20 A (2 Pole) FAZ-C20-2

Product Description

Eaton WMZS2C20 is a UL 1077 WMZS DIN-rail supplementary protector rated 20 A with a C-curve trip characteristic for 277/480 V systems. The two-pole device provides a 10 kAIC interrupt rating at 277/480 V and mounts on standard DIN rails with standard box terminals. It is designed for branch circuit protection and power distribution applications where a compact, current-limiting protective device is required.

• Two-pole, C-curve trip characteristic; 20 A rating with 10 kAIC interrupt rating at 277/480 V
• DIN-rail mountable with standard box terminals; compact dimensions (1.38 in L x 3.01 in W x 3.15 in H)
• UL 1077 recognized supplementary protector, current-limiting design for branch circuit protection

Product Highlights

DIN-rail 2-pole supplementary protector, 20 A, C-curve, 10 kAIC interrupt rating, UL 1077

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: WMZS2C20
• Country of Origin: Spain
