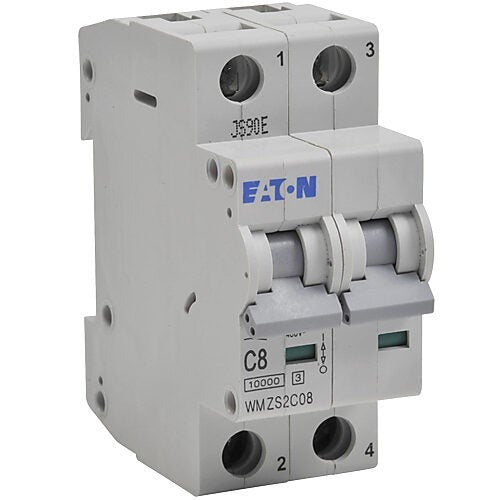

Eaton WMZS2C08 WMZS DIN Rail Circuit Breaker 8 A (2 Pole) FAZ-C8-2

Product Description

Eaton WMZS2C08 is a DIN-rail mountable WMZS series supplementary protector providing two-pole, 8 A thermal-magnetic overcurrent protection with a C trip curve. It is rated for 277/480 VAC with a 10 kA interrupting capacity, accepts 18 to 4 AWG conductors, and mounts on standard DIN rail. The device has a nylon IP20 enclosure, standard box terminal screw connections, and dimensions of 3.15 in H x 1.38 in W x 2.36 in D.

• Two-pole, 8 A thermal-magnetic protection with C trip curve; UL 1077 recognized; complies with CSA C22.2 No.235 and IEC 60947-2
• Rated 277/480 VAC with 10 kA interrupting capacity and current-limiting design for fast short-circuit interruption
• DIN rail mounting, IP20 nylon enclosure, standard box terminal screws, accepts 18 to 4 AWG; module width 17.7 mm per pole

Product Highlights

DIN-rail supplementary protector, 2-pole 8 A C-curve, 10 kA interrupting rating, direct replacement Eaton FAZ-C8-2

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: WMZS2C08
