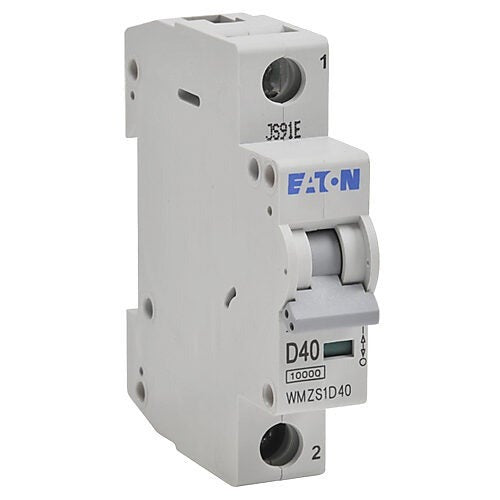

Eaton WMZS1D40 Supplementary Protector 40 A (1 Pole) FAZ-D40-1-SP

EATON
Brand: EATON
SKU: WMZS1D40
Availability: In Stock

Ships same day if ordered by 12 pm
$92.80
$92.80
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

Eaton WMZS1D40 is a DIN-rail supplementary protector providing thermal-magnetic D-curve overcurrent protection for single-pole control-panel applications. Rated 40 A at 277/480 VAC with a 10 kA interrupting capacity, it uses standard box terminal connections for 18 to 4 AWG conductors and mounts on 35 mm DIN rail. The device features an IP20 nylon enclosure, trip-free mechanism, and complies with UL 1077, CSA C22.2 No.235, and IEC 60947-2.

  • Thermal-magnetic D-curve trip characteristic, single-pole, 40 A rating
  • Rated for 277/480 VAC with 10 kA interrupting capacity; UL 1077, CSA C22.2 No.235, IEC 60947-2 compliant
  • DIN-rail mount with standard box terminal (18–4 AWG), IP20 nylon enclosure, captive screws and trip-free design

Product Highlights

DIN-rail 1-pole supplementary protector, 40 A, D-curve thermal-magnetic trip, 277/480 VAC, 10 kA interrupting capacity, replacement FAZ-D40-1-SP

Product Information

Standard Information

  • Brand: EATON
  • Manufacturer Part Number: WMZS1D40
Technical Specifications
Brand
Eaton
Manufacturer Part Number
WMZS1D40
Series
WMZS
Type
Supplementary protector / Miniature circuit breaker
Poles
1
Rated Current
40 A
Input Voltage
277/480 VAC
DC Rating
48 VDC
Interrupting Capacity
10 kA
Trip Type
D-curve / Thermal magnetic
Mounting Type
DIN Rail (35 mm)
Connection Type
Standard box terminal
Wire Size
18 to 4 AWG
Enclosure Rating
IP20
Housing Material
Nylon
Dimensions
3.15 in H x 0.69 in W x 2.36 in D
Operating Temperature
23 to 104 deg F
Module Width
17.7 mm per pole
Standards / Certifications
UL 1077, CSA C22.2 No.235, IEC 60947-2
Special Features
Current limiting design, trip-free design, captive screws, contact position indicator, possibility to seal toggle in ON or OFF position
Replacement Part
FAZ-D40-1-SP
