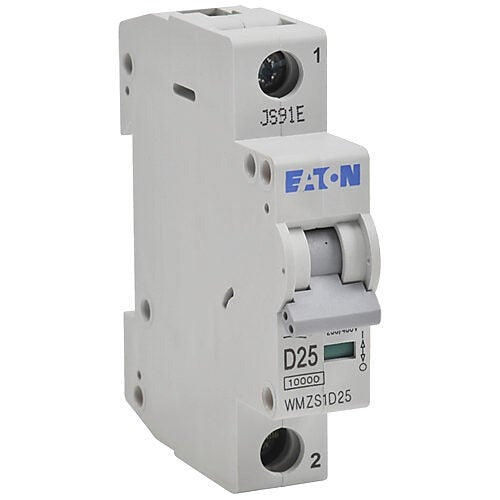

Eaton WMZS1D25 miniature circuit breaker 25A (1 pole) FAZ-D25-1-SP

Product Description

Eaton WMZS1D25 is a 25 A miniature circuit breaker (MPN WMZS1D25) designed for single-pole supplementary protection in 277/480 VAC systems. The device features a thermal-magnetic D trip curve with a 10 kAIC interrupting rating and is intended for DIN rail panel mounting. Typical use cases include control circuits, lighting, and equipment protection where a compact, current-limiting supplementary protector is required.

• Single-pole 25 A rating with 277/480 VAC voltage rating and 10 kAIC interrupting capacity
• Thermal-magnetic trip with D curve characteristic for high inrush and current-limiting protection
• 35 mm DIN rail mounting, compact dimensions (0.69 in W x 3.01 in L x 3.15 in H), 18–8 AWG terminations

Product Highlights

25 A single-pole thermal-magnetic miniature circuit breaker, D curve, 10 kAIC, DIN rail mount; replacement FAZ-D25-1-SP

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: WMZS1D25
• Country of Origin: United States
