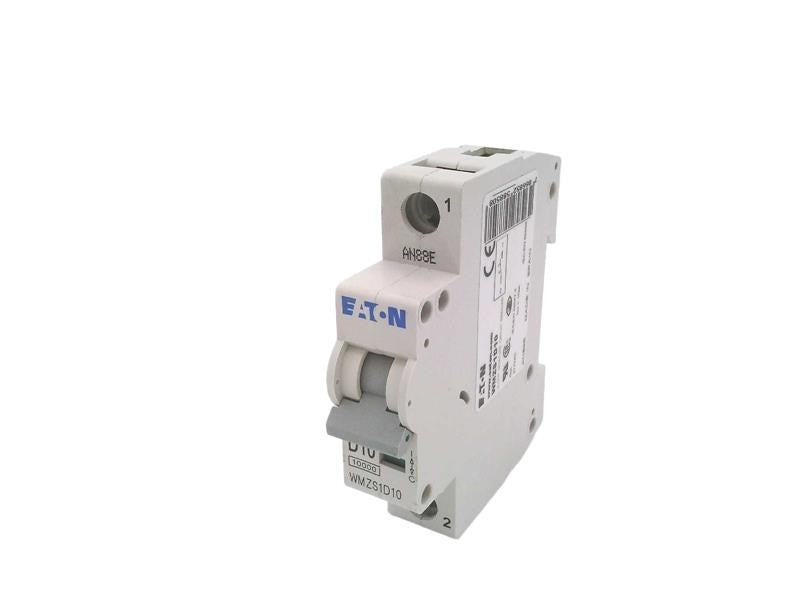

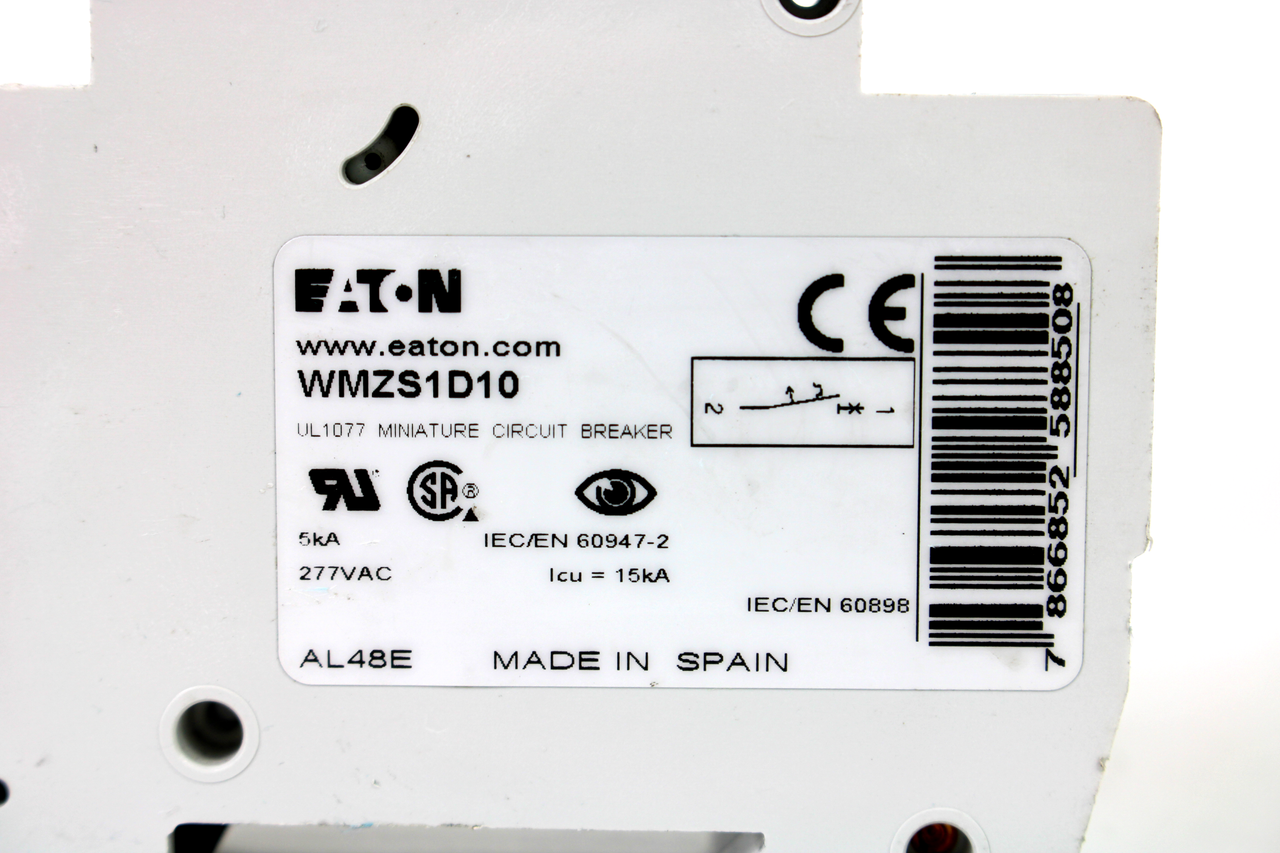

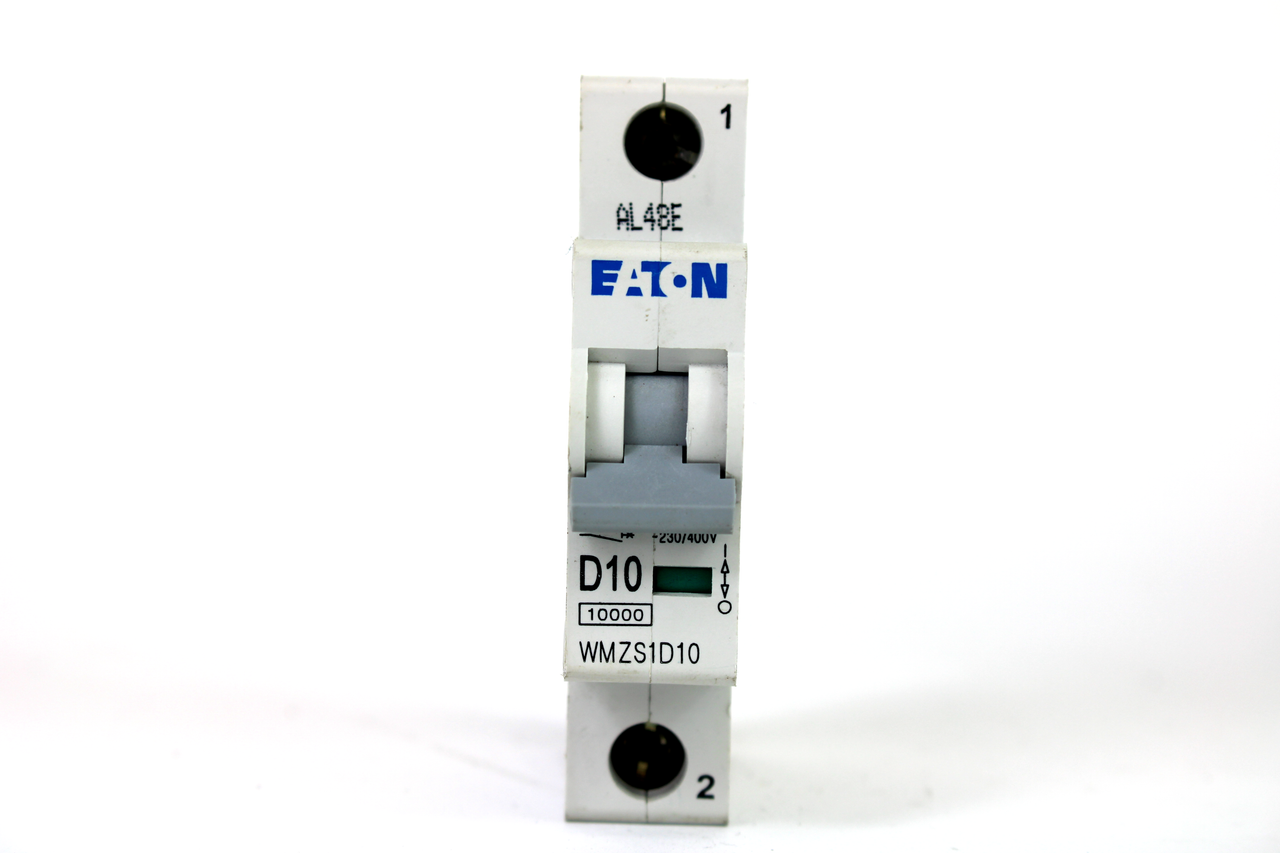

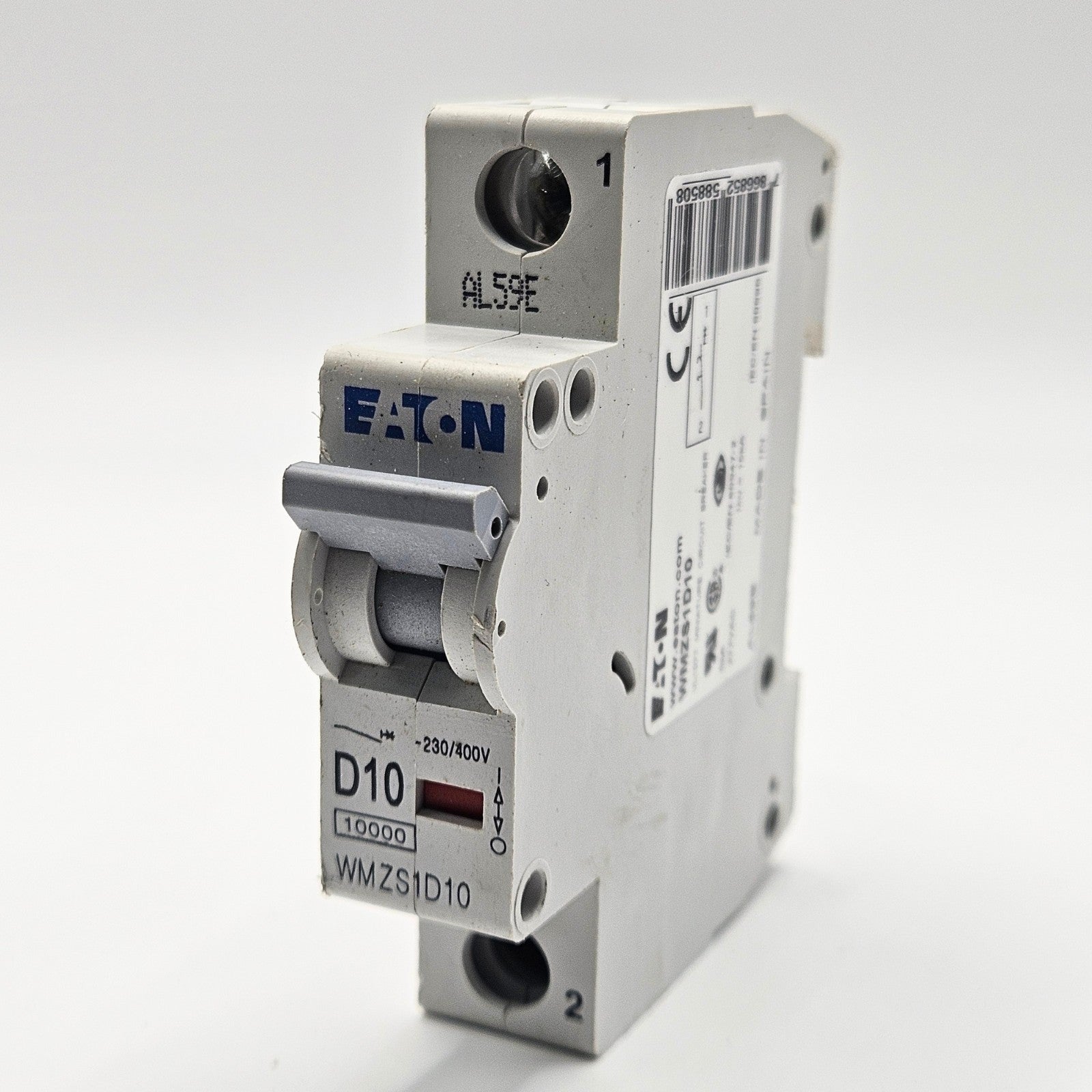

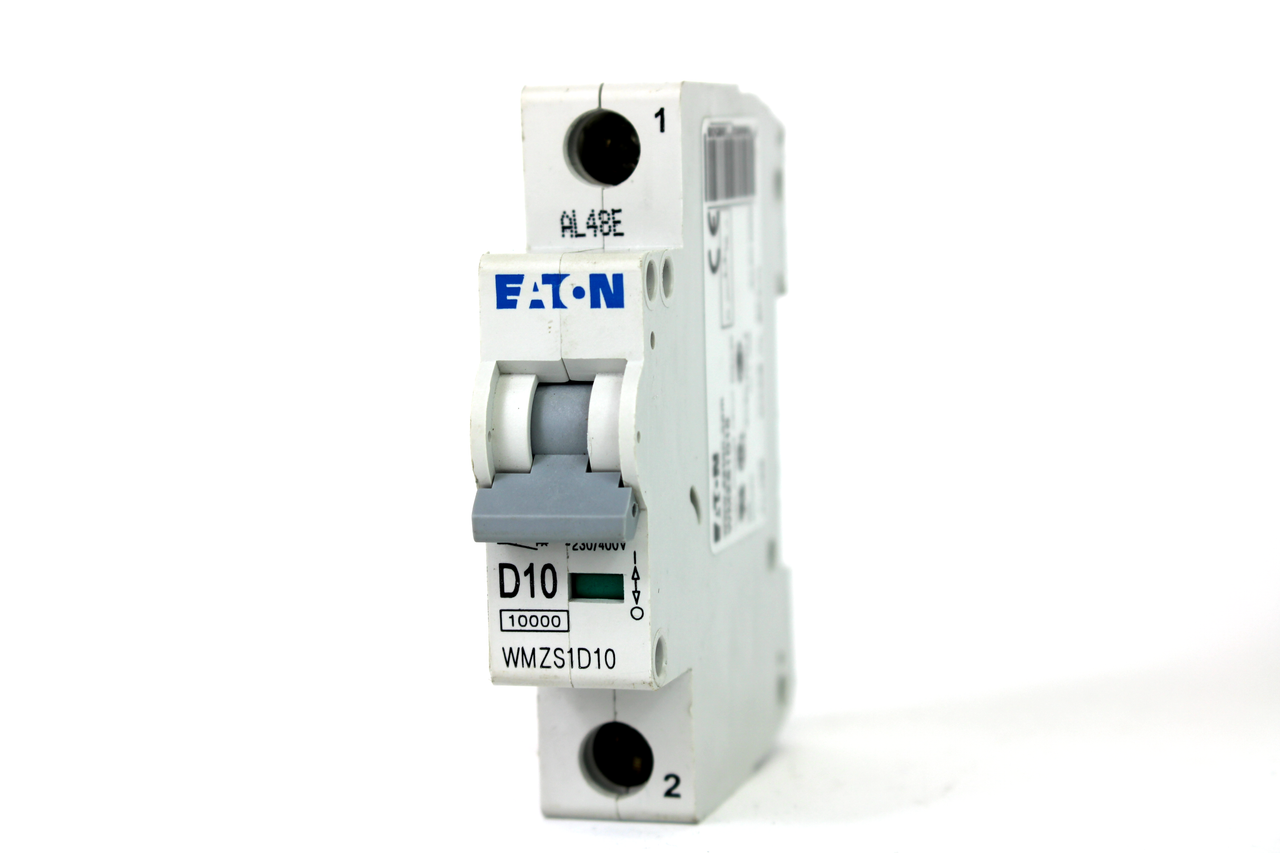

Eaton WMZS1D10 UL 1077 WMZS Din Rail 10 A (1 Pole) FAZ-D10-1-SP

Product Description

Eaton WMZS1D10 is a single-pole UL 1077 supplementary protector rated 10 A with a D trip curve and thermal-magnetic operation for DIN-rail mounting. It provides a 10 kA interrupt rating at 277/480 VAC, uses standard box screw terminals, and accepts 18 to 8 AWG conductors. Typical use cases include branch circuit protection in industrial control panels, electrical distribution systems, and equipment enclosures.

• Rated current: 10 A; single-pole, thermal-magnetic with D trip curve
• Interrupt rating: 10 kAIC at 277/480 VAC; current-limiting design
• Mounting and connections: DIN-rail mountable with standard box screw terminals; accepts 18–8 AWG

Product Highlights

UL 1077 supplementary protector, 10 A, D curve thermal-magnetic trip, 10 kAIC interrupt rating, DIN-rail mount, standard box terminals

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: WMZS1D10
• Country of Origin: Spain
