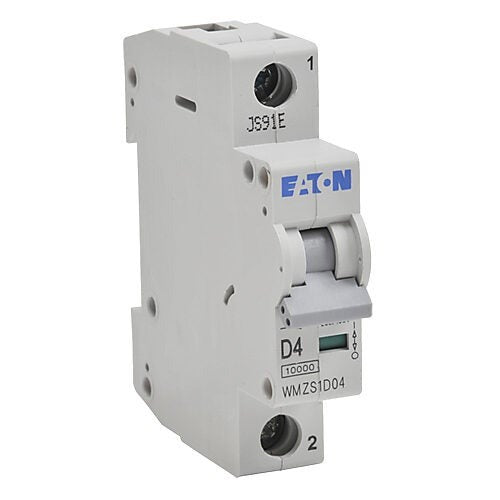

Eaton WMZS1D04 Miniature Circuit Breaker 4 A (1 Pole) FAZ-D4-1-SP

Product Description

Eaton WMZS1D04 is a single-pole miniature circuit breaker and supplementary protector rated 4 A for 277/480 VAC systems. The device provides thermal-magnetic overcurrent protection with a D trip curve and a 10 kAIC interrupting rating. It is designed for DIN-rail or panel mounting, accepts 18 to 8 AWG conductors, and meets UL 1077, IEC 60947-2, and CSA C22.2 No. 235 standards.

• 4 A single-pole thermal-magnetic protection with D trip curve and 10 kAIC interrupt rating at 277/480 VAC
• DIN-rail mountable supplementary protector, accepts 18 to 8 AWG wiring; dimensions 0.69 in x 3.01 in x 3.15 in
• Standards: UL 1077 recognized; IEC 60947-2; CSA C22.2 No. 235; CE marked; RoHS compliant; operating temp -40 to 75 °C

Product Highlights

Single-pole 4 A supplementary protector for 277/480 VAC with thermal-magnetic D-curve trip and 10 kAIC interrupt rating; DIN-rail mount, 18–8 AWG wiring.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: WMZS1D04
• Country of Origin: China
