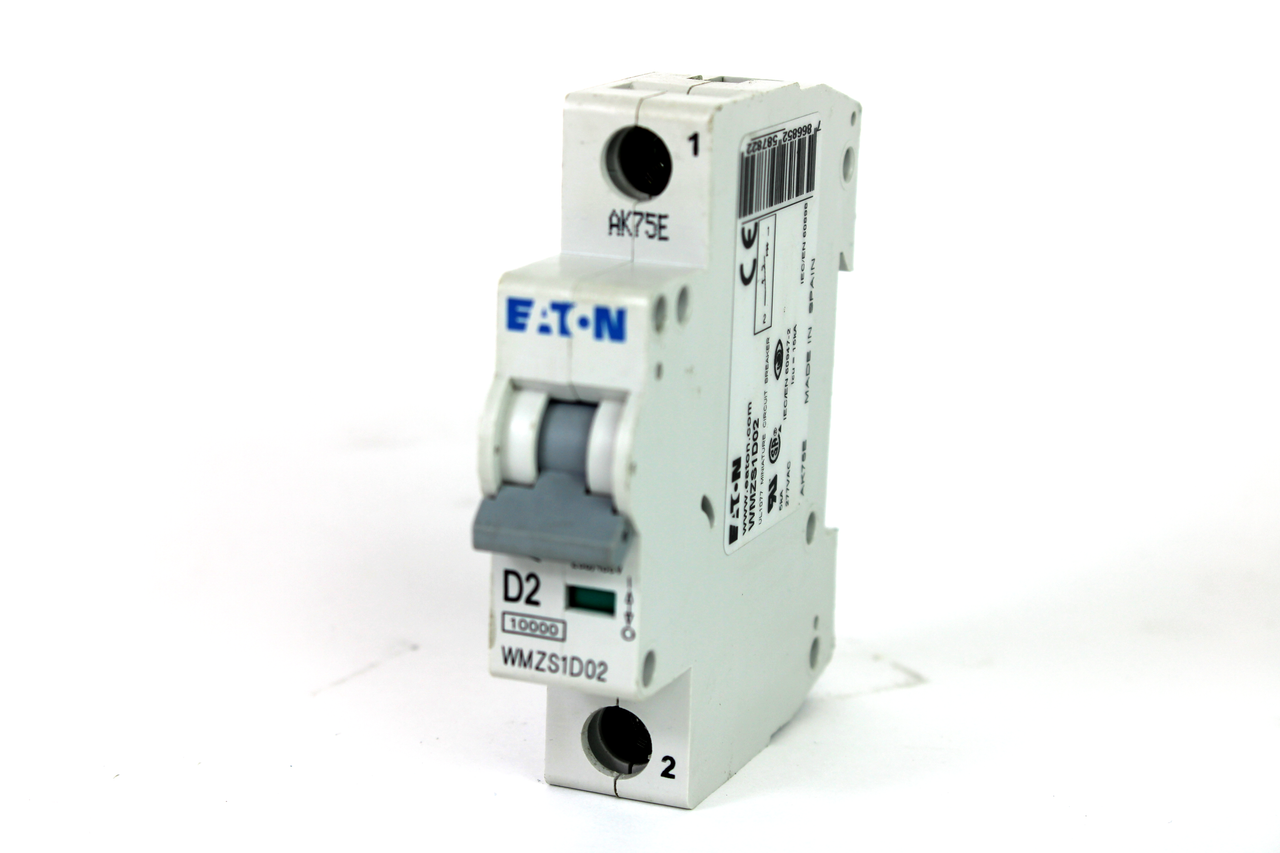

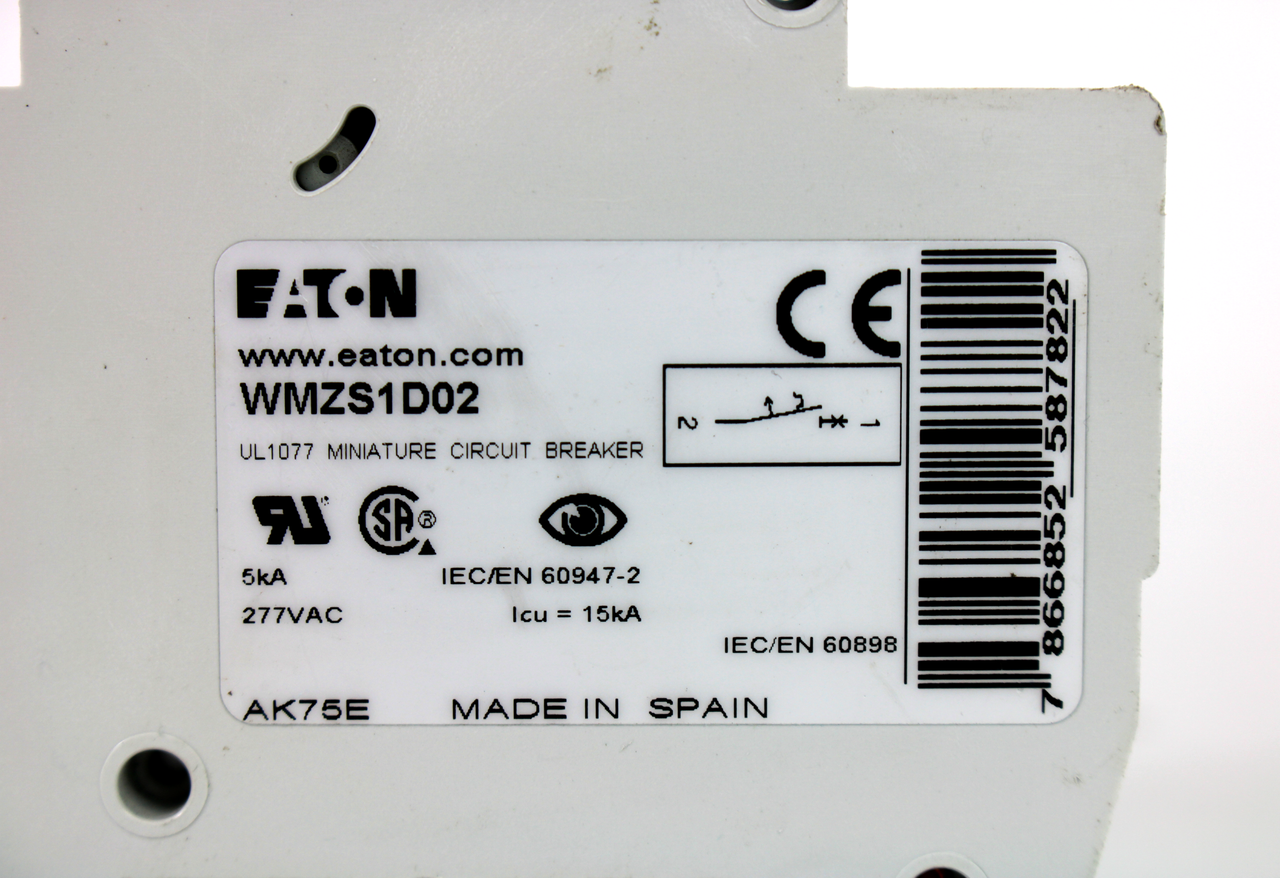

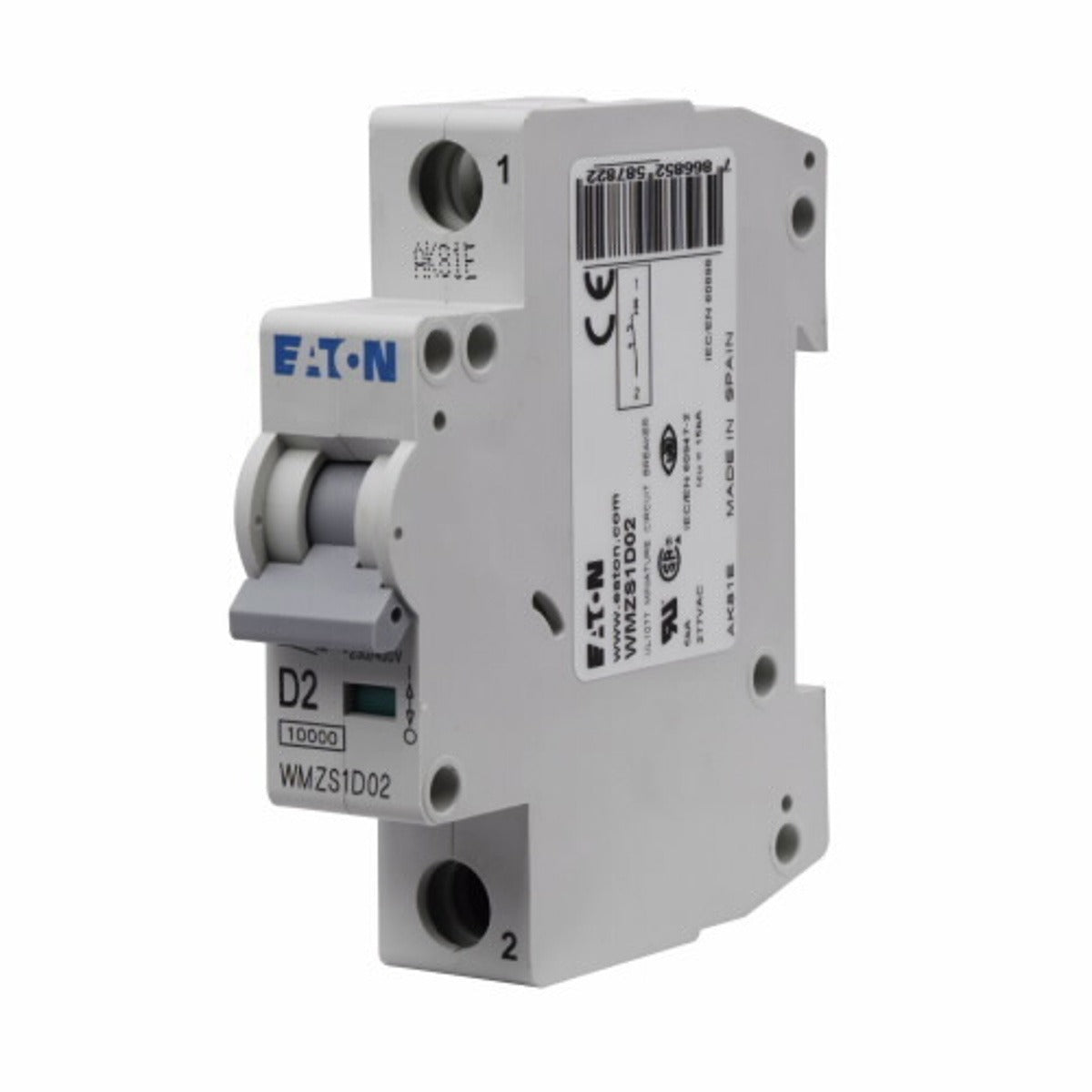

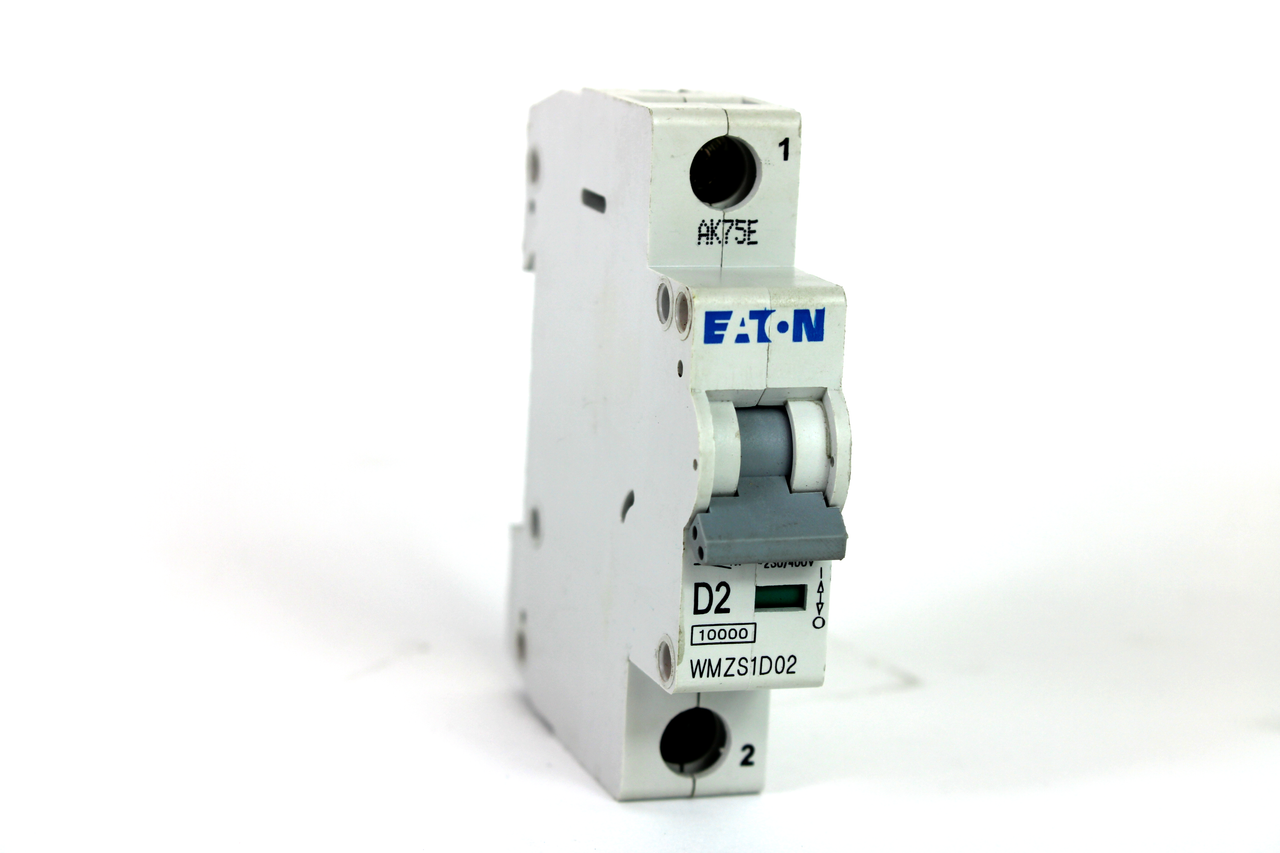

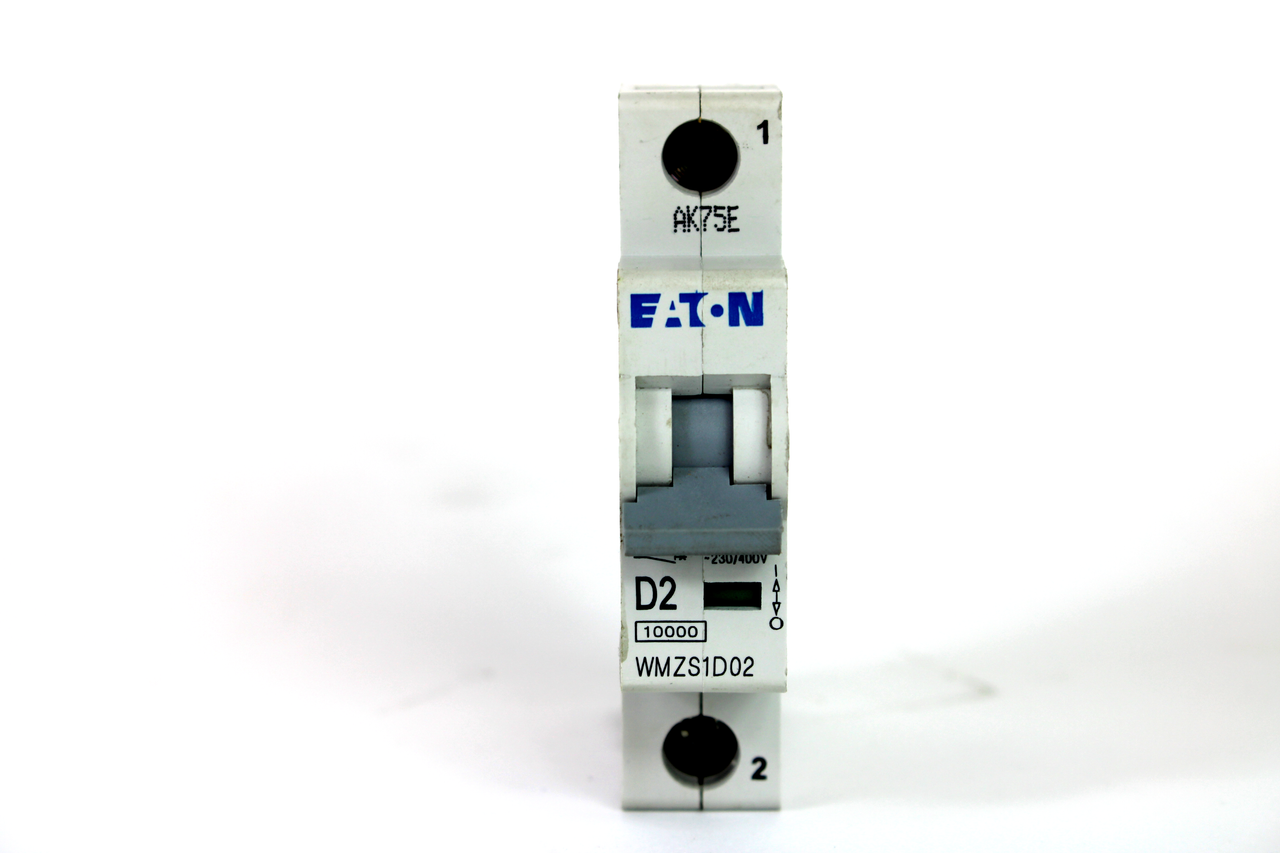

Eaton WMZS1D02 WMZS Supplementary Protector 2 A (DIN Rail) WMZS1D02

Product Description

Eaton WMZS1D02 is a WMZS series current-limiting supplementary protector rated 2 A and listed to UL 1077. The single-pole device features a D curve trip characteristic, 10 kAIC interrupt rating at 277/480 VAC, DIN-rail mounting and standard box terminals. It provides thermal/magnetic overcurrent protection for control and distribution equipment and accepts 18 to 8 AWG conductors with compact dimensions for panel installation.

• 2 A, single-pole current-limiting supplementary protector with D curve trip characteristic
• 10 kAIC interrupt rating at 277/480 VAC; UL 1077 listed; IEC 60947-2, CSA C22.2 No. 235, RoHS and CE compliant
• DIN-rail mountable with standard box/screw terminals; accepts 18 to 8 AWG; operating temperature -40 to 75 °C

Product Highlights

Current-limiting supplementary protector, 2 A, 1-pole, 10 kAIC at 277/480 VAC, DIN-rail mount, UL 1077

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: WMZS1D02
• Country of Origin: Spain
