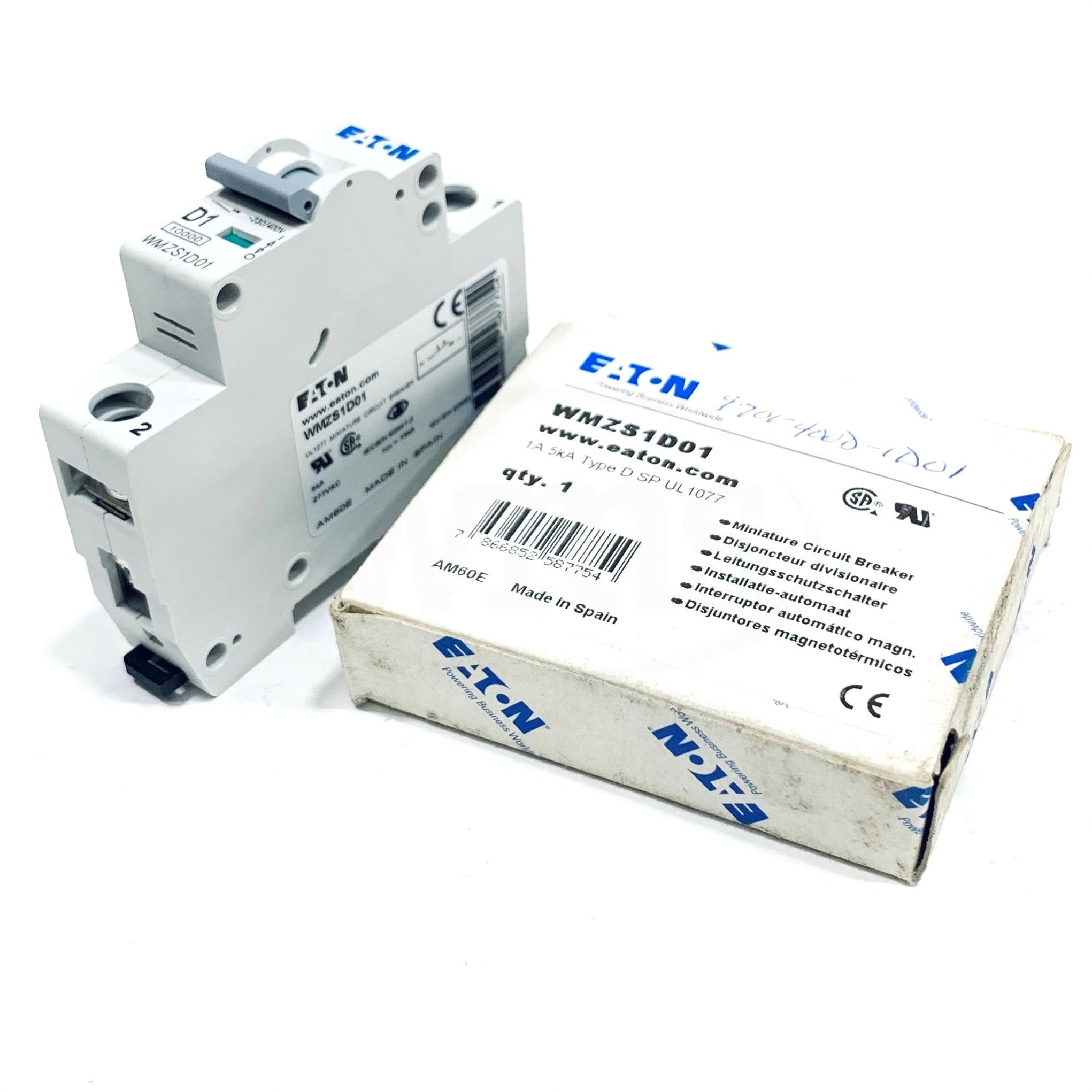

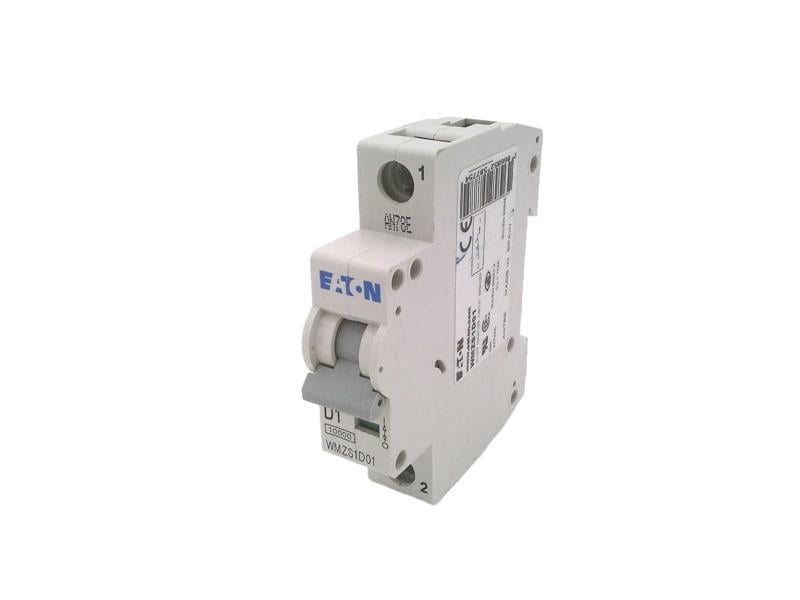

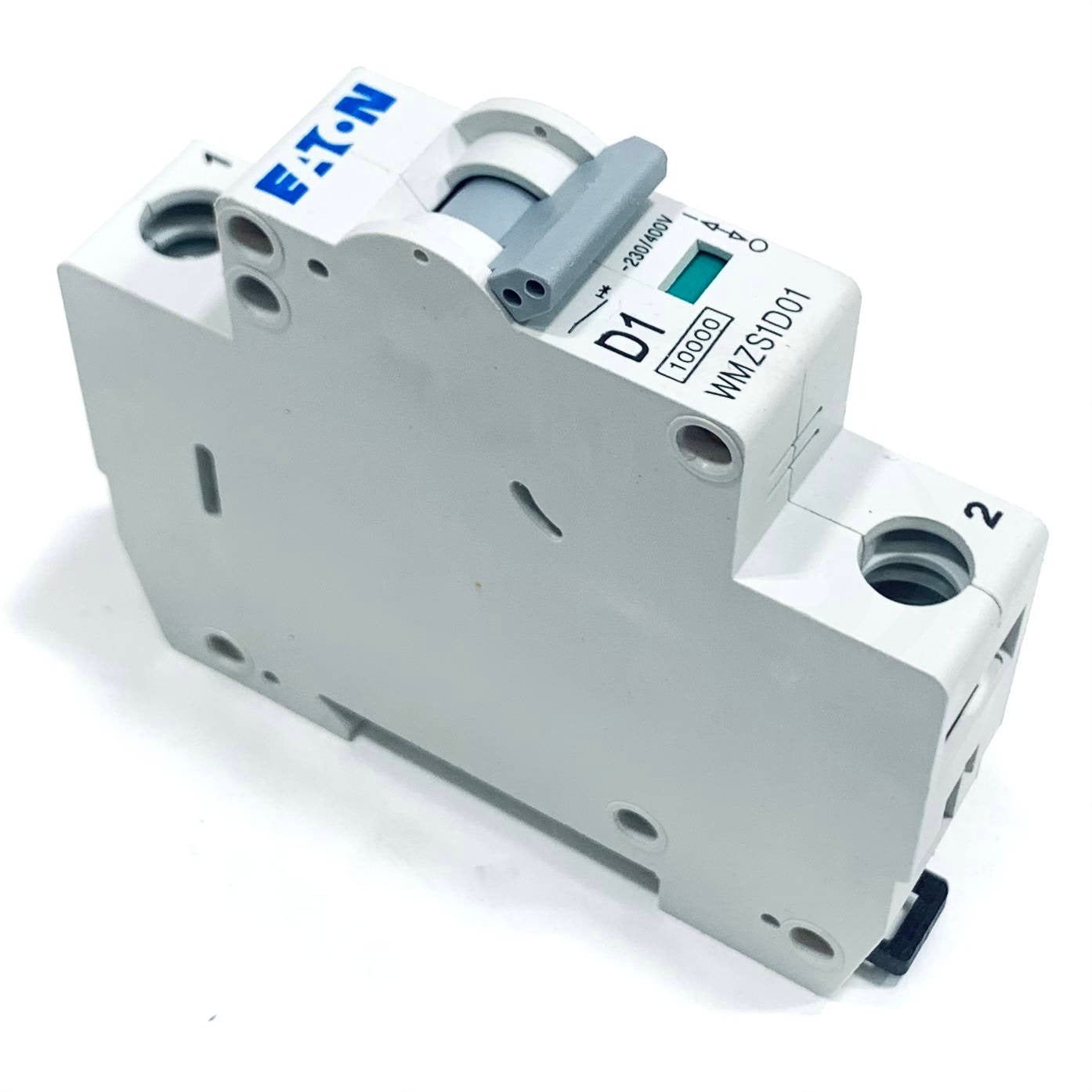

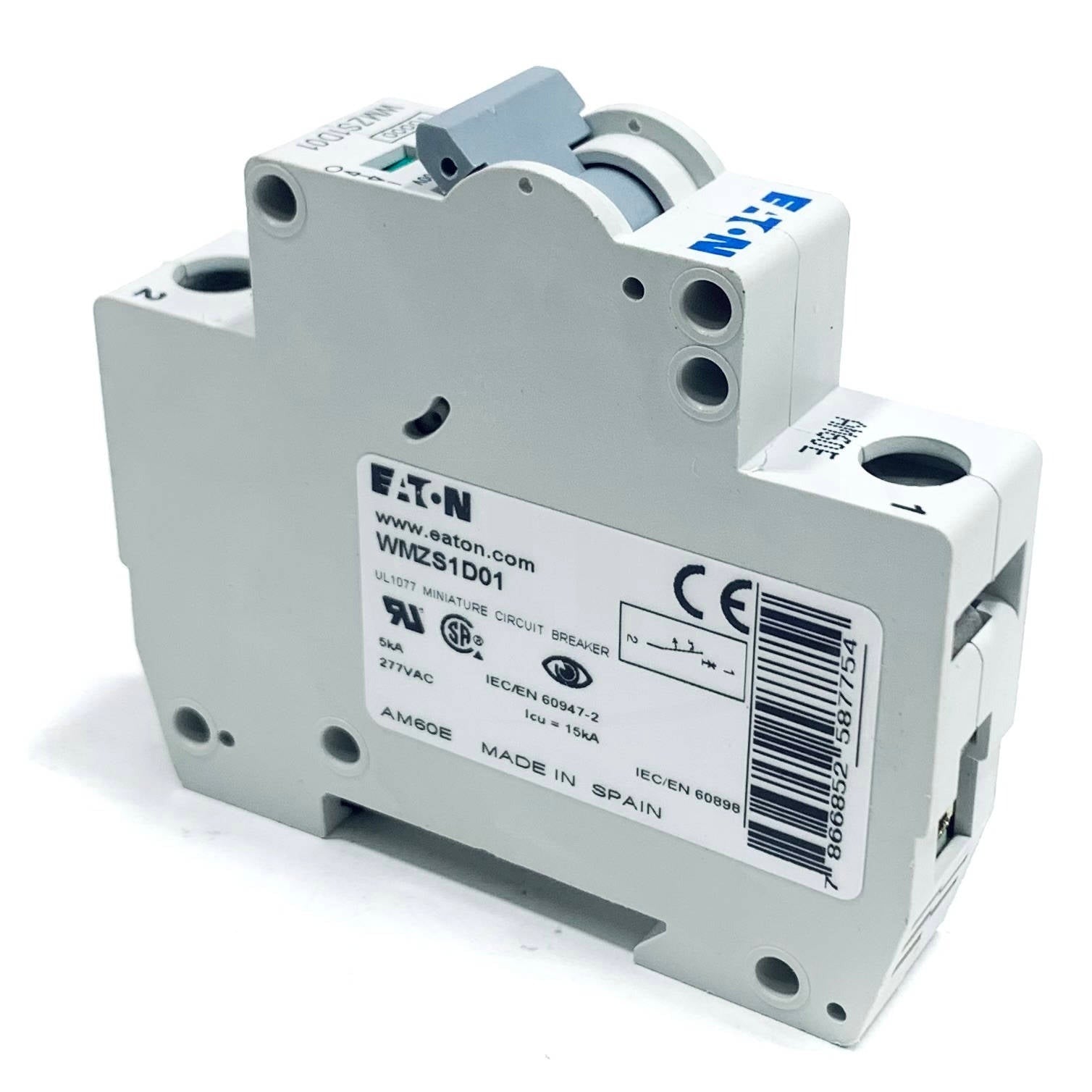

Eaton WMZS1D01 Miniature Circuit Breaker 1 A (1 Pole) FAZ-D1-1-SP

Product Description

The Eaton WMZS1D01 is a supplementary miniature circuit breaker rated 1 A and single-pole for 277/480 VAC applications. It provides thermal-magnetic overcurrent protection with a D trip curve and a 10 kAIC interrupt rating at 277/480 Vac. The unit mounts on DIN rail with screw terminal connections for 18 to 8 AWG conductors, measures 0.69 in x 3.01 in x 3.15 in, and is certified to IEC 60947-2, UL 1077, and CSA C22.2.

• Thermal-magnetic protection with D trip curve; 1 A single-pole rating
• 10 kAIC interrupt rating at 277/480 Vac; also referenced 48 VDC rating
• DIN-rail mount, screw terminal/standard box connection; accepts 18 to 8 AWG; operating -40 to 75 deg C

Product Highlights

Supplementary DIN-rail protector, 1 A, thermal-magnetic D-curve, 10 kA interrupt rating

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: WMZS1D01
• Country of Origin: Spain
