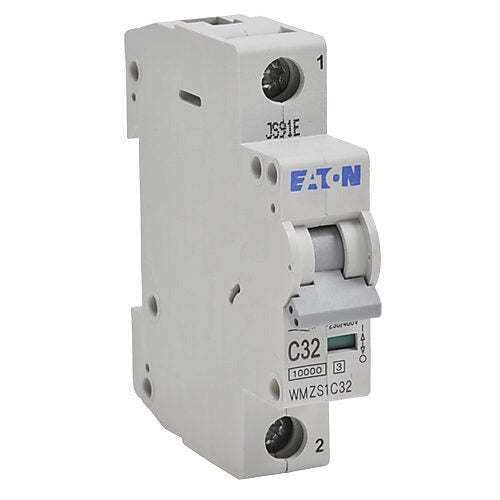

Eaton WMZS1C32 Supplementary Protector 277/480 VAC (1 Pole) FAZ-C32-1-SP

Product Description

The Eaton WMZS1C32 is a DIN-rail supplementary protector with a C-curve thermal-magnetic trip, rated 32 A and 277/480 VAC with a 10 kA interrupt capacity. It is a single-pole device with a standard box terminal connection that accepts 18 to 4 AWG conductors and mounts on 35 mm DIN rail. The unit has an IP20 nylon enclosure, module width 17.7 mm per pole, dimensions 3.15 in H x 0.69 in W x 2.36 in D, and an operating range of 23 to 104 deg F.

• Electrical ratings: 32 A, 277/480 VAC, 10 kA interrupt capacity
• Trip and configuration: C-curve thermal-magnetic trip, single-pole, trip-free design
• Mechanical and connections: DIN-rail mount, IP20 nylon enclosure, standard box terminal, accepts 18 to 4 AWG

Product Highlights

DIN-rail supplementary protector, 32 A C-curve thermal-magnetic, 10 kA interrupt, single-pole

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: WMZS1C32
• Country of Origin: China
