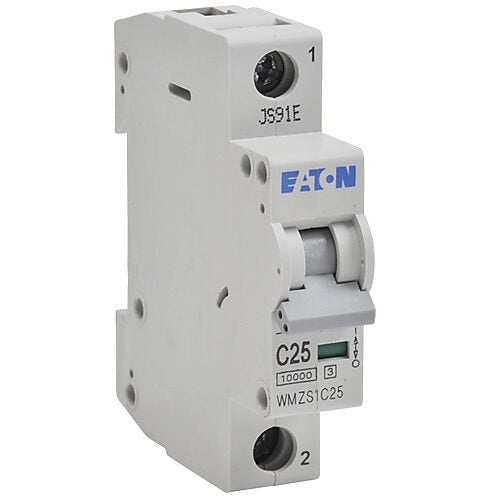

EATON Eaton WMZS1C25 Miniature Circuit Breaker 25 Amp (1 Pole) FAZ-C25-1-SP
EATON Eaton WMZS1C25 Miniature Circuit Breaker 25 Amp (1 Pole) FAZ-C25-1-SP

Eaton WMZS1C25 Miniature Circuit Breaker 25 Amp (1 Pole) FAZ-C25-1-SP

EATON
Brand: EATON
SKU: WMZS1C25
Availability: In Stock

Ships same day if ordered by 12 pm
$77.40
$77.40
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Eaton WMZS1C25 is a miniature circuit breaker (supplementary protector) rated 25 A for single-pole protection on 277/480V systems and carries a 10 kA interrupting rating at 277/480V. The device uses a C-curve thermal-magnetic trip and is designed for panel or DIN-rail installation with an IP20 enclosure. Typical applications include branch-circuit protection and supplemental protection in control panels and equipment.

  • 25 A single-pole miniature circuit breaker with C-curve thermal-magnetic trip
  • Rated for 277/480V operation with 10 kA interrupting capacity (10 kAIC at 277/480V)
  • DIN-rail mountable, IP20 nylon enclosure; accepts 18 to 4 AWG conductors

Product Highlights

Supplementary protector, UL 1077 recognized, replacement part FAZ-C25-1-SP, compact dimensions for panel mounting

Product Information

Standard Information

  • Brand: EATON
  • Manufacturer Part Number: WMZS1C25
Technical Specifications
Manufacturer
Eaton
Brand
Eaton
MPN
WMZS1C25
Catalog Number
WMZS1C25
Alternate/Replacement Part
FAZ-C25-1-SP
Series
WMZS
Product Type
Miniature circuit breaker / Supplementary protector
Number of Poles
1
Current Rating
25 A
Voltage Rating
277/480 V AC
Interrupting Capacity
10 kA (10 kAIC at 277/480V)
Tripping Characteristics
C curve (thermal-magnetic)
Mounting Type
DIN Rail
Connection Type
Standard box terminal
Wire Size
18 to 4 AWG
Enclosure Rating
IP20
Material
Nylon
Dimensions
3.15 in H x 0.69 in W x 2.36 in D
Height
3.15 in
Width/Length
0.69 in
Depth
2.36 in
Temperature Rating
23 to 104 °F
Standards/Certifications
UL 1077 recognized (File E162396); CSA (file 245545); IEC 60947-2 dual rated
RoHS Compliant
No
Product Status
Retired (05/2016)
