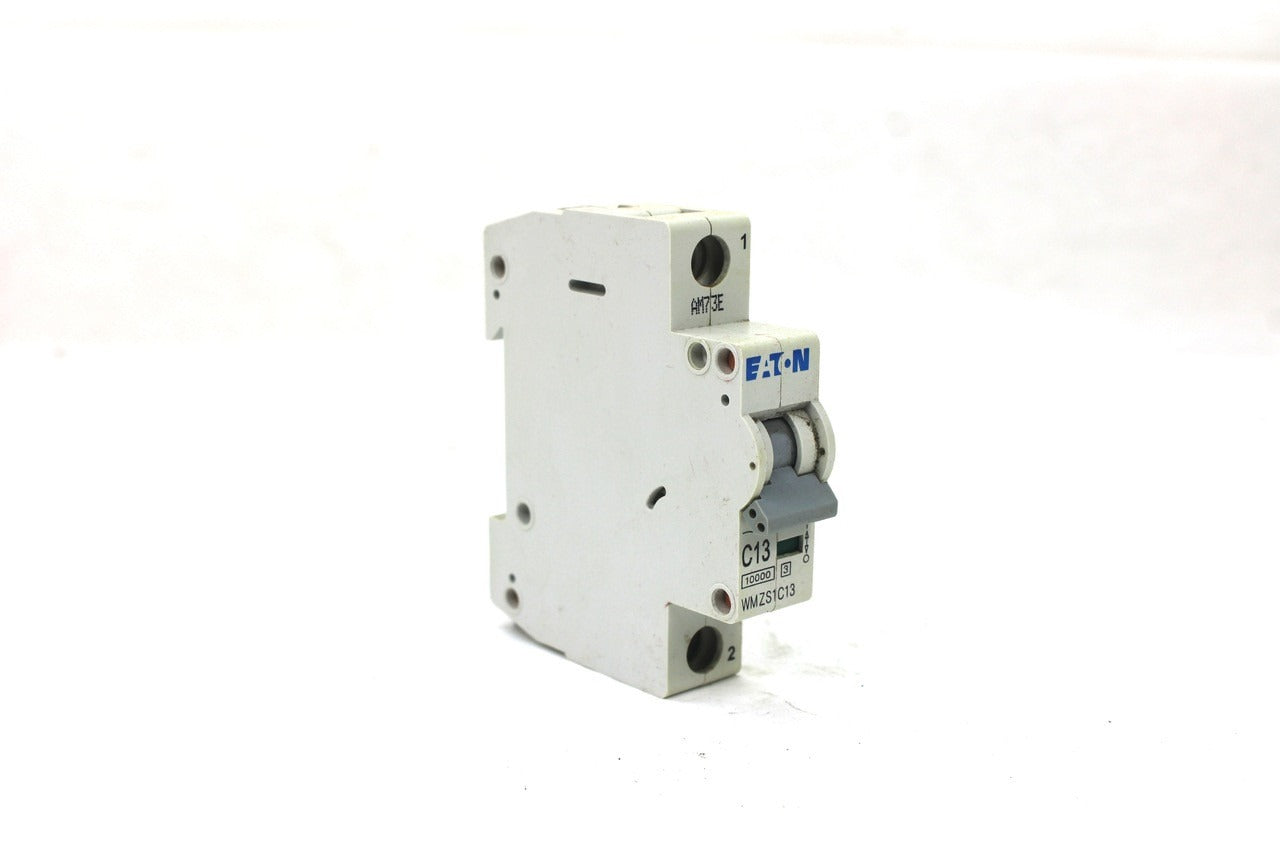

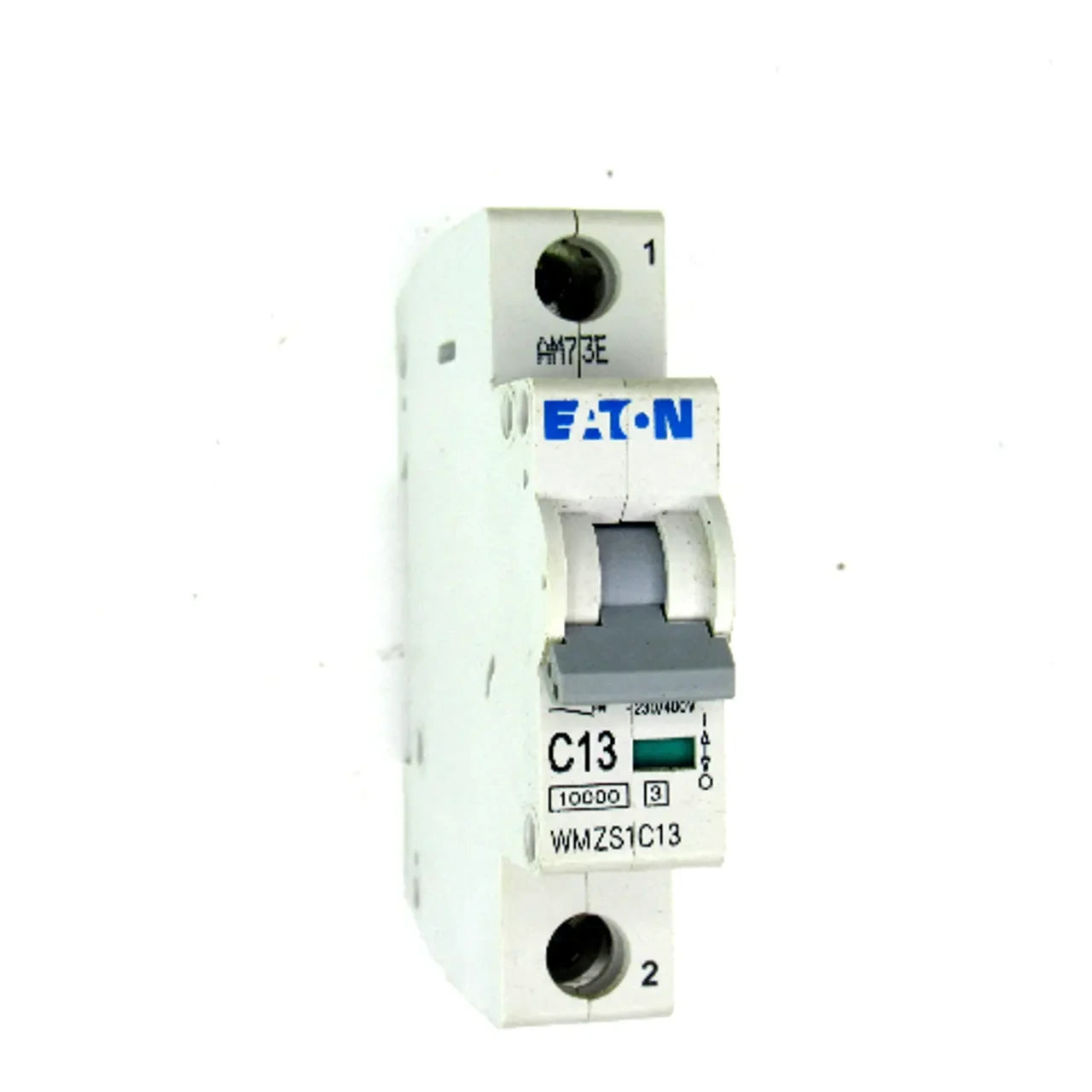

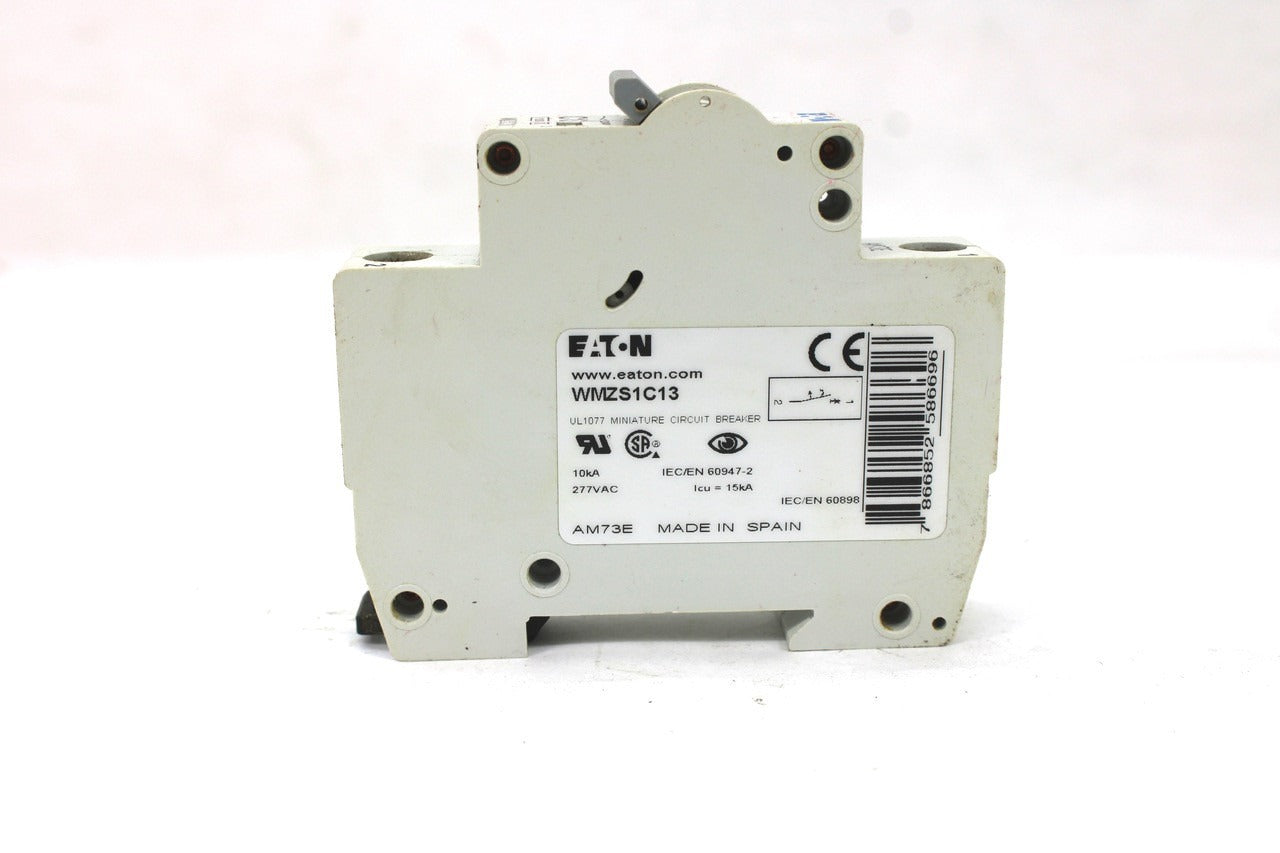

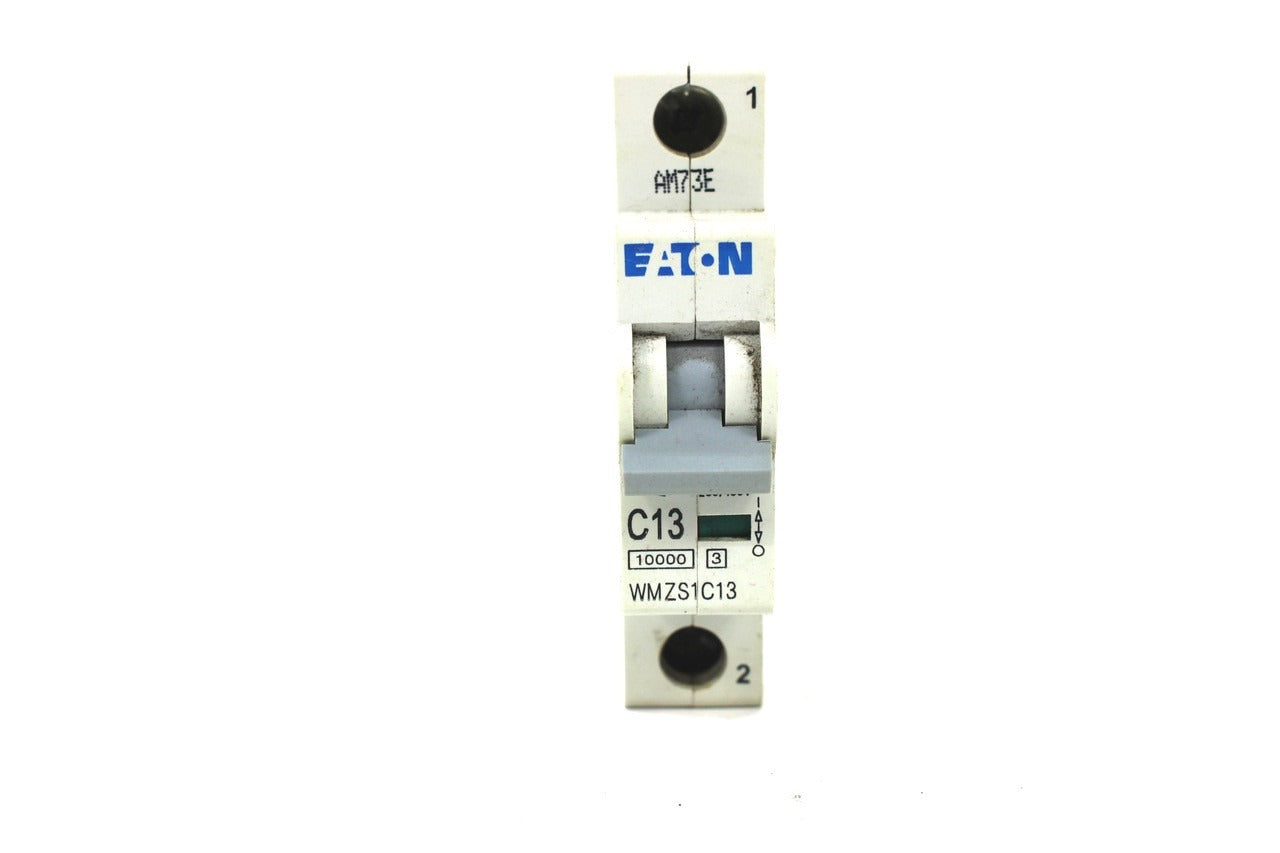

Eaton WMZS1C13 UL 1077 WMZS DIN rail 13 A (1 pole) FAZ-C13-1-SP

Product Description

Eaton WMZS1C13 is a UL 1077 supplementary protector (WMZS series) rated 13 A, single pole, designed for DIN rail mounting in control panel and motor control applications. It provides C-curve thermal-magnetic overcurrent protection with a 10 kAIC interrupting rating at 277/480 Vac and standard box terminal connections compatible with 18 to 4 AWG. The unit features a trip-free design and compact module dimensions for panel assemblies.

• 13 A, 1-pole miniature circuit breaker with C-curve thermal-magnetic trip characteristic
• 10 kAIC interrupting rating at 277/480 Vac; certified to UL 1077, CSA C22.2 No. 235, IEC 60947-2; CE marked and RoHS compliant
• DIN rail mountable with standard box terminals; accepts 18 to 4 AWG wiring; IP20 enclosure and compact module width for panel mounting

Product Highlights

Supplementary DIN-rail protector, 13 A, C-curve thermal-magnetic trip, 10 kAIC interrupt, trip-free design

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: WMZS1C13
• Country of Origin: Spain
