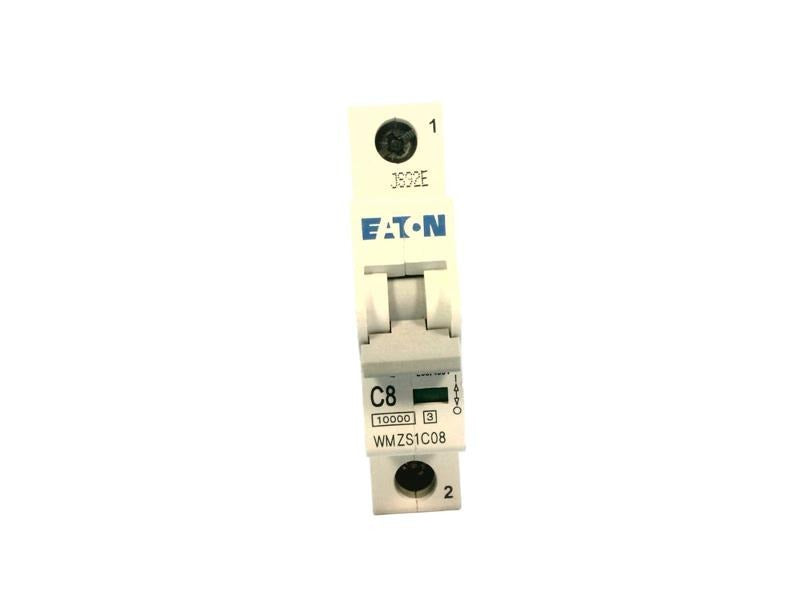

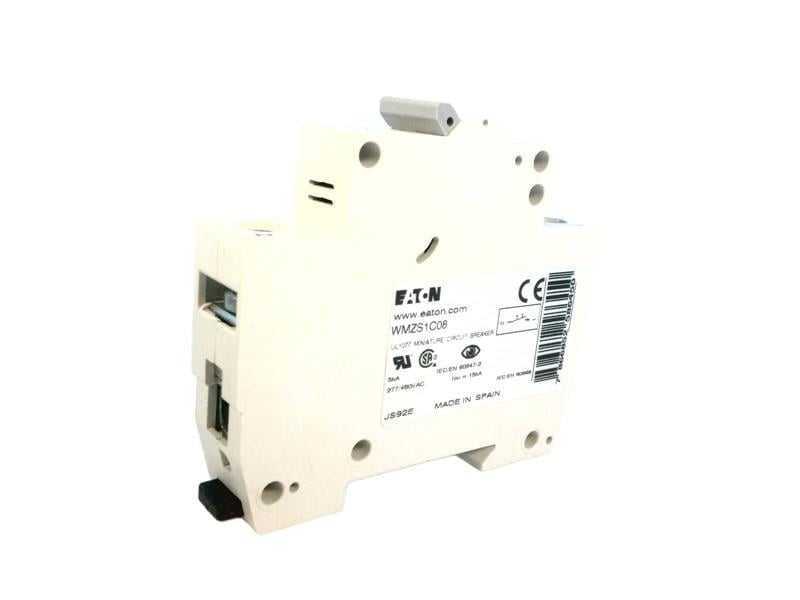

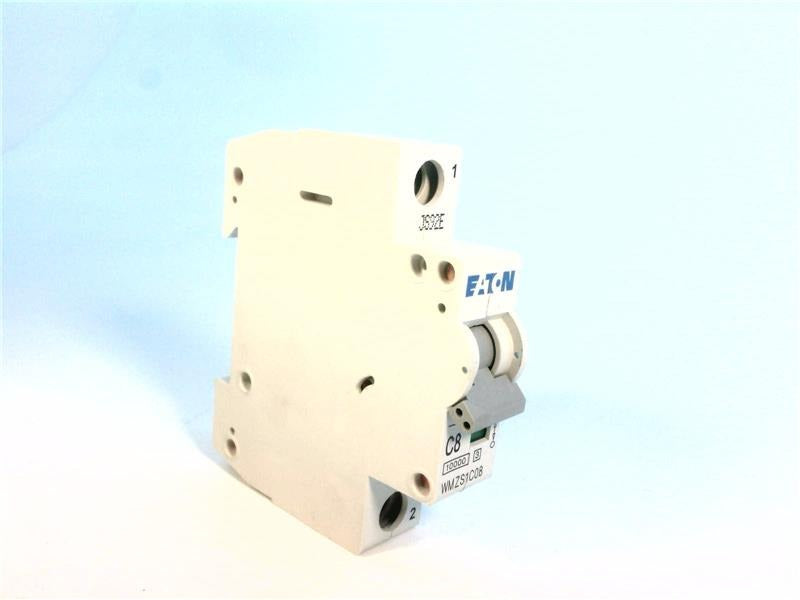

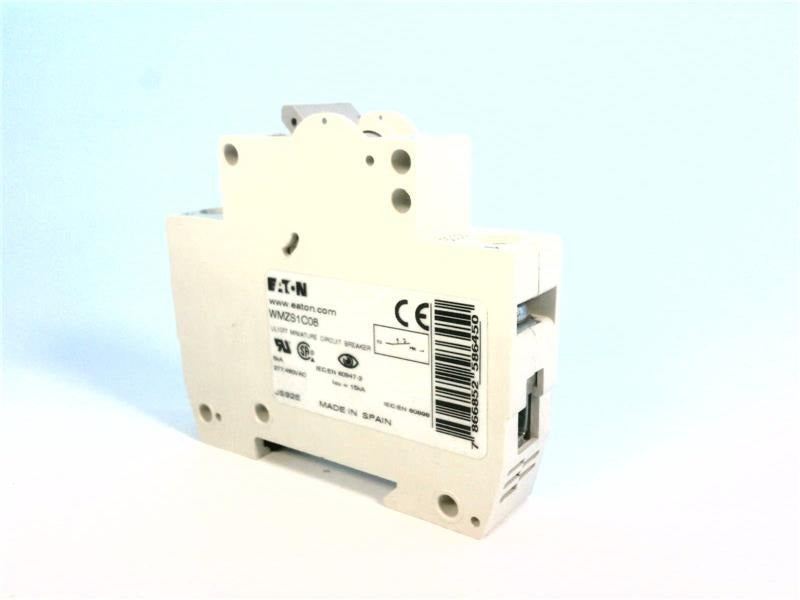

Eaton WMZS1C08 Miniature Circuit Breaker 8 A (1 Pole) FAZ-C8-1-SP

Product Description

Eaton WMZS1C08 is a miniature circuit breaker rated 8 A and configured as a single-pole device for use on 277/480 V AC systems, providing overcurrent protection with a 10 kAIC interrupting rating. The device meets UL 1077, IEC 60947-2, and CSA C22.2 No. 235 standards and is RoHS compliant. Typical applications include branch and control circuit protection in commercial and industrial panels.

• 8 A amperage, single-pole configuration, voltage rating 277/480 V AC
• 10 kAIC interrupting capacity; standards: UL 1077, IEC 60947-2, CSA C22.2 No. 235; RoHS and CE marked
• Thermal-magnetic trip with Type C characteristic, DIN-rail mount (35 mm), toggle actuator, screw terminal connections (wire size 18 to 8 AWG)

Product Highlights

8 A single-pole DIN-rail miniature circuit breaker with 10 kA interrupt rating and thermal-magnetic Type C trip; UL 1077/IEC/CSA certified

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: WMZS1C08
• Country of Origin: United States
