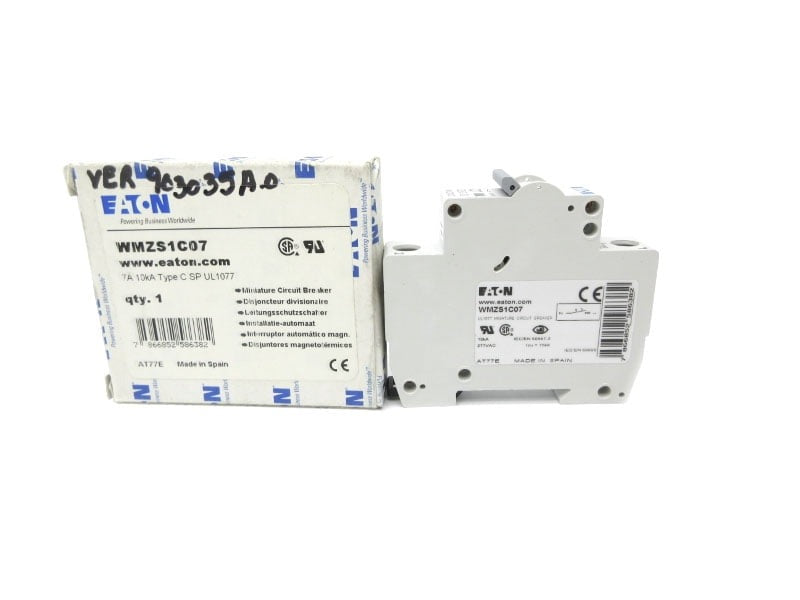

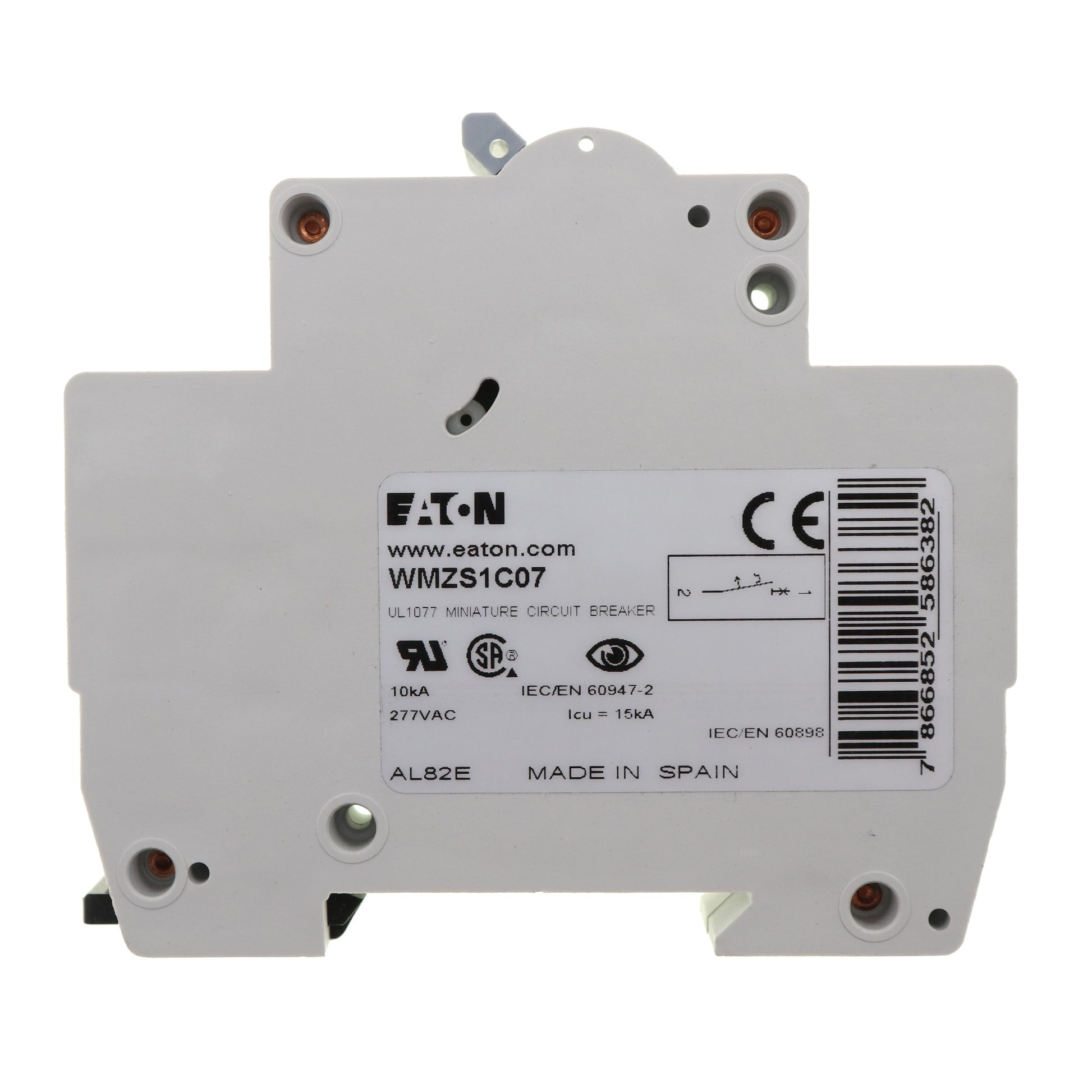

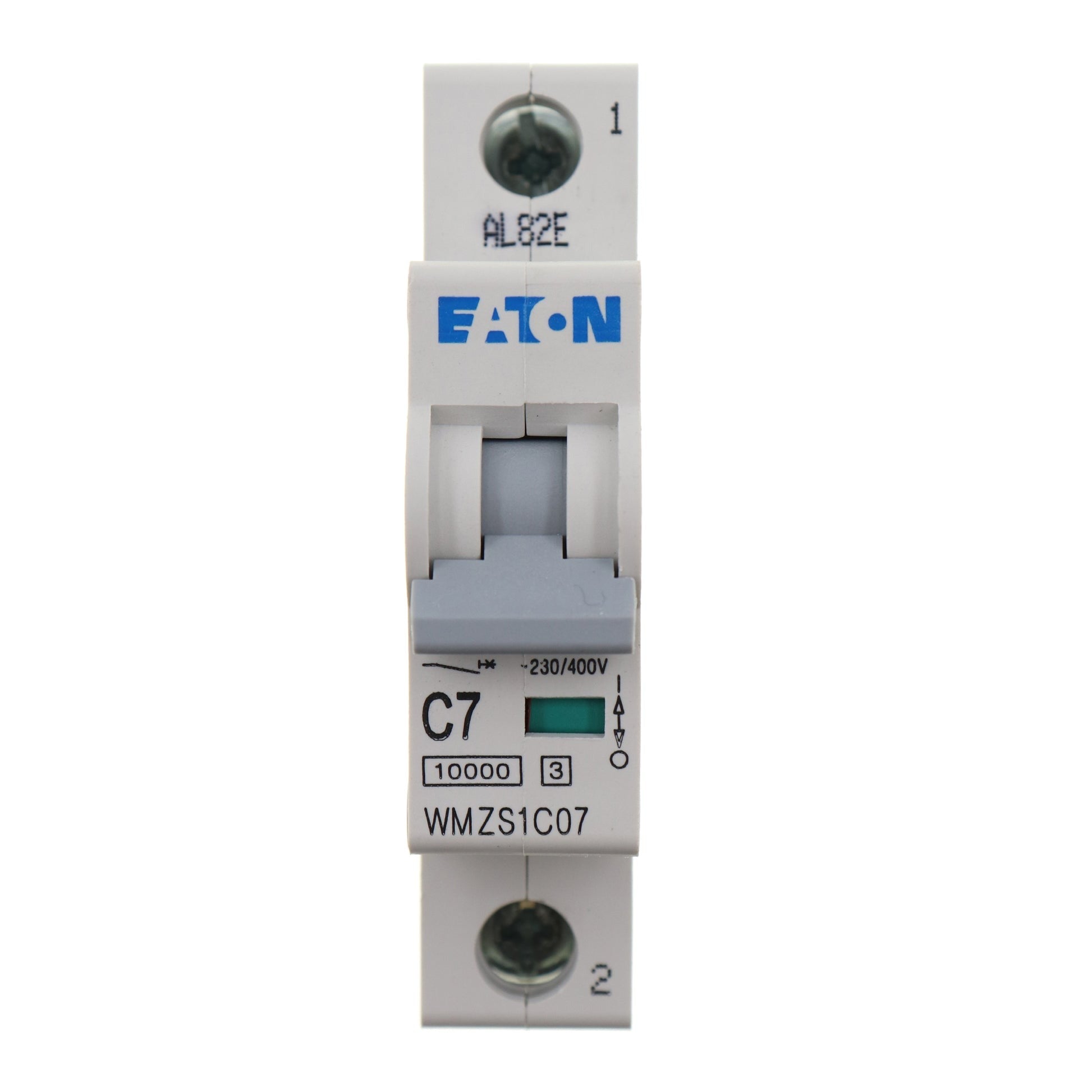

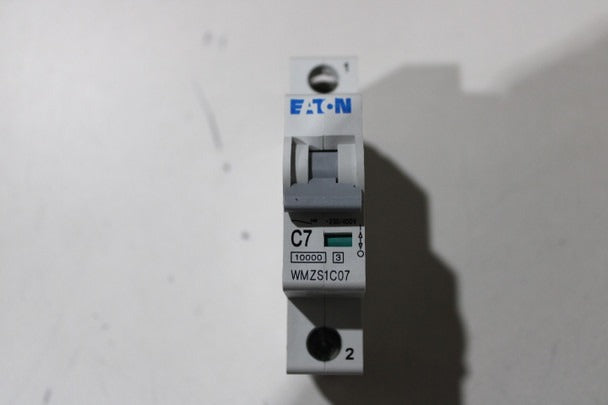

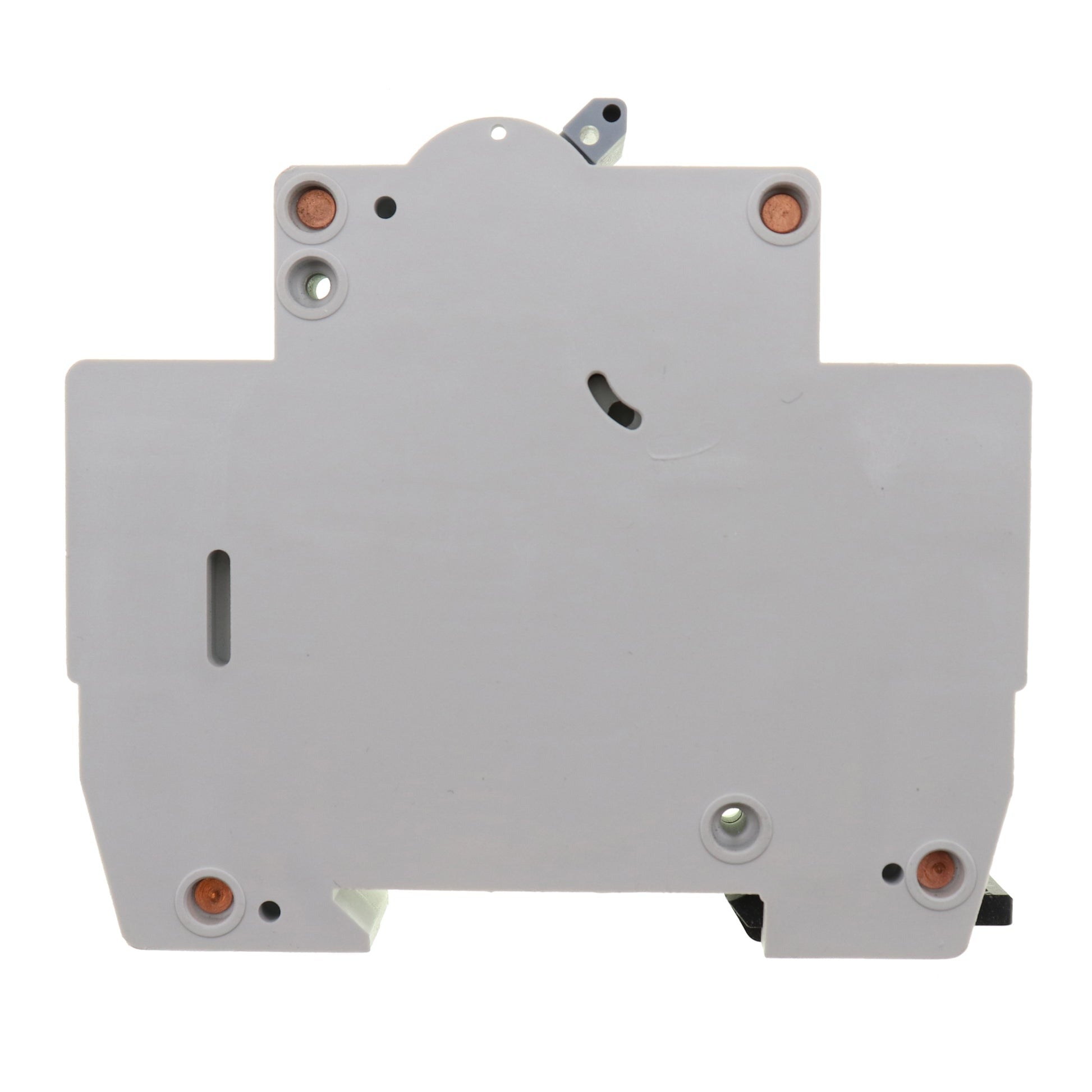

Eaton WMZS1C07 UL 1077 WMZS Din Rail 7 A (1 Pole)

EATON
Brand: EATON
SKU: WMZS1C07
Availability: In Stock

Ships same day if ordered by 12 pm
$77.40
$77.40
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

Eaton WMZS1C07 is a UL 1077 supplementary protector (WMZS series) that provides current-limiting overcurrent protection with a 7 A rating. The single-pole, C-curve device features thermal-magnetic trip characteristics, a 10 kAIC interrupt rating at 277/480 V, and DIN-rail mounting with standard box terminals. Typical applications include control power transformers, relays, contactor coils, PLC I/O points, lighting circuits, and power supplies.

  • Current limiting design with 10 kAIC interrupt rating at 277/480 V
  • Thermal-magnetic trip, C curve, single-pole 7 A rating
  • DIN-rail mount with standard box terminals; wire size 18 to 8 AWG

Product Highlights

Supplementary, current-limiting DIN-rail protector; 7 A, 10 kAIC, thermal-magnetic, 1 pole.

Product Information

Standard Information

  • Brand: EATON
  • Manufacturer Part Number: WMZS1C07
  • Country of Origin: Mexico
Technical Specifications
Brand
Eaton
Manufacturer Part Number
WMZS1C07
Series
WMZS
Type
Supplementary protector, current limiting
Number of Poles
1 Pole
Amperage Rating
7 A
Voltage Rating
277/480 V AC
Interrupt Rating
10 kAIC at 277/480 V
Trip Type
Thermal/magnetic
Trip Curve
C curve
Mounting Type
DIN rail
Mounting Rail
35 mm DIN rail mount
Terminal Type
Standard box terminals (screw)
Wire Size
18 to 8 AWG
Material
Nylon
Operating Temperature
-40 to 75 deg C
Standards/Approvals
UL 1077; CSA C22.2 No. 235; RoHS Compliant; CE Marked
Trip Setting
5 to 10 x rated current (low confidence — typical trip multiplier statement; verify with datasheet)
Applications
Control power transformers, relays, contactor coils, PLC I/O, lighting circuits, power supplies, computers, electronic equipment protection
