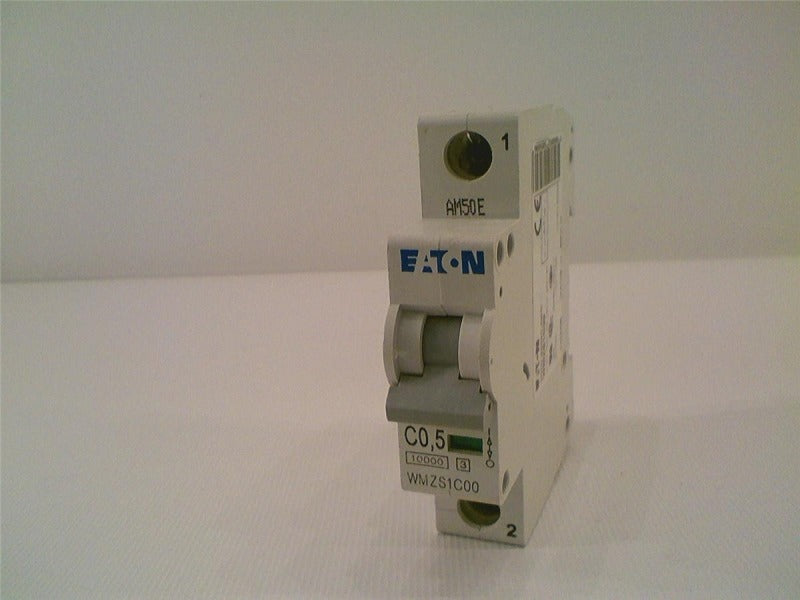

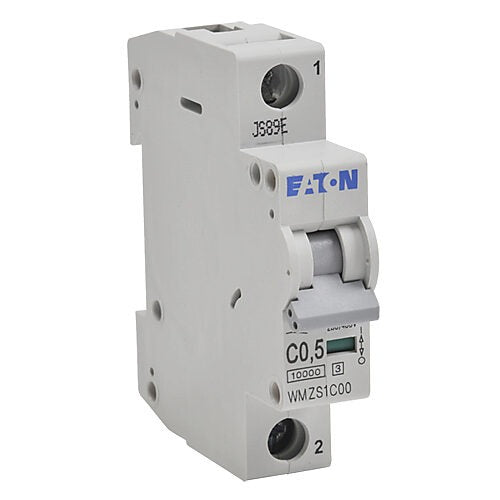

Eaton WMZS1C00 UL 1077 WMZS Din Rail Supplementary Protector 0.5 A (1 Pack) FAZ-C0P5-1-SP

Product Description

Eaton WMZS1C00 is a single-pole WMZS series supplementary protector rated 0.5 A for 277/480 VAC, designed for DIN-rail panel and control applications. It provides thermal-magnetic, current-limiting protection with a 10 kA interrupting rating and Type C trip characteristics. The unit features a toggle actuator with trip indicator, screw terminal connections (18 to 8 AWG), nylon housing, and operates from -40 to 75°C while meeting UL 1077, IEC 60947-2, and CSA C22.2 No. 235 standards.

• Single-pole, 0.5 A supplementary protector for 277/480 VAC with 10 kA interrupting rating
• Thermal-magnetic, current-limiting design with Type C trip curve; toggle actuator and trip indicator
• DIN-rail mount (35 mm), screw terminal connections (18 to 8 AWG), nylon housing, -40 to 75°C operating range

Product Highlights

Single-pole 0.5 A DIN-rail supplementary protector with 10 kA interrupting capacity and thermal-magnetic trip

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: WMZS1C00
• Country of Origin: Spain
