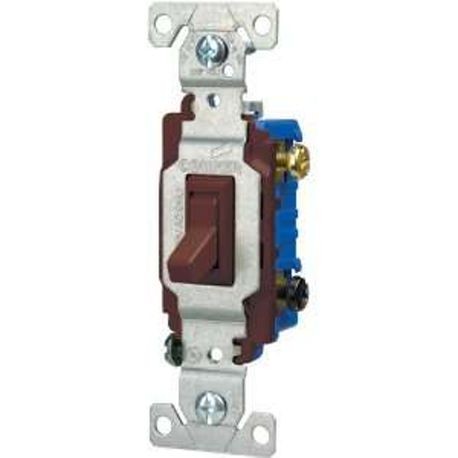

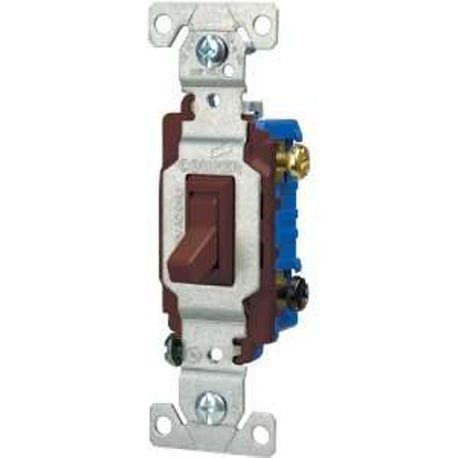

Eaton Wiring Devices 1303-7B 3-Way Toggle Switch 120 VAC 15 A

Product Description

The Eaton Wiring Devices 3-Way Toggle Switch, model number 1303-7B, is designed for residential use at a voltage rating of 120 VAC and a maximum current of 15 A. This toggle switch features a longer and wider strap that provides increased contact area with wallboard, helping to eliminate floating installations.

• Patented wire stripper for fast installation of #14 and #12 wire
• Push-in terminals for #14 solid wire only
• Side wire terminals accept up to #10 solid or stranded wire

Product Highlights

Includes a unique cam action mechanism for quiet operation and enhanced durability. The unbreakable housing ensures reliability and minimizes job site breakage. For added convenience, it includes a patented built-in wire looper and tri-combo screws for versatile installation.

Product Information

Standard Information

• Brand: Eaton Wiring Devices
• Model: 1303-7B

Technical Specifications

• Type: 3-Way
• Color: Brown
• Dimensions: 0.75 in W x 0.88 in D
• Voltage Rating: 120 VAC
• Amperage Rating: 15 A
• Terminal Type: Screw
• Application: Residential
• Environmental Conditions: -20 to 60 deg C
• Standard & Approvals: cULus Listed to UL20, File No. E18704, NOM 426 Certified, RoHS Compliant
