EATON V48M28T4916 TRANSFORMER DISTRIBUTION 480VAC 150KVA

Product Description

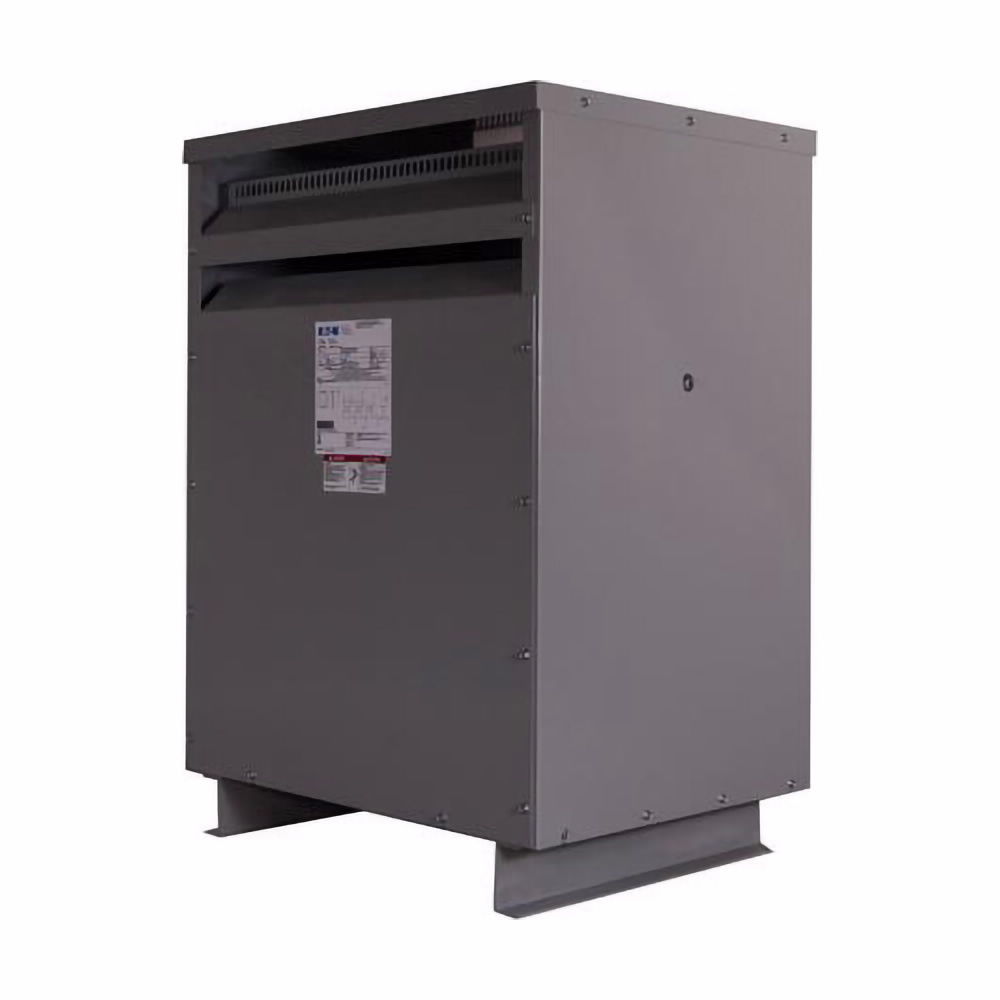

The EATON V48M28T4916 transformer is a Type DT-3 Dry Energy Efficient Ventilated Distribution Transformer. It operates at 480 VAC primary and has a secondary voltage of 208Y/120 VAC with a power rating of 150 kVA. This transformer is suitable for a variety of applications in power distribution and controls.

• Includes a bonding/grounding bar for compliance with NEC standards.
• Self-cooled design ensuring efficient operation.
• Constructed with aluminum windings for improved efficiency.

Product Highlights

This transformer is ideal for indoor applications, offering flexibility in mounting options (floor, upright, or wall). Its dimensions are thirty-one and one-half inches by thirty-four and one-half inches by fifty-one inches.

Product Information

Standard Information

• Manufacturer: EATON
• Type: DT-3 Dry Energy Efficient Ventilated

Technical Specifications

• Power Rating: 150 kVA
• Primary Voltage: 480 VAC
• Secondary Voltage: 208Y/120 VAC
• Frequency Rating: 60 Hz
• Efficiency: 98.3%
• Insulation Class: 220 degrees C
• Temperature Rating: 150 degrees C
• Mounting Type: Floor/Upright/Wall
