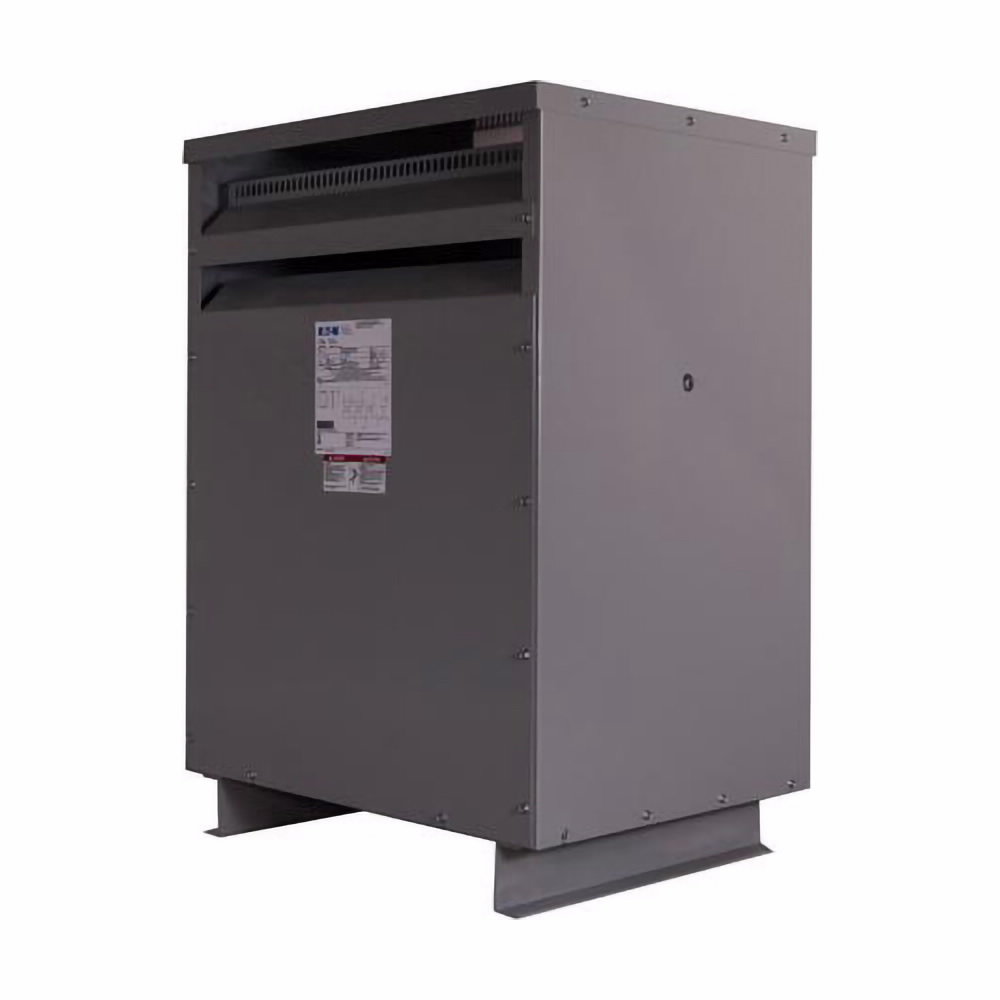

EATON V48M28T4516 TRANSFORMER DISTRIBUTION 480VAC 45KVA

Product Description

The EATON V48M28T4516 is a transformer designed for general purpose applications. This type DT-3 dry type energy efficient ventilated transformer serves as a critical component in electrical distribution systems. The transformer supports an input voltage of four hundred eighty volts alternating current and provides a secondary output of two hundred eight volts Y versus one hundred twenty volts. The MPN V48M28T4516 ensures reliability in power distribution with a power rating of forty-five kilovolt-amperes.

• Complies with DOE 2016 efficiency standards.
• UL verified efficiency with certification mark.
• Equipped with a factory-installed bonding ground bar.

Product Highlights

This transformer is suitable for indoor installation with minimal required clearance and features aluminum windings for efficient operation.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part No: V48M28T4516

Technical Specifications

• Type: Type DT-3 Dry Type Energy Efficient Ventilated
• Power Rating: 45 kVA
• Primary Voltage: 480 VAC
• Secondary Voltage: 208Y/120 VAC
• Frequency Rating: 60 Hz
• Temperature Rating: 150 degrees C
• Insulation Class: 220 degrees C
• Dimensions: 21.13 in L x 24.88 in W x 36.88 in H
• Enclosure Type: NEMA 2
• Connection Type: Lug
• Number of Taps: 6
• Efficiency: 0.977 %
• Housing Material: Steel
• Mounting Type: Floor/Upright/Wall
