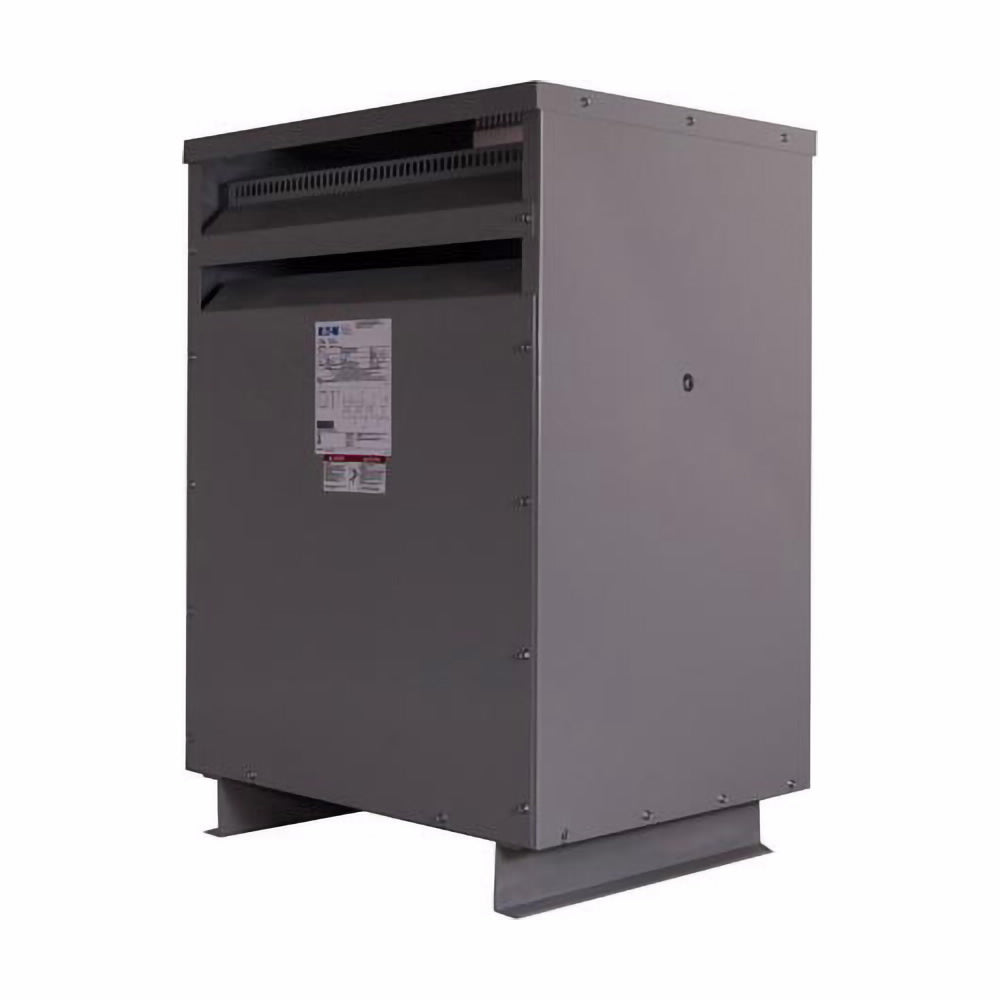

EATON V48M28T1516 TRANSFORMER DISTRIBUTION 480VAC 15KVA

Product Description

The Eaton V48M28T1516 is a distribution transformer designed for commercial applications. This transformer operates at a primary voltage of four hundred eighty volts AC and provides a secondary voltage of two hundred eight Y/one hundred twenty volts. It is rated for a power capacity of fifteen kVA and designed to meet DOE energy efficiency standards.

• Type DT-3 Dry Type Energy Efficient Transformer
• UL approved for reduced clearance installation
• Equipped with a factory-installed bonding ground bar

Product Highlights

Ideal for use in electrical distribution systems where space and efficiency are important. The efficient design includes aluminum windings and a NEMA 2 enclosure, complying with current energy standards.

Product Information

Standard Information

• Manufacturer: Eaton
• UPC: 786680147517

Technical Specifications

• Primary Voltage: 480 VAC
• Secondary Voltage: 208Y/120 VAC
• Power Rating: 15 kVA
• Frequency Rating: 60 Hz
• Insulation Class: 220 degrees C
• Temperature Rating: 150 degrees C rise
• Number of Taps: 6
• Dimensions: 17.75 in L x 21.88 in W x 28 in H
• Efficiency: 0.97
• Circuit Type: 939 Frame
• Enclosure Type: NEMA 2
