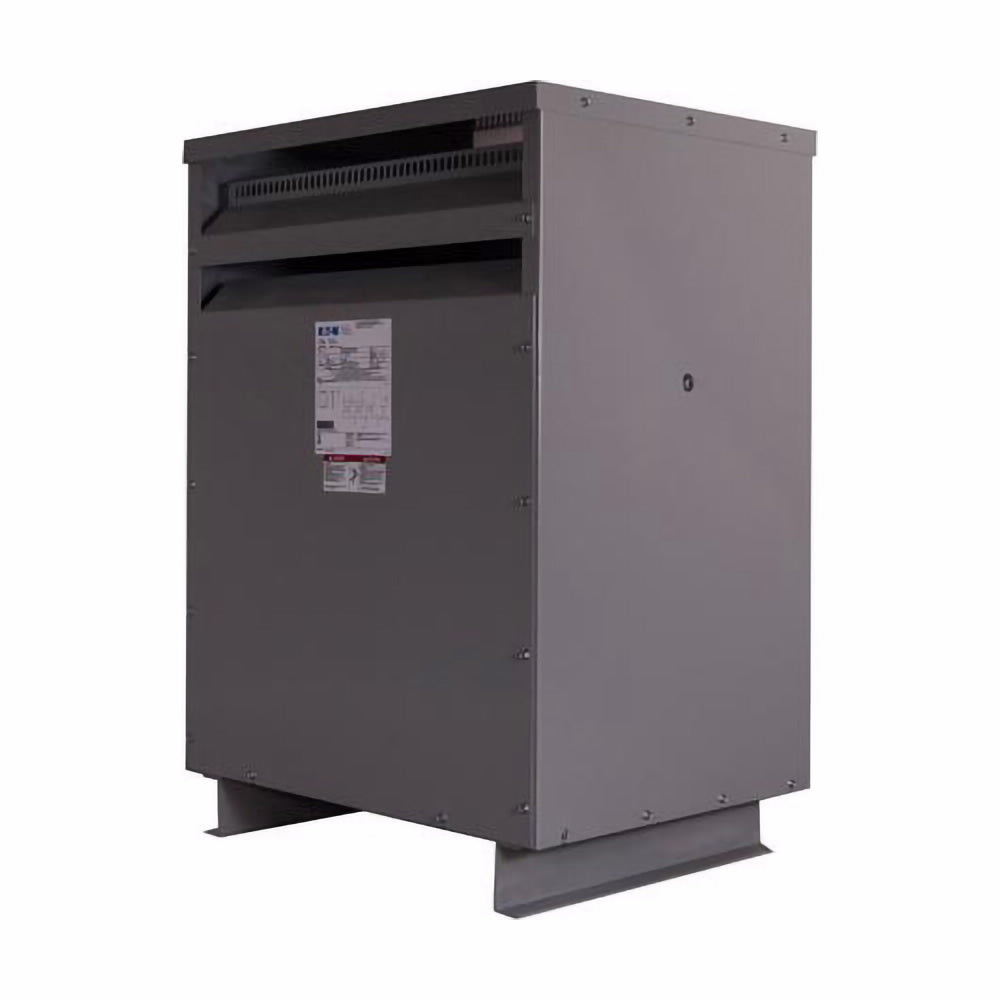

EATON V48M28T1216 TRANSFORMER DISTRIBUTION 480VAC 112.5KVA

Product Description

The Eaton V48M28T1216 is a dry type transformer designed for distribution applications. It provides a primary voltage of four hundred eighty VAC and a secondary voltage of two hundred eight Y/one hundred twenty VAC with a power rating of one hundred twelve point five kVA. This transformer is suitable for use in commercial buildings and has an efficiency rating that meets DOE 2016 standards.

• Type DT-3 Energy Efficient Ventilated Design
• UL approved for minimum two inch clearance for installation
• Dimensions are thirty-one and one-half inches by thirty-four and one-half inches by fifty-one inches

Product Highlights

This transformer is built to meet energy efficiency standards, making it ideal for various industrial applications.

Product Information

Standard Information

• MPN: V48M28T1216
• Brand: EATON
• Manufacturer: EATON

Technical Specifications

• Power Rating: 112.5 kVA
• Phase: 3
• Primary Voltage: 480 VAC
• Secondary Voltage: 208Y/120 VAC
• Frequency Rating: 60 Hz
• Insulation Class: 220 degrees C
• Efficiency: 0.982 %
• Dimensions: 31.5 in L x 34.5 in W x 51 in H
• Mounting Type: Floor/Upright/Wall
• Enclosure Type: NEMA 2
• Connection Type: Lug
• Temperature Rating: 150 degrees C
• Special Features: Fungus-resistant varnished core and coil
