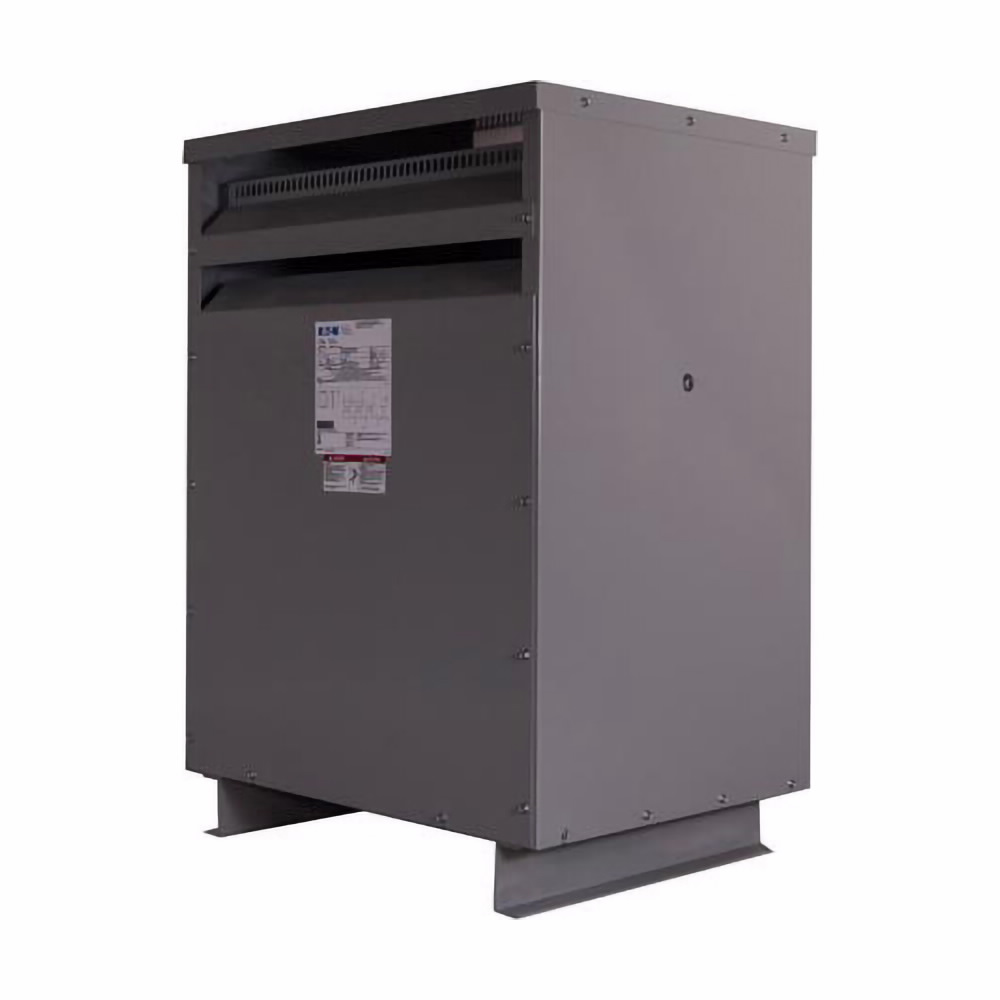

Eaton V48M22T4516 45KVA XFMR 3PH 480V

Product Description

The Eaton V48M22T4516 is a 45 kVA ventilated transformer suitable for various applications. It operates with a primary voltage of 480V delta and a secondary voltage of 240V delta with a 120V midtap. This transformer is designed for reliable performance in commercial, institutional, and industrial settings.

• General purpose ventilated design
• Equipped with NEMA 2 enclosure
• Energy-efficient with DOE 2016 compliance

Product Highlights

The Eaton V48M22T4516 provides stable power distribution for essential operations. Its energy-efficient design contributes to reduced operating costs while meeting sound level requirements.

Product Information

Standard Information

• Brand: Eaton
• Manufacturer: Cutler-Hammer / Eaton

Technical Specifications

• Power Rating: 45 kVA
• Primary Voltage: 480 V
• Secondary Voltage: 240 VAC Delta / 120 VAC Midtap
• Frequency Rating: 60 Hz
• Number of Phases: 3 Phase
• Enclosure Type: NEMA 2
• Dimensions: 21.13 in L x 24.88 in W x 36.88 in H
• Weight: 426 lb
• Insulation Type: Class T/220 C
• Tap Size: 2 at +2.5%, 4 at -2.5%
• Application: General Purpose, Indoor and Outdoor Applications
• Standards/Approvals: UL Listed, cUL Listed
• Temperature Rating: 150 degrees C
