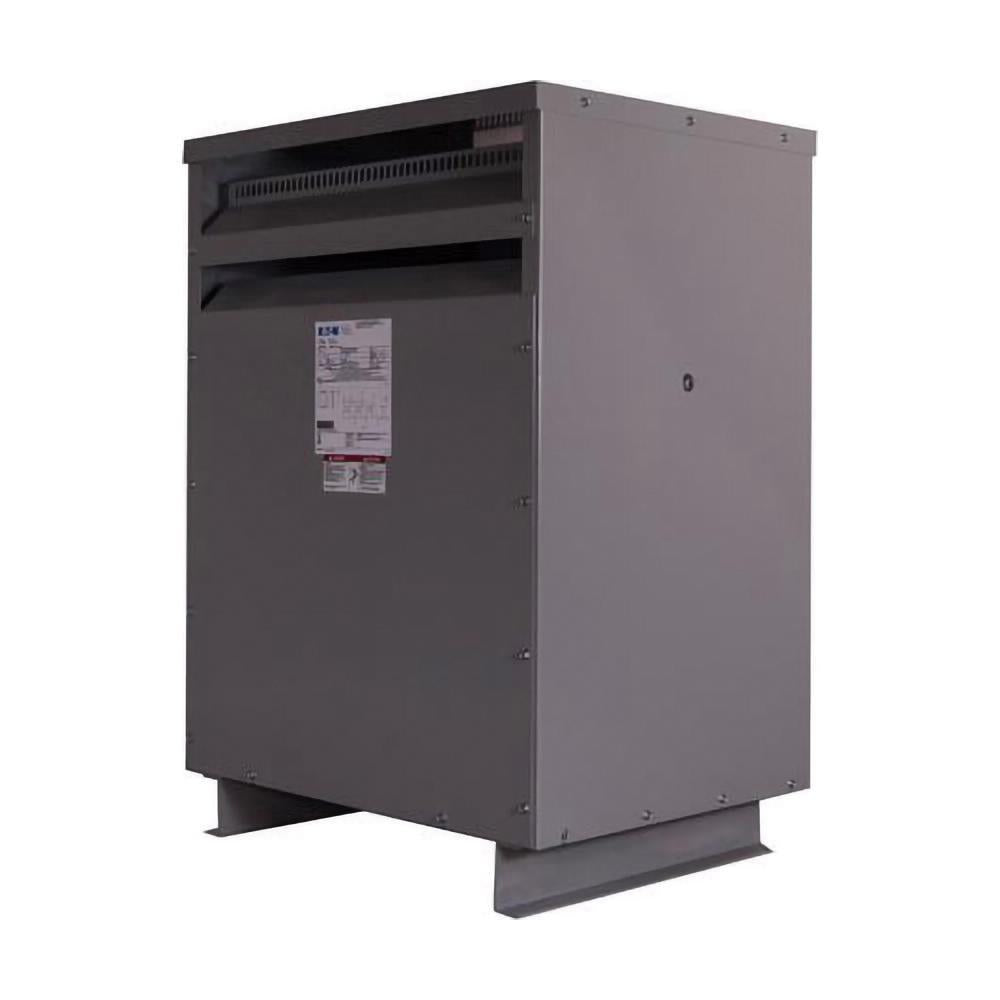

EATON V48M22T3716 Ventilated Transformer 480 V Primary 120/240 V Secondary 37.5 kVA

Product Description

The EATON V48M22T3716 is a dry type distribution transformer. It provides a primary voltage of four hundred eighty volts and a secondary voltage of one hundred twenty/ two hundred forty volts. This transformer has a power rating of thirty-seven point five kilovolt-amperes and operates at sixty hertz.

• Self-cooled two-winding design
• Complies with ANSI, NEMA, and IEEE standards
• Options for floor or wall mounting

Product Highlights

The EATON V48M22T3716 is suitable for continuous operation at its rated kVA. Its ventilated design helps with heat dissipation, ensuring reliable performance.

Product Information

Standard Information

• Manufacturer: Eaton
• Brand: EATON

Technical Specifications

• Type: Dry Type Distribution
• Phase: 3 ph
• Primary Voltage: 480 V
• Secondary Voltage: 120/240 V
• Power Rating: 37.5 kVA
• Frequency Rating: 60 Hz
• Dimensions: 21.13 in L x 24.88 in W x 36.88 in H
• Insulation: 220 deg C
• Enclosure Type: NEMA 2/3R
• Mounting Type: Floor/Wall
• Number of Taps: 2 at +2.5%, 4 at -2.5%
• Temperature Rating: 150 deg C
