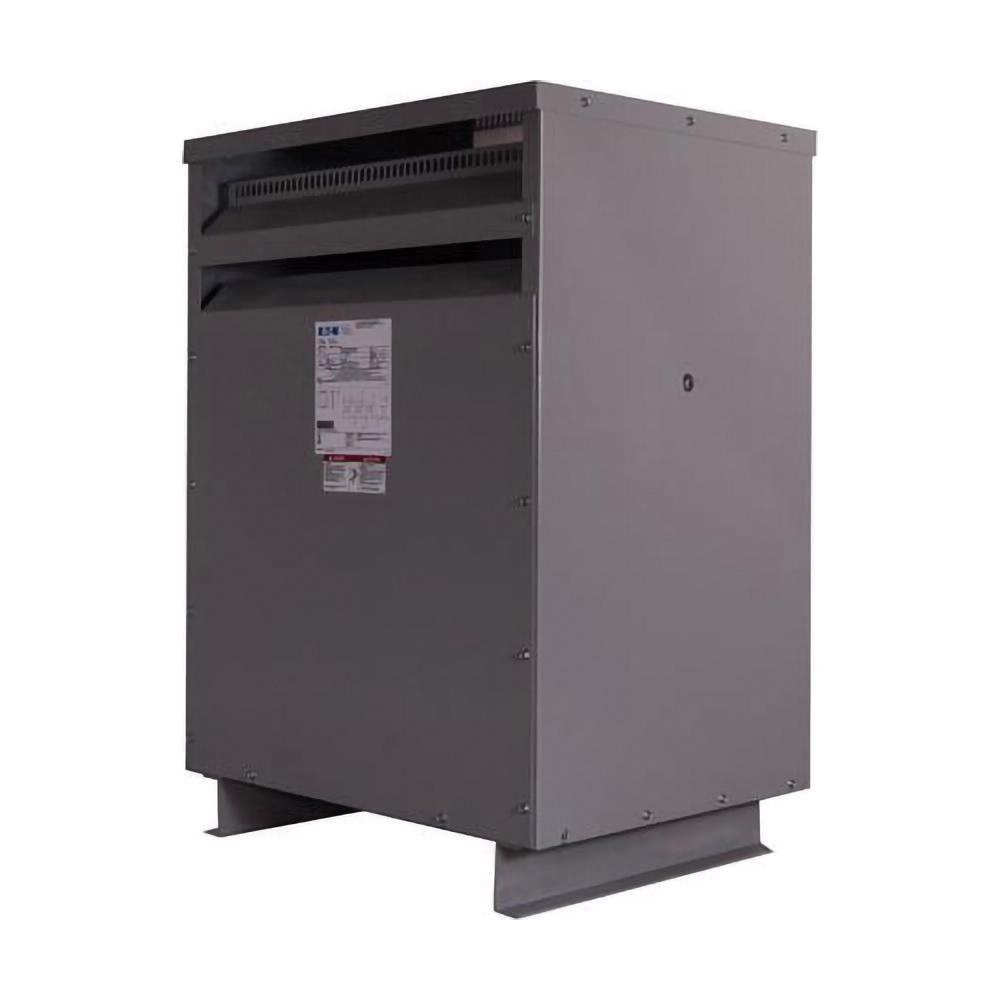

Eaton V48M22T1516 General Purpose Ventilated Transformer 15 kVA NEMA 2

Product Description

Eaton V48M22T1516 is a general purpose ventilated transformer designed for use in various applications. This transformer is suitable for continuous operation at its rated capacity. It features a self-cooled, two-winding design and is compliant with ANSI, NEMA, and IEEE standards.

• Type: DT-3 Energy Efficient
• Power Rating: 15 kVA
• Mounting Type: Wall

Product Highlights

This transformer model is energy efficient and features fungus-resistant varnished core and coil, making it suitable for various indoor and outdoor applications.

Product Information

Standard Information

• Catalog Number: V48M22T1516
• Brand: Eaton

Technical Specifications

• Country of Origin: Mexico
• Insulation Class: 220 Degrees C
• Phase: 3
• Primary Voltage: 480 V delta
• Secondary Voltage: 240 V delta, 120 V Midtap
• Frequency Rating: 60 Hz
• Temperature Rating: 150 Degrees C rise
• Special Features: Fungus-resistant varnished core and coil
• Enclosure: NEMA 2
• Application: For indoor/outdoor use
