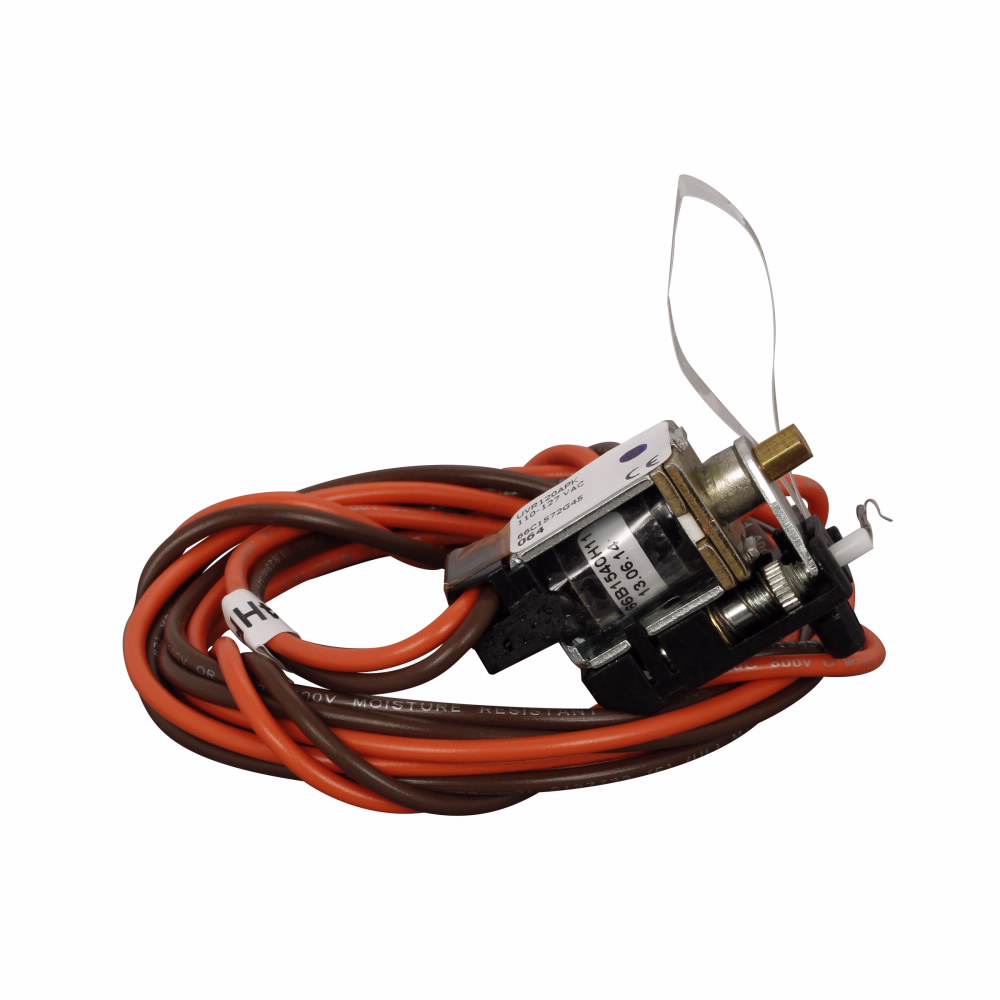

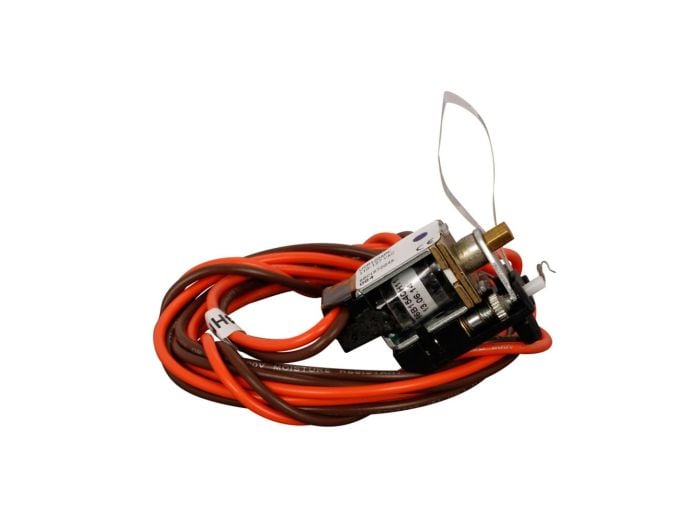

Eaton UVR120APK Undervoltage Release Mechanism 110-127 VAC REPLACEMENT MPN

Product Description

The Eaton UVR120APK is a molded case circuit breaker undervoltage release mechanism. Designed for EG-, JG- and LG-Frame, Frame J-K, Series G, this undervoltage release mechanism operates at 110-127 V and mounts on the left-hand side. It is suitable for commercial and institutional buildings.

• Molded case circuit breaker undervoltage release mechanism
• Voltage rating of 110-127V
• Left-hand mounting

Product Highlights

The Eaton UVR120APK undervoltage release mechanism is designed for circuit protection in commercial and institutional settings.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: UVR120APK

Technical Specifications

• GTiN: 00782116031900
• Type: Molded Case Circuit Breaker Undervoltage Release Mechanism
• Brand: Eaton
• Frame: Frame J-K
• Width: 3.1 in
• Height: 2.75 in
• Length: 5.5 in
• Voltage: 110-127 Volt
• Product UPC: 78211603190
• 12-Digit UPC: 782116031900
• Applications: Commercial / Institutional Buildings / Structures - Commercial / Institutional Buildings / Structures - Other
• Catalog Number: UVR120APK
• Product Length/Depth: 5.5 in
• Product Height: 2.75 in
• Product Width: 3.1 in
• Global Catalog: UVR120APK
• Product Type: Molded case circuit breaker accessory
• Used with: EG-, JG- and LG-Frame
• Voltage rating: 110-127V
• Frame size: Frame J-K
• Series: Series G
• Undervoltage release: Undervoltage release mechanism
• Mounting Method: Left
• Mounting hardware: Left-hand mounting
• Suitable For Use With: C Series Type EG, JG and LG K-Frame Molded Case Circuit Breaker
• Application: Circuit Protection, Commercial, Institutional Buildings and Structures Applications
• Order Interval: 1
• Catalog ID: C-HUVR120APK
• Dimensions: 5.5 in L x 3.1 in W x 2.75 in H
• Frequency Rating: 50/60 Hz
• Mounting Type: Left Pole
• Family Series: Eaton Circuit Breakers
• Manufacturer: Eaton
• Manufacturer Part Number: UVR120APK
• Description: E/J 110-127 (V) UNDER VOLTAGE RELEASE (LEFT POLE ONLY)
• Accessory Type: Undervoltage Release
• Net Weight: 0.3 lbs
• Gross Weight: 0.38 lbs
