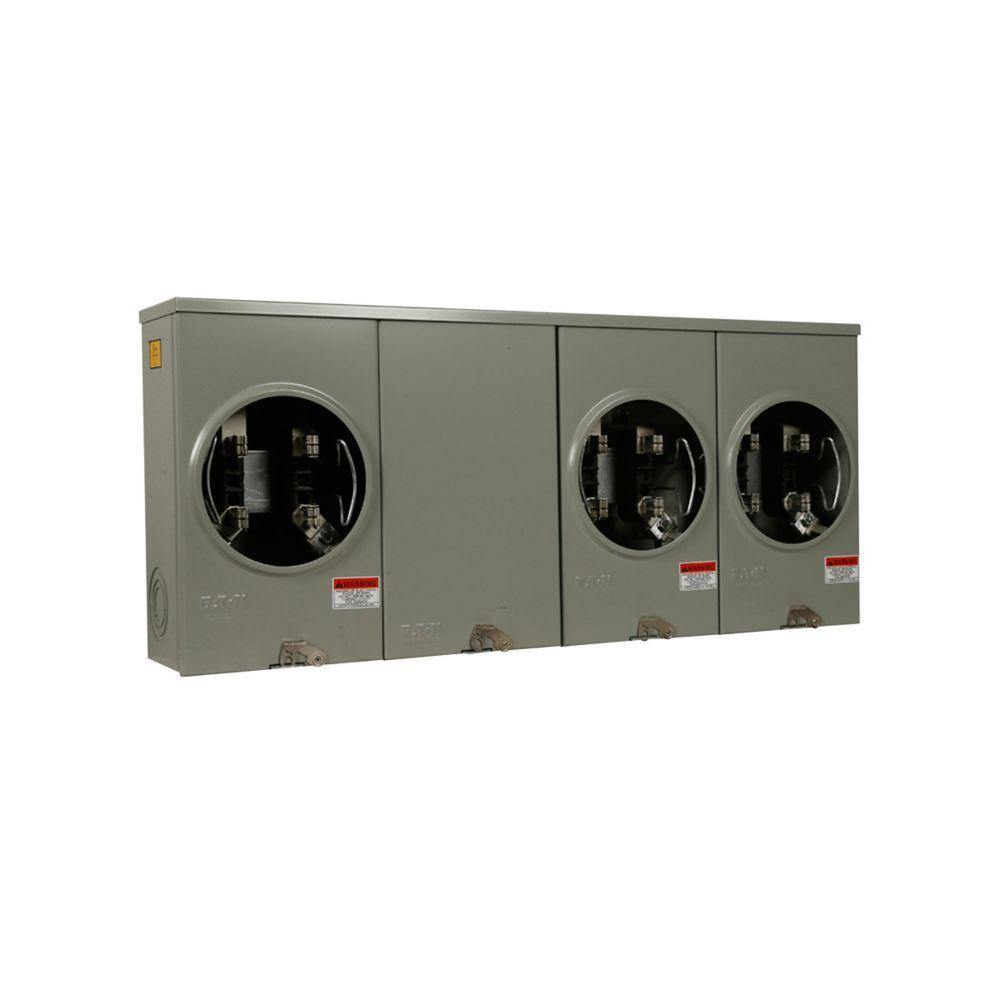

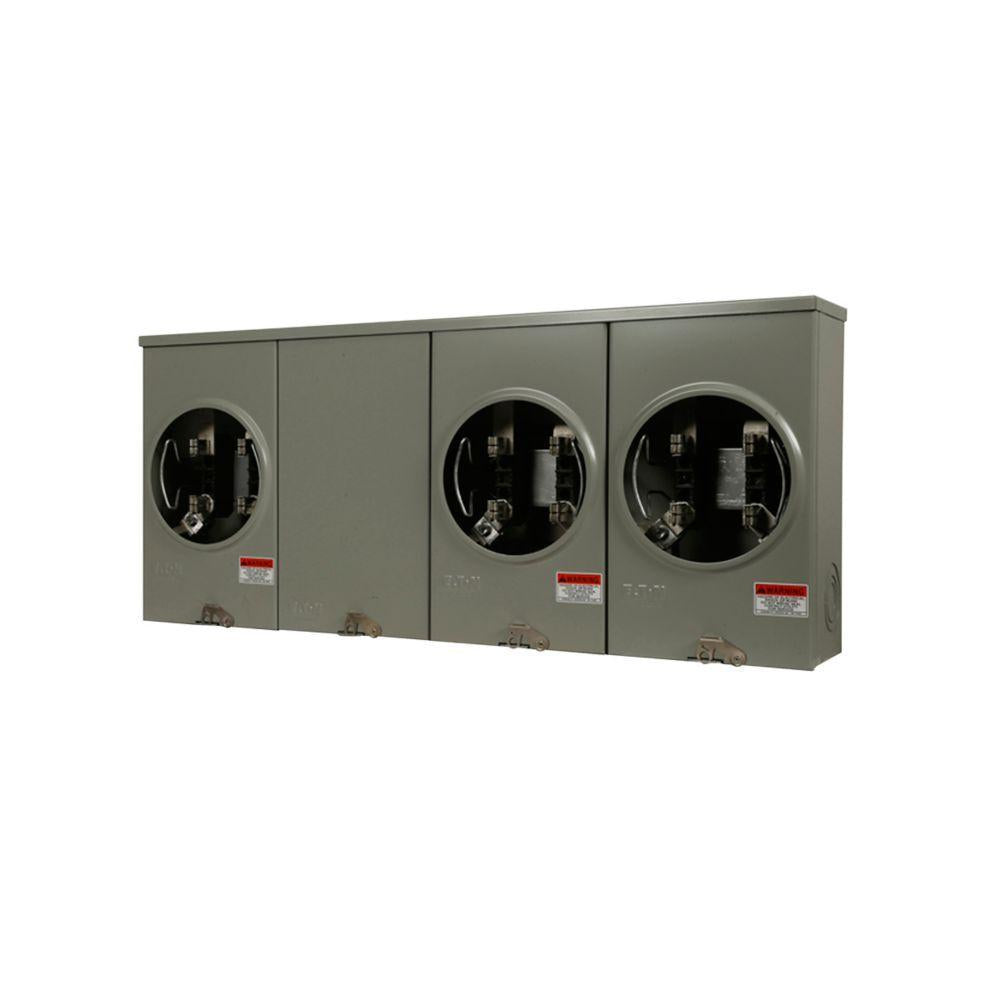

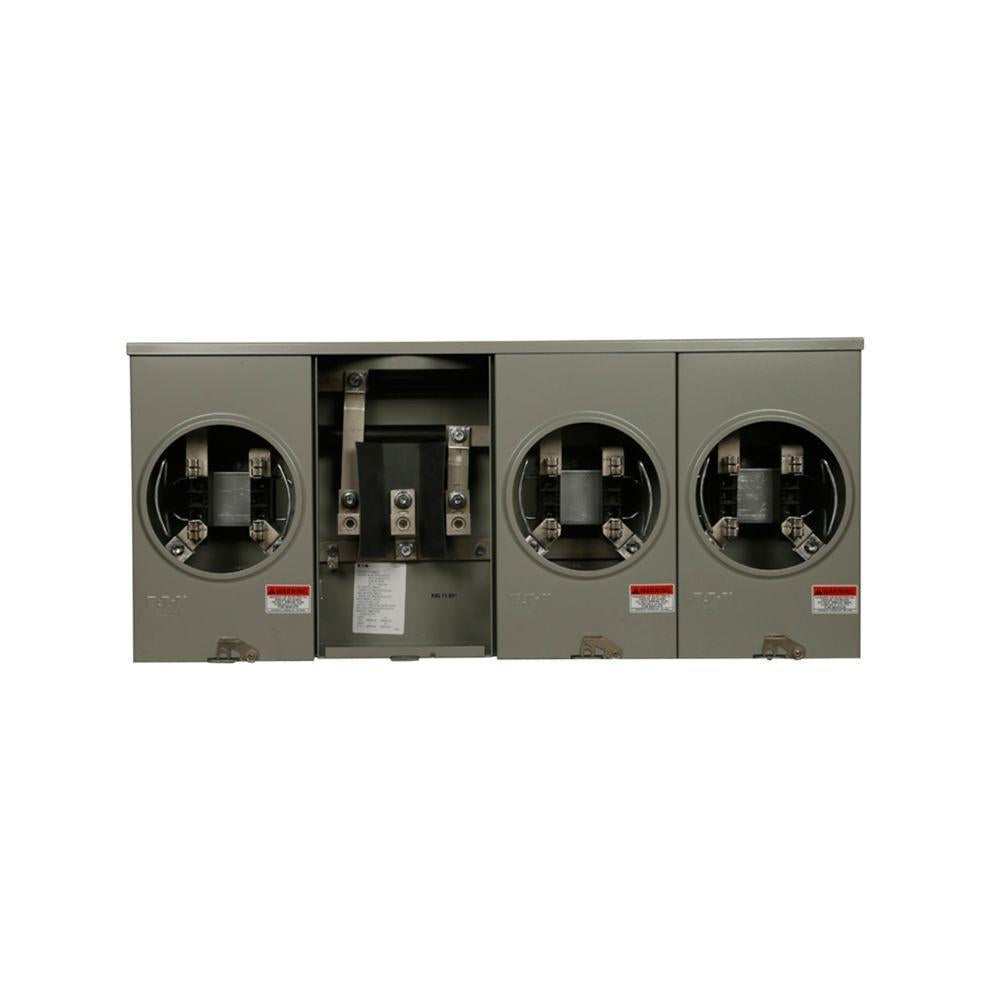

EATON UHT3R2332TCH 3-Position Horizontal Ganged Horn Bypass Triplex Ground Meter Socket 600 VAC 200 A

Product Description

EATON UHT3R2332TCH is a three-position horizontal ganged horn bypass triplex ground meter socket. This unit supports a voltage of six hundred VAC with a current rating of two hundred A. It is suitable for applications in residential and commercial settings.

• Supports multiple feed types; bottom, overhead, top, and underground.
• Includes four jaws designed for wire sizes from eight AWG to two hundred fifty kcmil.

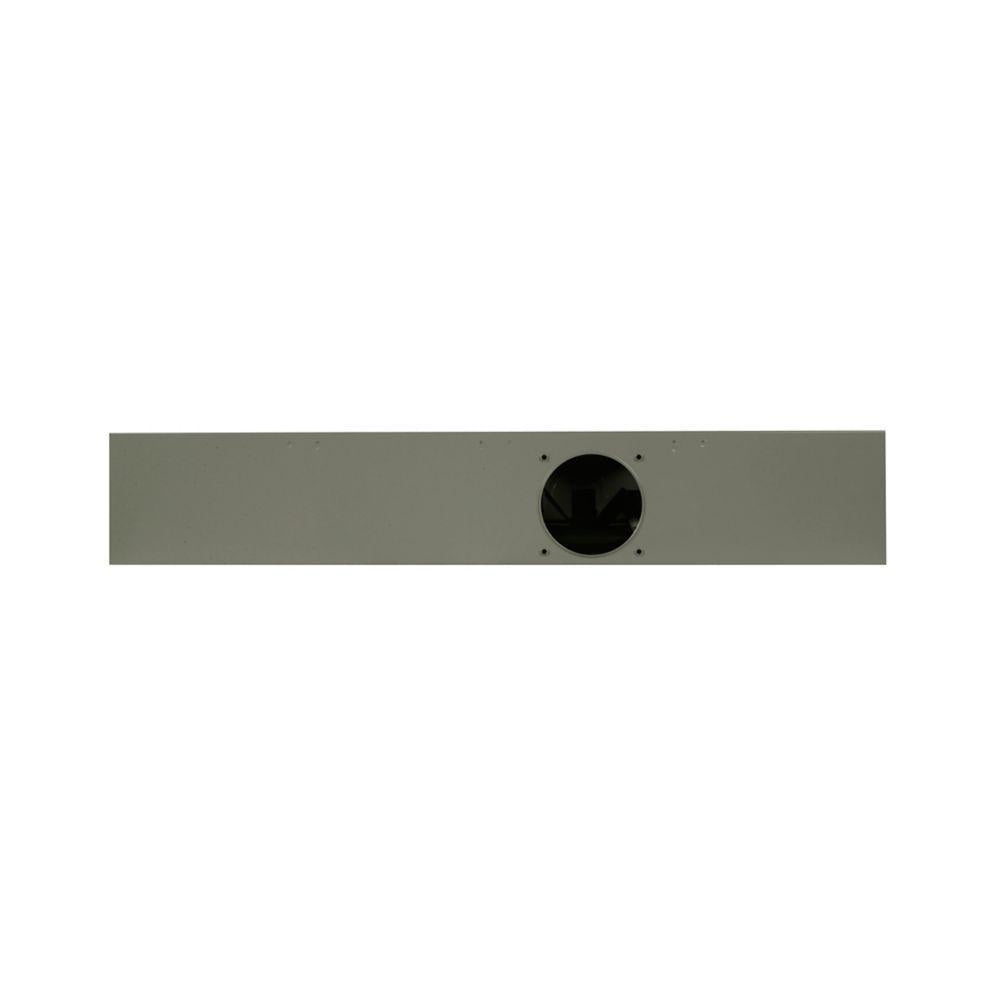

• Features a ringless cover and a large open hub design for ease of installation.

Product Highlights

This meter socket enhances electrical connections and installation efficiency, making it a practical choice for electricians.

Product Information

Standard Information

• Manufacturer: Eaton
• Part Number: UHT3R2332TCH EC

Technical Specifications

• Type: 3-Position Horizontal Ganged Horn Bypass Triplex Ground
• Phase: 1 ph
• Voltage Rating: 600 VAC
• Amperage Rating: 200 A
• Number of Jaws: 4
• Feed Type: Bottom/Overhead/Top/Underground
• Hub Size: 5 x 5 in
• Hub Type: Large Open
• Wire Size: 8 AWG to 250 kcmil, 6 AWG to 350 kcmil
• Cover Type: Ringless
• Dimensions: 5.38 in L x 32.94 in W x 14.13 in H
