Eaton UHT2R2332TCH MtrSkt 200A Ringless Horn Bypass

Product Description

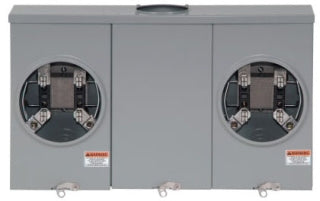

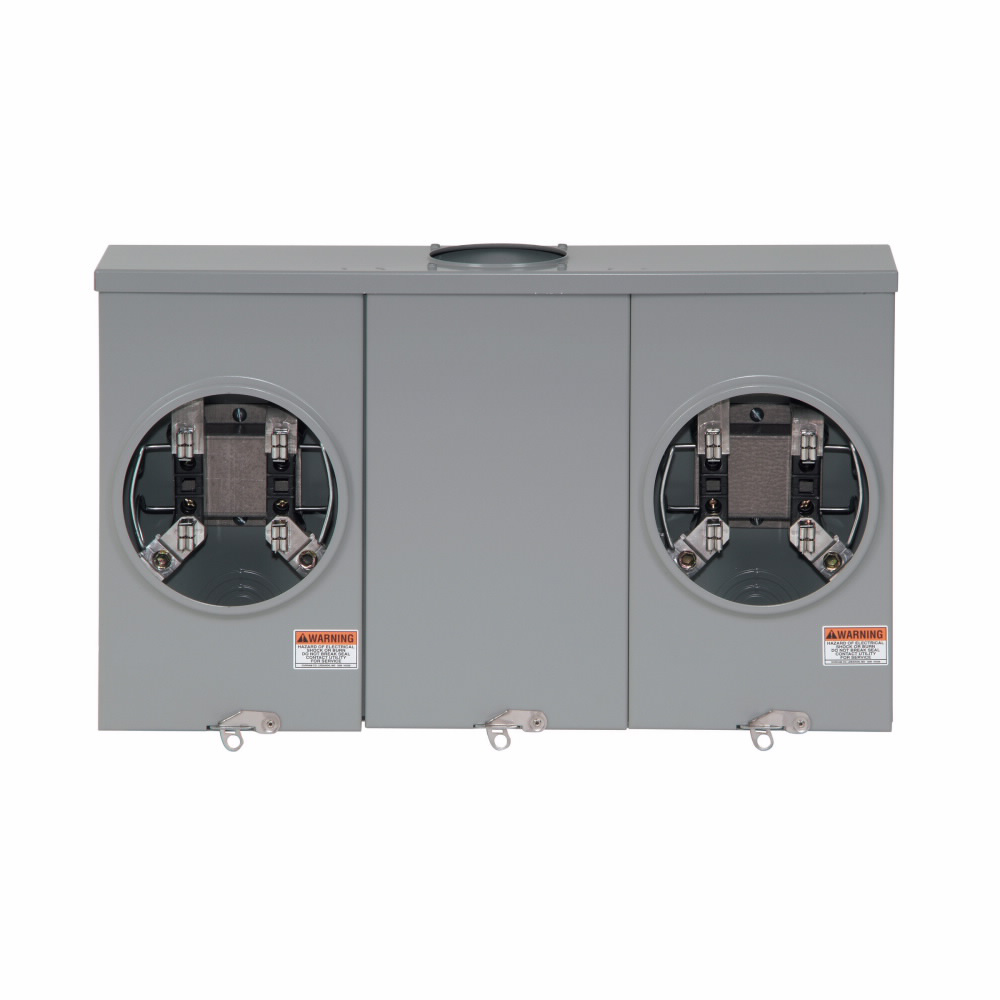

Eaton UHT2R2332TCH is a multi-position meter socket designed for residential use with a capacity of two hundred amps. It features a ringless design and horn bypass for convenient operation. This product is suitable for various applications such as temporary power setups and service entrances in residential buildings.

• Rated for 200 amps and 600 volts.
• Compatible with multiple feed types including bottom, top, and overhead.
• Equipped with four jaws for enhanced connectivity.

Product Highlights

The Eaton UHT2R2332TCH meter socket is utility approved and made in the USA, ensuring durability and reliability for electrical installations.

Product Information

Standard Information

• Brand: Eaton
• Manufacturer: Cutler-Hammer

Technical Specifications

• Catalog Number: UHT2R2332TCH
• Voltage Rating: 600 V
• Amperage Rating: 200 A
• Phase: 1
• Feed Type: Bottom, Top, Overhead
• Dimensions: 5.38 in Length x 15 in Width x 6.7 in Height
• Number of Jaws: 4
• Country of Origin: United States
