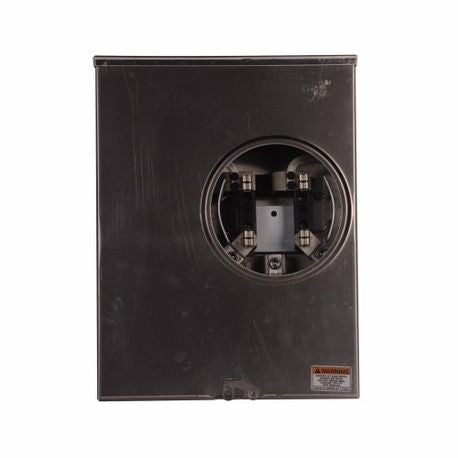

EATON UGTRS213CE 3-Wire 1-Position Residential Service Single Meter Socket 600 VAC 200 A 1 Phase

Product Description

The EATON UGTRS213CE is a 3-wire, 1-position residential service single meter socket designed for use in both residential and commercial applications. This socket can accommodate utility electrical watthour meters, offering versatility for different installations. It supports a voltage rating of up to six hundred volts alternating current and is suitable for one-phase systems. This product provides a reliable solution for energy management.

• Block assembly base exceeds four hundred inch-pounds of torque
• Integral triplex or quadplex ground extruded in neutral lug
• 100% plated bridge with four-point mounting

Product Highlights

This EATON meter socket is built for durability and ease of installation, making it an essential component for electrical systems.

Product Information

Standard Information

• Brand: EATON
• Manufacturer: EATON

Technical Specifications

• Type: 3-Wire 1-Position Residential Service
• Voltage Rating: 600 VAC
• Amperage Rating: 200 A
• Dimensions: 4.5 in L x 11.25 in W x 15.13 in H
• Wire Size: 6 AWG to 350 kcmil
• Hub Size: 3-5/16 in
• Phase: 1
• Cover Type: Ringless
• Terminal Type: Line/Load
• Number of Jaws: 5
• Standard & Approvals: ARRA Compliant, Buy American Act Compliant, RoHS Compliant, UL Listed
