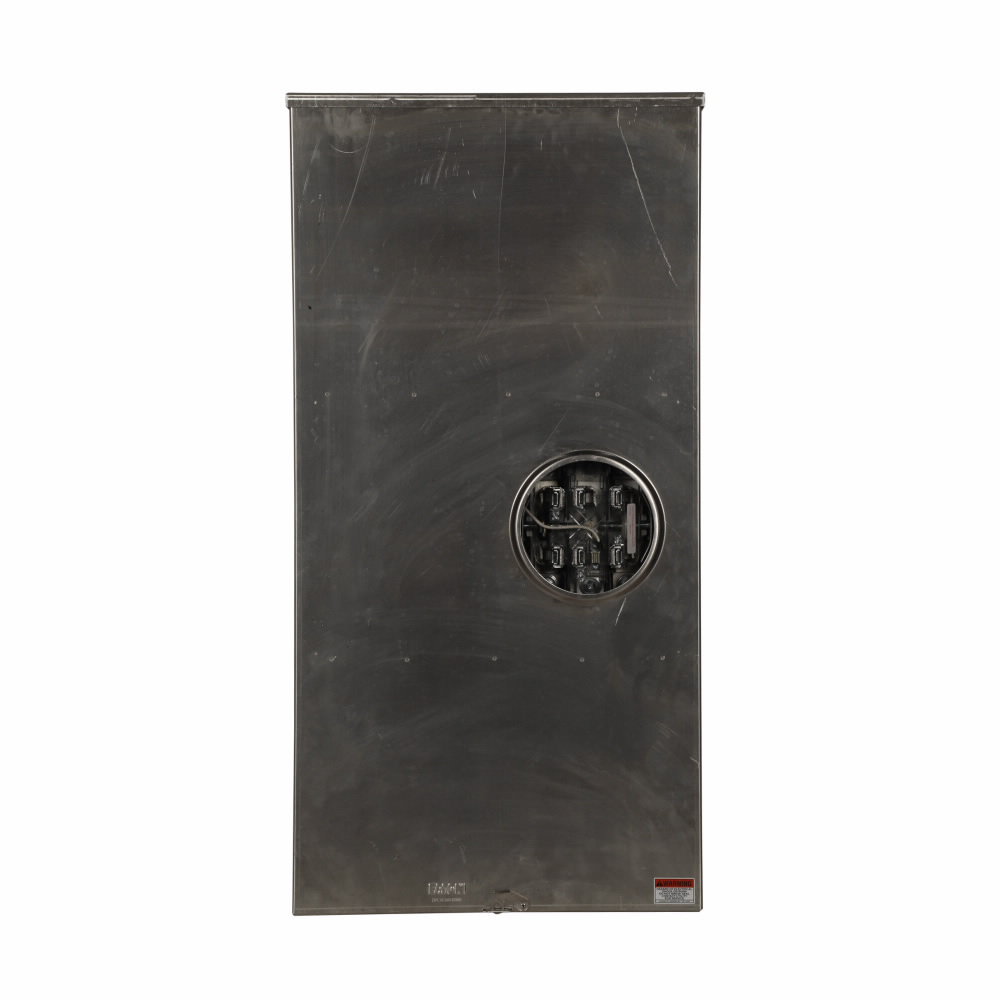

Eaton UFTH7330TCH MtrSkt 320A 4-Wire 1-Position

Product Description

The Eaton UFTH7330TCH Meter Socket is designed for both commercial and residential service. This socket accommodates a maximum of three hundred twenty amperes at six hundred volts. It features a four-wire configuration, making it suitable for various applications.

• Suitable for 320 amp and 600 VAC applications
• Includes a large hub measuring five inches by five inches
• Compliant with UL standards for safety

Product Highlights

The Eaton meter socket ensures a reliable electrical connection and easy installation with a ringless design. It features seven jaws for secure wiring and is constructed to provide durability over time.

Product Information

Standard Information

• Type: 4-Wire 1-Position
• Feed Type: Overhead/Underground

Technical Specifications

• Amperage Rating: 320 A
• Application: Commercial, Residential, Electrical Assemblies, Panels and OEMs Applications
• Cover Type: Ringless
• Dimensions: 6.5 in L x 20 in W x 39.88 in H
• Hub Size: 5 x 5 in
• Hub Type: Large Open
• Number of Jaws: 7
• Number of Wires: 4 Wire
• Number of Phases: 3 ph
• Voltage Rating: 600 VAC
• Standards/Approvals: UL Listed
• Terminal Type: Line/Load
