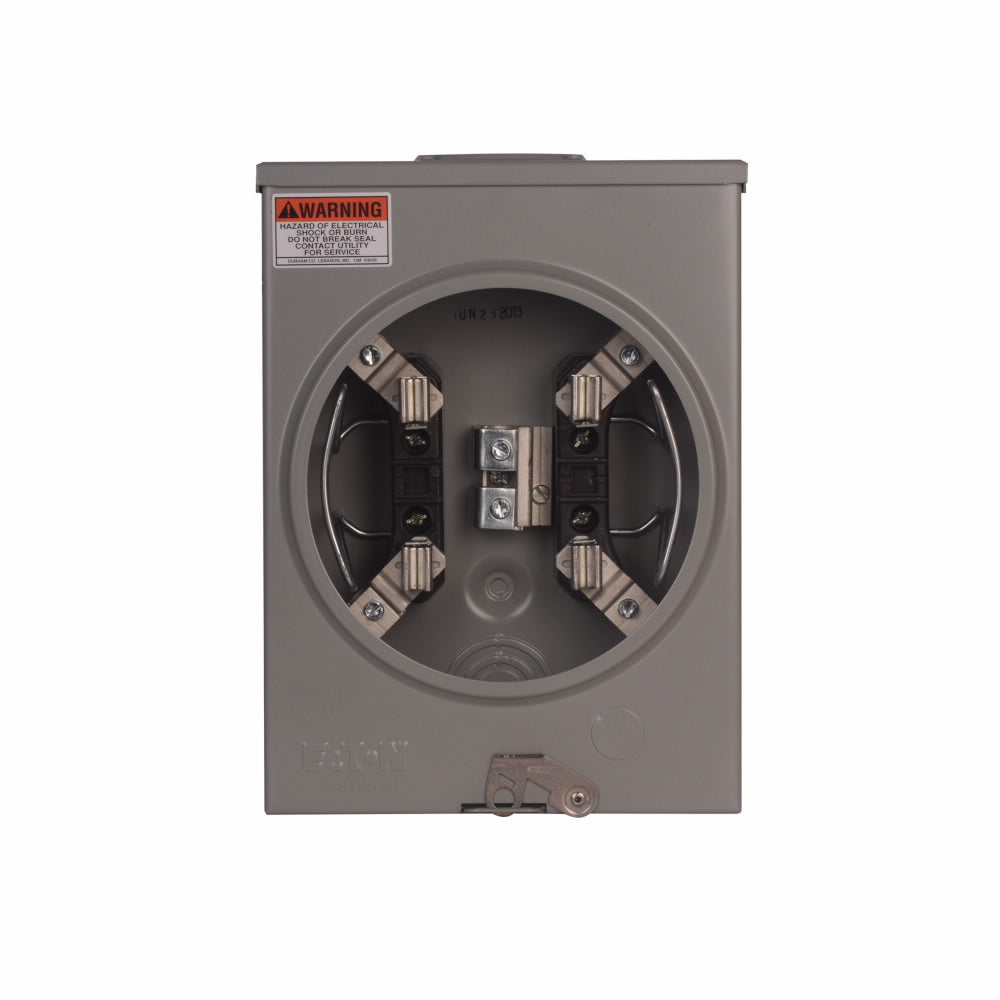

Eaton UFHTRS101BCH 3-Wire 1-Position Residential Service Meter Socket, 600 VAC, 125 A, 1 ph Phase

Product Description

Eaton UFHTRS101BCH is a 3-wire, one-position residential service meter socket designed for use in residential and commercial buildings. It operates at 600 VAC with a rating of 125 amps and is suitable for overhead feed applications. This meter socket features four jaws and accommodates wire sizes from eight to two aught American Wire Gauge.

• Rated for up to 200 kA interrupt with appropriate overcurrent protection devices
• Durable design with zinc-plated components for corrosion resistance
• Field-installable horn bypass kit for flexibility in installations

Product Highlights

This Eaton meter socket provides a complete solution for residential service needs while ensuring high durability and reliability. The one-piece die-cast enclosure is designed to prevent tampering and extend the life of the product.

Product Information

Standard Information

• Brand: Eaton
• Part Number: UFHTRS101BCH

Technical Specifications

• Amperage Rating: 125 A
• Voltage Rating: 600 VAC
• Cover Type: Ringless
• Feed Type: Overhead
• Dimensions: 3.5 in L x 8 in W x 10.88 in H
• Hub Size: 3-5/16 in
• Hub Type: Small Open
• Terminal Type: Line/Load
• Number of Jaws: 4
• Phase: 1 ph
• Standards/Approvals: UL Listed
