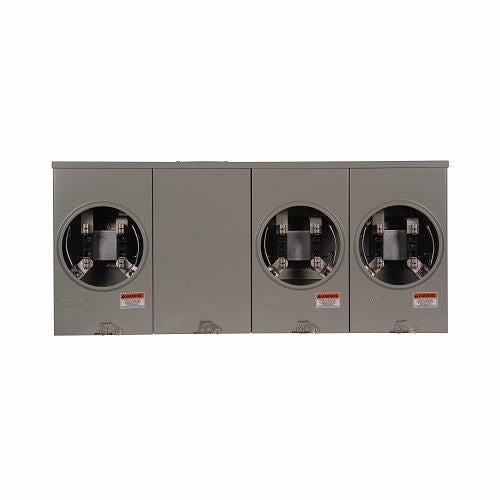

EATON UFHT3R2332TCH Meter Socket Multi Position 200 A 600 V

Product Description

The EATON UFHT3R2332TCH is a multi-position meter socket designed specifically for residential use. It has a rating of 200 amperes and operates at a maximum voltage of 600 volts AC. This single-phase socket features a four-jaw design with a ringless mechanism, enhancing its reliability and ease of installation. It supports both top and bottom feed options and includes a horn bypass.

• Multi-position design for residential services
• Rated for single-phase operations up to 600 volts AC
• Includes a ringless design with four jaws

Product Highlights

This meter socket is ideal for residential electrical service applications. Its multi-position capability allows for flexible installation while meeting various utility requirements.

Product Information

Standard Information

• Type: Multiple position residential service
• Amperage Rating: 200 A

Technical Specifications

• Feed Type: Top/bottom
• Number of Jaws: Four
• Phase: Single phase
• Utility Approvals: Various utilities including Alliant, Central Hudson, and First Energy
• Line Capacity: #6-350 kcmil
• Load Capacity: #8-250 kcmil
• Number of Wires: Three
• Hub Type: 5 x 5 hub opening
• Security: Ringless
• Voltage Rating: 600 V
• Bypass: Horn
• Number of Sockets: 3
• Product Length: 5.38 inches
• Product Height: 14.13 inches
• Product Width: 32.94 inches
• Product Weight: 52 lb
• Warranty: One year from installation or eighteen months from shipment
• Certifications: UL Listed
